Automatic Double Location Heat Transfer Press Manual
Model. No.: APDL-20/24
CONTENTS

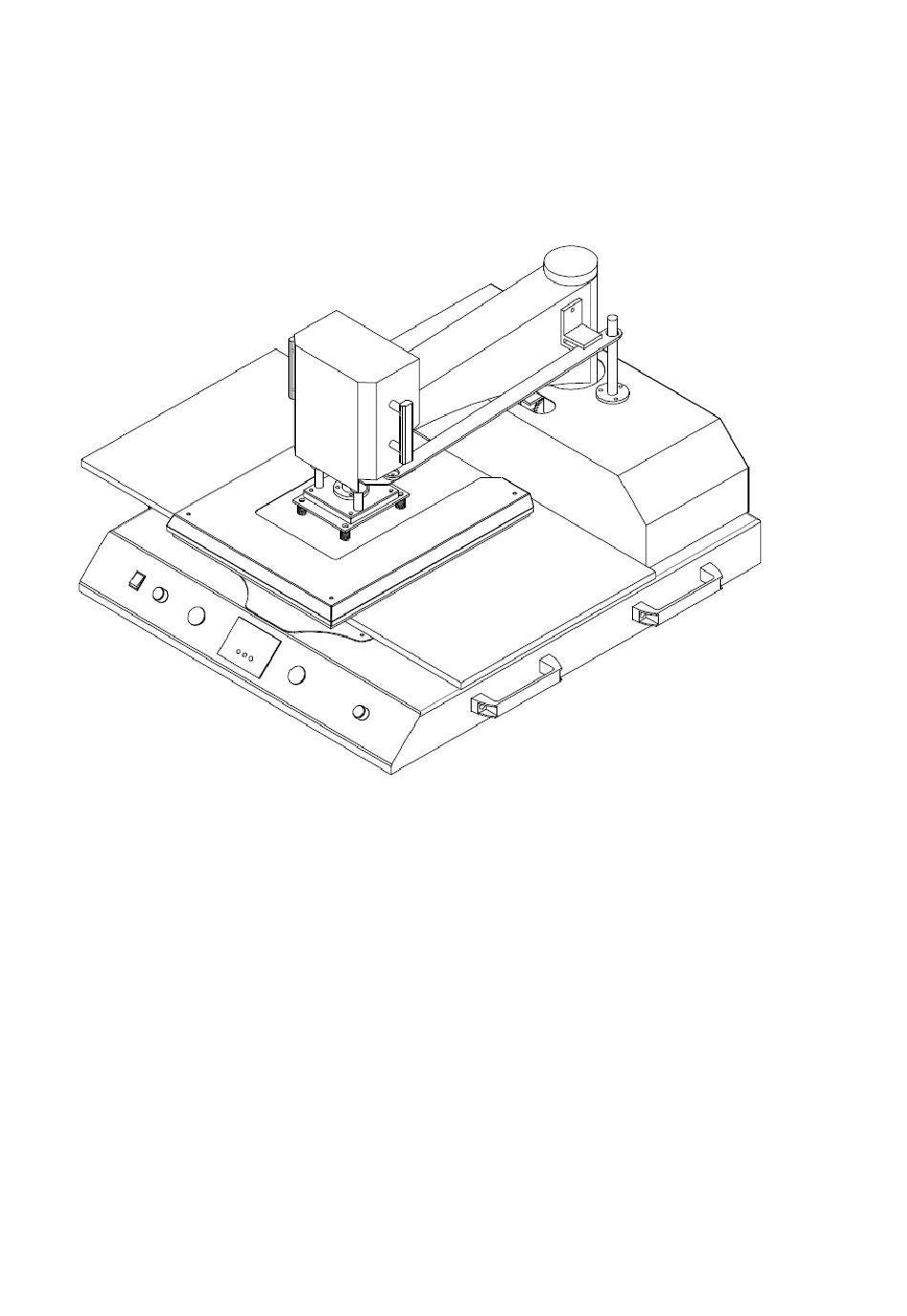

I. Assembly Drawing -----------------------------------------------------------------------------------2
II. Technical Parameters ------------------------------------------------------------------------------2
III. Operation Process -------------------------------------------------------------------------------3-4
IV. Maintenance -------------------------------------------------------------------------------------------5
V. Trouble Shooting For Transfer Print Quality-------------------------------------------------6
VI. Explosion View ---------------------------------------------------------------------------------------7
- 1 -
