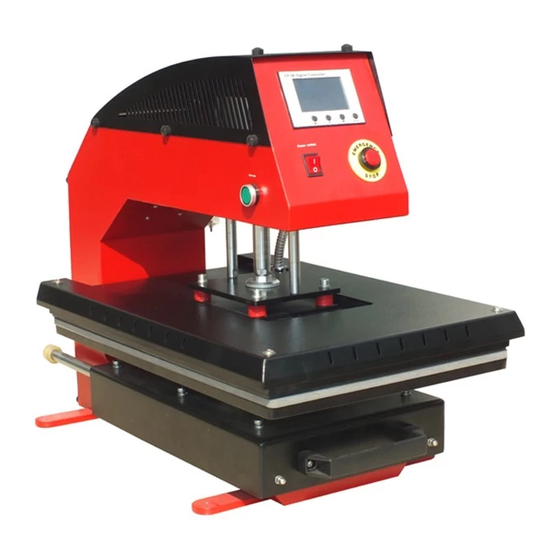

Pneumatic High Pressure
Draw-out Heat Press Manual
Model. No.: APD-20/24
CONTENTS

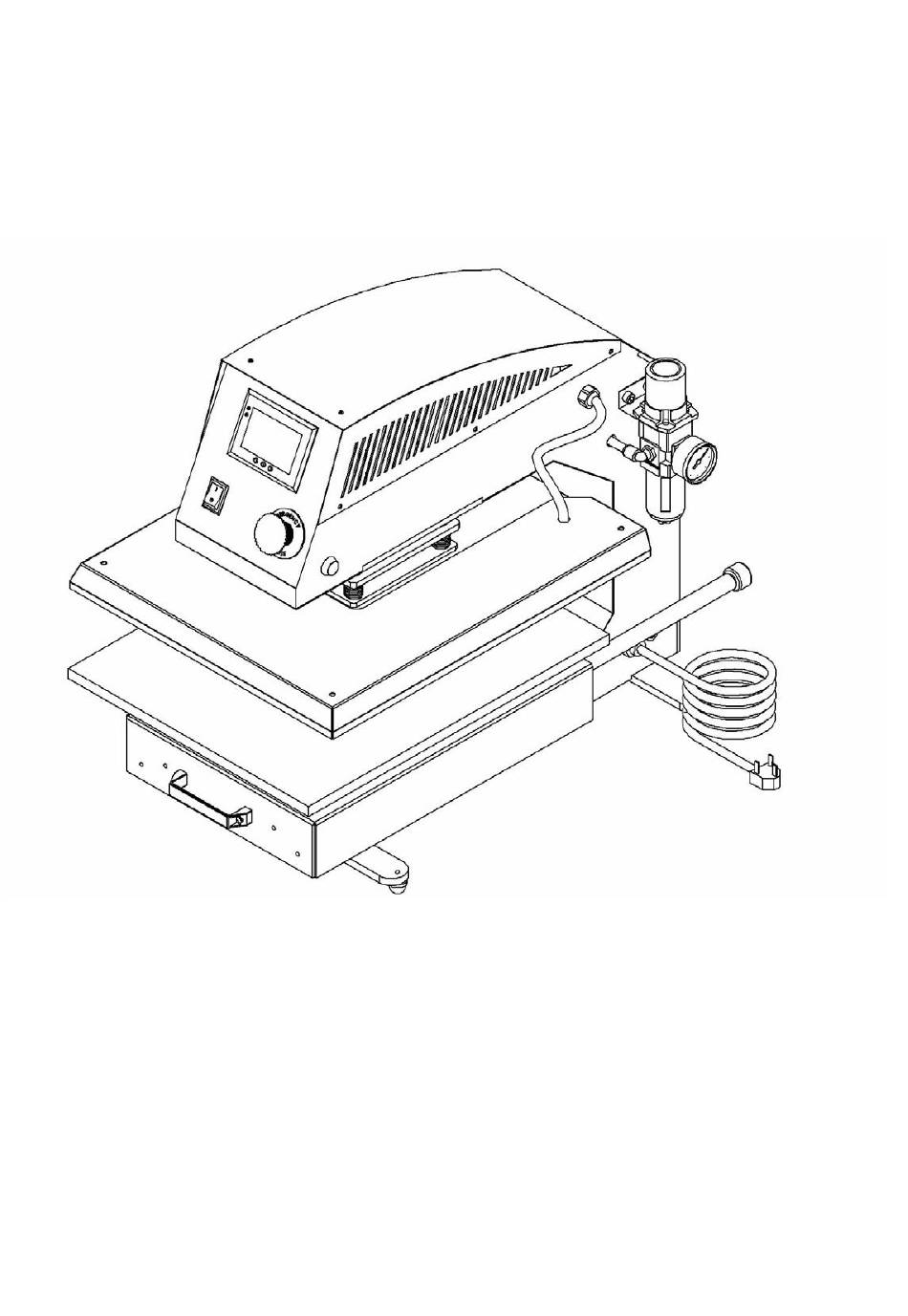

I. Assembly Drawing -----------------------------------------------------------------------------------2
II. Technical Parameters ------------------------------------------------------------------------------2
III. Operation Process -------------------------------------------------------------------------------3-4
IV. Maintenance ------------------------------------------------------------------------------------------5
V. Trouble Shooting For Transfer Print Quality------------------------------------------------5
VI. Circuit Diagram -------------------------------------------------------------------------------------6
VII. Explosion View ----------------------------------------------------------------------------------7-8
- 1 -
Advertisement
Table of Contents
Related Manuals for Microtec APD-20
Summary of Contents for Microtec APD-20
- Page 1 Pneumatic High Pressure Draw-out Heat Press Manual Model. No.: APD-20/24 CONTENTS I. Assembly Drawing -----------------------------------------------------------------------------------2 II. Technical Parameters ------------------------------------------------------------------------------2 III. Operation Process -------------------------------------------------------------------------------3-4 IV. Maintenance ------------------------------------------------------------------------------------------5 V. Trouble Shooting For Transfer Print Quality------------------------------------------------5 VI. Circuit Diagram -------------------------------------------------------------------------------------6 VII. Explosion View ----------------------------------------------------------------------------------7-8...
- Page 2 ⑦ Slide Rail ⑧ Air Pressure Adjust Knob ⑨ Air Filter II. Technical Parameters 1. Model No.: APD-20/40 2. Machine Dimensions: 810*410*625mm 3. Heat Platen Size: 40x50cm/ 40x60cm 4. Printable Articles Max Size: 400*600*10mm 5. Voltage: 220V/ Single Phase; 120V/ Single Phase 6.
- Page 3 III. Operation Process 1. How to adjust the pressure: 1. Connect the heat press with air compressor or air sources. 2. Lift up the cap of air valve as the picture shown 3. Revolve the cap anticlockwise, the air pressure goes down; contrariwise, the air pressure goes up; when you finish the pressure adjustment, push down the cap.
- Page 4 4. Printing methods Step 1: Make sure the cord is connected well to the wall socket. Place the object (i.e. T-shirt) on press bed, and transfer paper with images facing down the object, adjust pressure to your requirement, and turn on the power.
- Page 5 IV. Maintenance 1. No action after turn on the machine 1). Check the plug whether it connects well or whether it is broken. 2). Check the power switch or digital controller whether it is broken. 3). Check the fuse whether it has been burnt out. 4).
- Page 6 VI. Circuit Diagram KO: Power switch K1: Start Switch FU: Fuse(240V/15A, 120V/20A) SJ: GY-04 Digital Controller HD: Pneumatic Controller J1: Industrial Relay J2: Intermediate Relay Contacts L1: Indicator Light D: Pneumatic Valve EH1-EH2: Heating Pipe A-B: Thermocouple T1(T2): AC/DC Transformer P: Emergency Stop Button - 6 -...
- Page 7 VII. Explosion View - 7 -...
- Page 8 Anti-scald protect metal cover Part Name Power Cord Heat Platen 40x50 cm Fuse Heat Platen 40x60 cm Back Cover Under Plate Draw-out Handle Air Cylinder Electronic Cover Slide Rail Lock Nut Slide Rail Mat Fixing Pillar Rubber Feet Washer Machine Frame Controller Cover Air Valve GY-04 Digital Controller...
