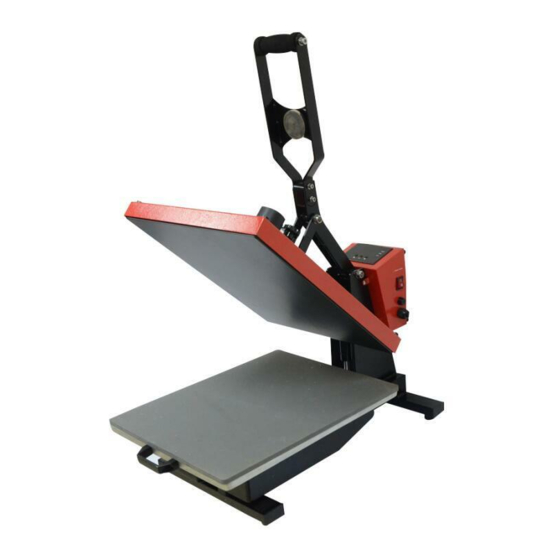

Plain Heat Press Manual
Plain Heat Press Manual
Model. No.: UHP-15/20MS
CONTENTS
I. Assembly Drawing ---------------------------------------------------------------------------------2
II. Technical Parameters ------------------------------------------------------------------------------2
III. Operation Process -------------------------------------------------------------------------------3-4
IV. Maintenance ------------------------------------------------------------------------------------------5
V. Trouble Shooting For Transfer Print Quality-----------------------------------------------5
VI. Circuit Diagram -------------------------------------------------------------------------------------6
VII. Explosion View ----------------------------------------------------------------------------------7-8
- 1 -
Advertisement
Table of Contents
Related Manuals for Microtec UHP-15MS
Summary of Contents for Microtec UHP-15MS
-
Page 1: Table Of Contents
Plain Heat Press Manual Plain Heat Press Manual Model. No.: UHP-15/20MS CONTENTS I. Assembly Drawing ---------------------------------------------------------------------------------2 II. Technical Parameters ------------------------------------------------------------------------------2 III. Operation Process -------------------------------------------------------------------------------3-4 IV. Maintenance ------------------------------------------------------------------------------------------5 V. Trouble Shooting For Transfer Print Quality-----------------------------------------------5 VI. Circuit Diagram -------------------------------------------------------------------------------------6 VII. Explosion View ----------------------------------------------------------------------------------7-8 - 1 -... -

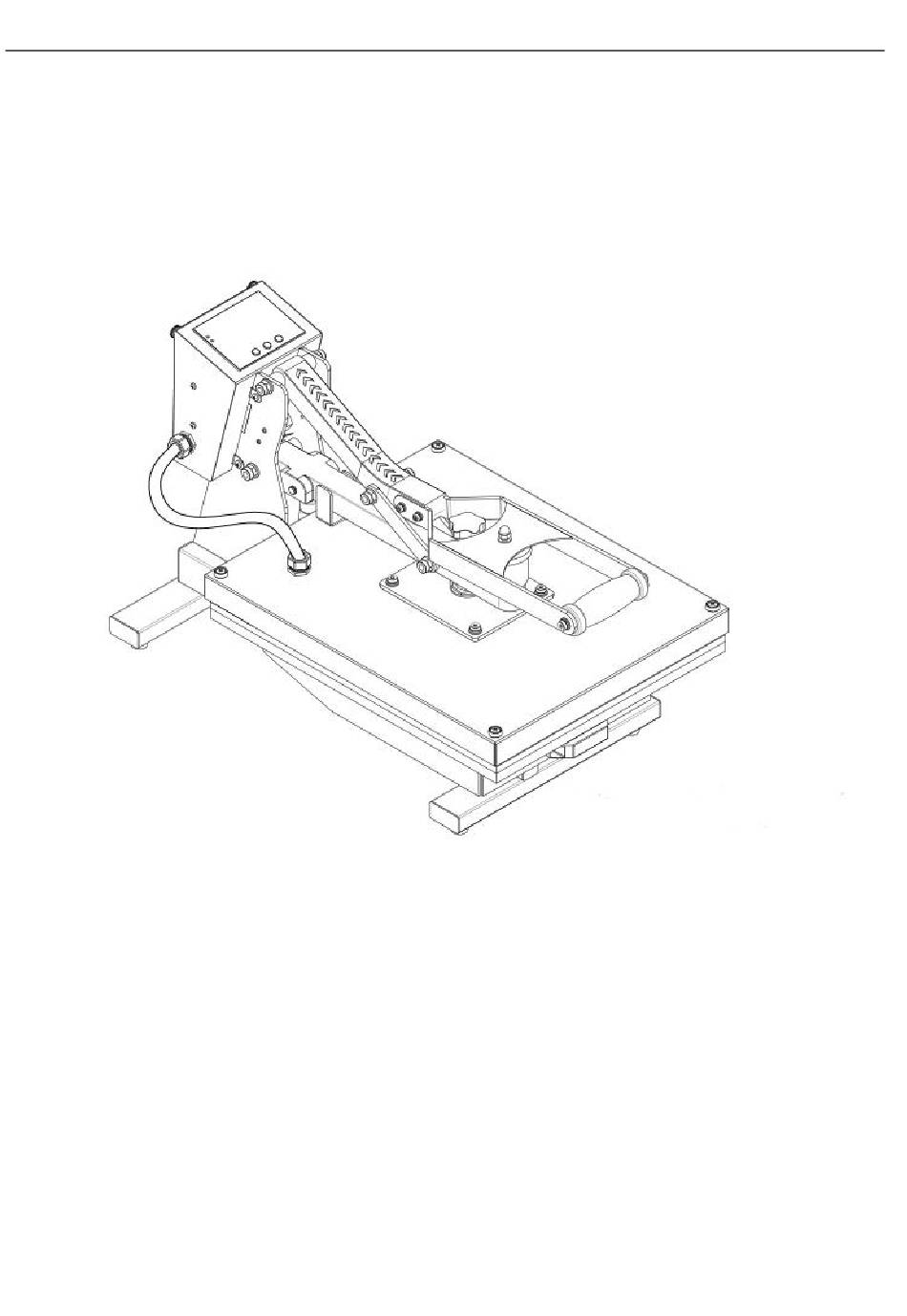

Page 2: Assembly Drawing
Plain Heat Press Manual I. Assembly Drawing II. Technical Parameters 1. Model No.: UHP-15/20MS 2. Machine Dimensions: 706*410*433mm 3. Heat Platen Size: 38x38cm/ 40x50cm 4. Printable Articles Max Size: 400*500*10mm 5. Voltage: 220V/1 Phase; 120V/1 Phase 6. Power: 220V/1.8KW 7. Recommend Setting: 30~280s; 180~210℃. Time Range: 0~999s Maximum Temp: 225°C - 2 -... -
Page 3: Operation Process
Plain Heat Press Manual III. Operating Process Turn on power switch, temperature Press button, the temp light Press button, the light is light is ON. The digital display shows on (C denotes Celsius). Press is ON. Press Up “△” or Down “▽” arrows “△”... - Page 4 Plain Heat Press Manual Down button“▽”to set to -20, and then press button 5 seconds return to operation mode 3. Printing methods Step 1: Make sure the cord is connected well to the wall socket. Lift up the handle to open the press. The press should always be in the open position when the press is heating.
-
Page 5: Maintenance
Plain Heat Press Manual the shirt, adjust the height to less pressure, then press. 6) Heat platen may pivot slightly back and forth rotationally. This is due to movement allowance within the clamp assembly, and is normal. IV. Maintenance 1. No action after turn on the machine 1). -
Page 6: Circuit Diagram
Plain Heat Press Manual long enough / or poor quality transfer paper. 4. If transfer paper stick to the object after transfer: the temperature is too high/ or poor quality printing ink. VI. Circuit Diagram FU:Fuse Transformer Power Switch :Heating Pipe Controller R1:Relay SJ: Digital - 6 -... -
Page 7: Explosion View
Plain Heat Press Manual VII. Explosion View - 7 -... - Page 8 Plain Heat Press Manual PWB-M3 Parts Name Drawer Handle Machine Base 1 Sliding Rod Machine Base 2 PWB-M4 Pillar Plain Mat 28*8.5 Rubber Foot M4 Hex Screw Base Plate Under Plate38*38 Strengthen Pillar Electric Box Panel M6 Hexagon Socket Screw Electric Box Cover Left Strengthen Base Plate Electric Box Cover Right...
