Microtec SA-15 Manual

Sewing away heat press machine
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

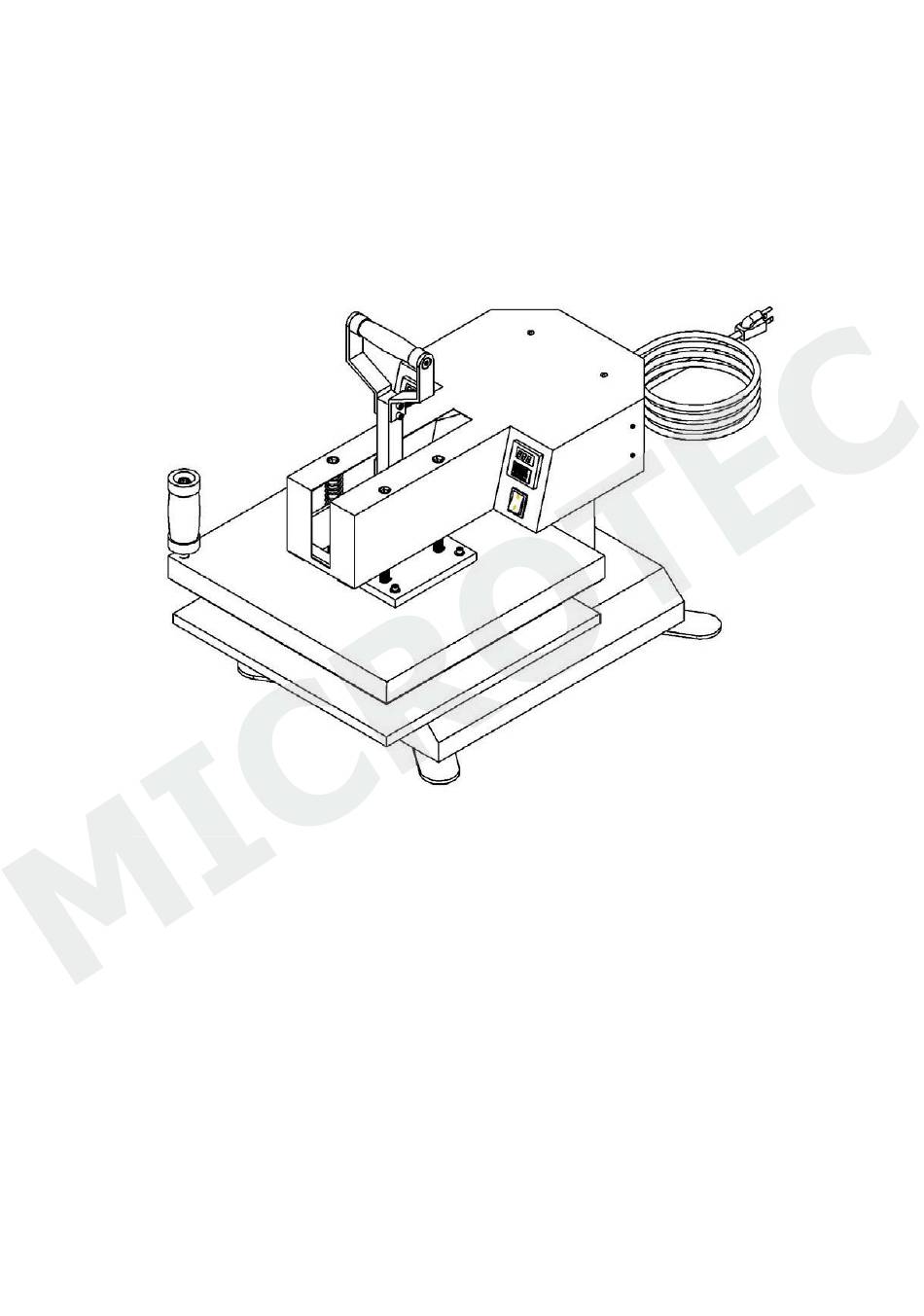

Swing Away Heat Press Machine Manual
CON
CONTEN
CONTENTS
I. Assembly Drawing -----------------------------------------------------------------------------------2
II. Technical Parameters ------------------------------------------------------------------------------2
III. Operation Process -------------------------------------------------------------------------------3-4
IV. Maintenance ------------------------------------------------------------------------------------------5
V. Trouble Shooting For Transfer Print Quality------------------------------------------------5
VI. Circuit Diagram -------------------------------------------------------------------------------------6
VII. Explosion View ----------------------------------------------------------------------------------7-8
Model NO.: SA-15/20/24
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-15 and is the answer not in the manual?

Questions and answers

Related Manuals for Microtec SA-15

Summary of Contents for Microtec SA-15

  • Page 1 Swing Away Heat Press Machine Manual Model NO.: SA-15/20/24 CONTENTS CONTEN I. Assembly Drawing -----------------------------------------------------------------------------------2 II. Technical Parameters ------------------------------------------------------------------------------2 III. Operation Process -------------------------------------------------------------------------------3-4 IV. Maintenance ------------------------------------------------------------------------------------------5 V. Trouble Shooting For Transfer Print Quality------------------------------------------------5 VI. Circuit Diagram -------------------------------------------------------------------------------------6 VII. Explosion View ----------------------------------------------------------------------------------7-8...
  • Page 2 Fuse Fuse Pressure Adjuster II. Technical Parameters II. Technical Parame Technical Para 1. Model No.: SA-15/20/24 1. Model No.: SA-1 1. Model No.: S 2. Machine Dimension: 630*325*390mm/ 630*325*520mm/630*325*620mm 2. Machine D 2. Machine D 3. Heat Platen Size: 15 x 20’’,16''x20'',20”x24”(38 x 38,40x50,40x60cm) 3.
  • Page 3 III. Operation Process 1. Set temperature required Reduce Temp Increase Temp ase Temp Time Temp The meter on the left side is timer, Power on, the display shows Then set the moderate temperatue Then set the moderate tempe Then set the moderate temp and the one on the right hand is the Centigrade.
  • Page 4 3. Printing methods Setp 1: Make sure the cord is connected well to the wall socket. Place the object (i.e. T-shirt) on press bed, and tranfer paper with images facing down the object, adjust pressure to your requirement, and turn on the power.
  • Page 5 IV. Maintenance 1. No action after turn on the machine 1). Check the plug whether it connects well or whether it is broken. 2). Check the power switch or digital controller whether it is broken. 3). Check the fuse whether it has been burnt out. 4).
  • Page 6 VI. Circuit Diagram FU:Fuse : Power Switch : Power Switch : Power Switc SA:Litmit Switch :Heating Pipe R1:Relay ST: Thermocouple ST: Thermo KJ: Time Relay SSR: Solid State Relay L1: Time Indicator L1: Tim L2: Temperature Indicator HA: Buzzer X1: Terminal - 6 -...
  • Page 7 VII. Explosion View Serial Support Pillar Parts Name Name Inner Hexagonal Screw Machine Base Adjusting Gear - 7 -...
  • Page 8 Under Plate Fuse Heat Platen Power Cord Heat Platen Metal Cover Relay Pillar Power Switch Pillar Shaft Fixing Piece Spring Rubber Rod Davit Arm Power Switch Time & Temp Controller 6061 Machine Bearing Fixing Axis 51102 Machine Bearing Roller Adaptting Plate Machine Bearing Pillar Fixing Piece...

This manual is also suitable for:

Sa-24Sa-20
