SENKO Auto Open Heat Press Manual
Model No.:SENKO-15A/20A
CONTENTS
I. Assembly Drawing -----------------------------------------------------------------------------------1
II. Technical Parameters ------------------------------------------------------------------------------2
III. Operation Process -------------------------------------------------------------------------------3-4
IV. Maintenance ------------------------------------------------------------------------------------------5
V. Trouble Shooting For Transfer Print Quality------------------------------------------------5
VI. Circuit Diagram -------------------------------------------------------------------------------------6
VII. Explosion View ----------------------------------------------------------------------------------7-8
- 1 -
Advertisement
Table of Contents
Related Manuals for Microtec SENKO-15A
Summary of Contents for Microtec SENKO-15A
-
Page 1: Table Of Contents
SENKO Auto Open Heat Press Manual Model No.:SENKO-15A/20A CONTENTS I. Assembly Drawing -----------------------------------------------------------------------------------1 II. Technical Parameters ------------------------------------------------------------------------------2 III. Operation Process -------------------------------------------------------------------------------3-4 IV. Maintenance ------------------------------------------------------------------------------------------5 V. Trouble Shooting For Transfer Print Quality------------------------------------------------5 VI. Circuit Diagram -------------------------------------------------------------------------------------6 VII. Explosion View ----------------------------------------------------------------------------------7-8 - 1 -... -

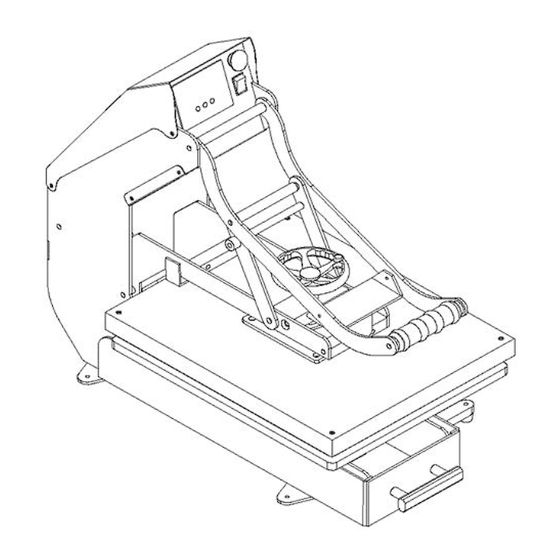

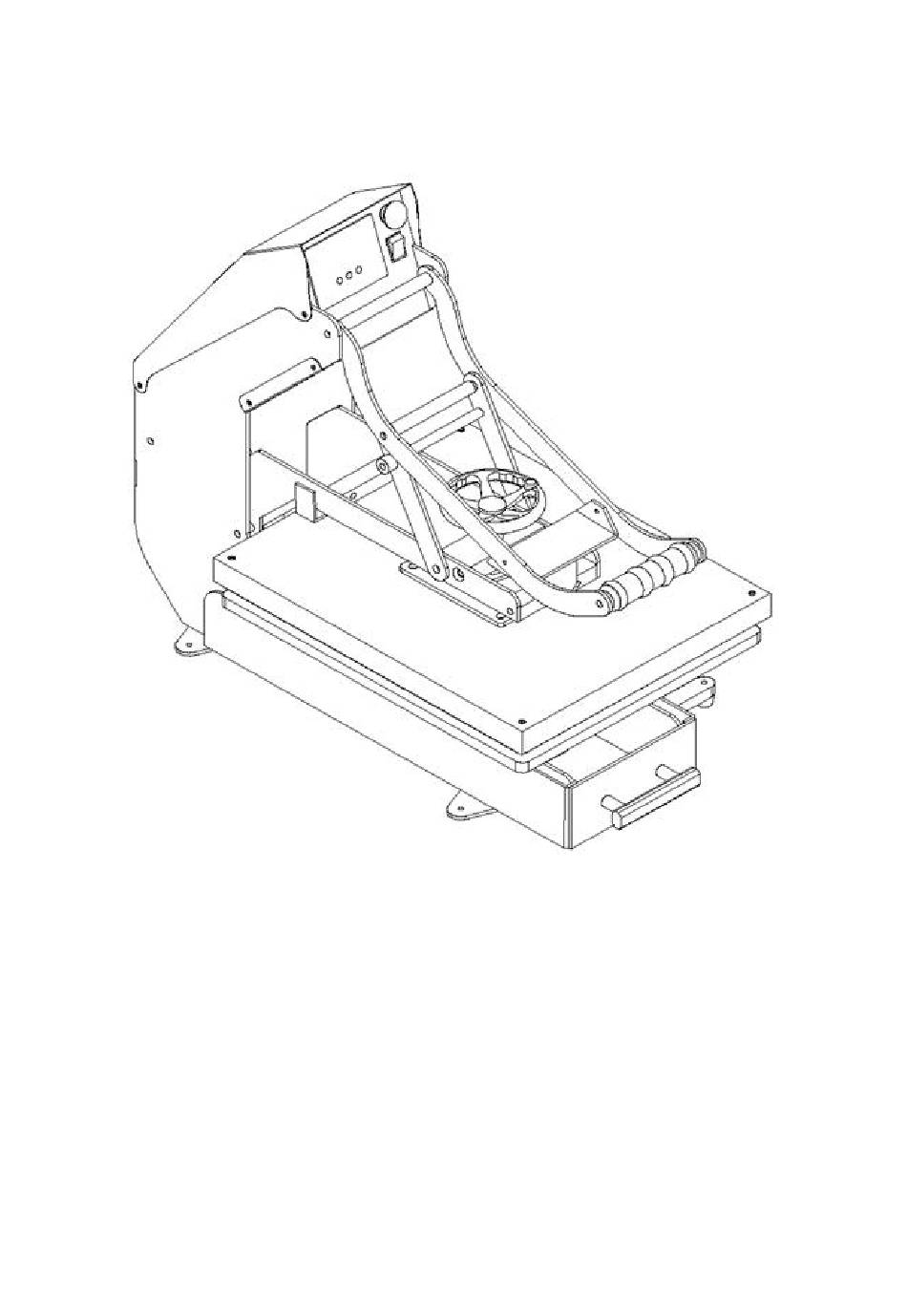

Page 2: Assembly Drawing
○ 5 Machine Foot ○ 6 Electromagnet ○ 7 Electrical Parts Bracket II. Technical Parameters 1. Model No.: SENKO-15A/20A 2. Machine Dimensions: 780*680*400mm 3. Heat Platen Size : 15’’X15’’, 16’’x20’’ (38*38cm,40*50cm) 4. Printable Articles Max Size: 400*500*10mm 5. Voltage: 220V/1Phase; 120V/1Phase 6. -
Page 3: Operation Process
III. Operation Process 1. Set temperature required Turn on power switch, temperature Press button, the temp light Press button, the light is light is ON. The digital display shows on (C denotes Celsius). Press is ON. Press Up “△” or Down “▽” arrows “△”... - Page 4 heat platen temperature is 200 °C but the display shows 180°C, press Down button“▽”to set to -20, and then press button 5 seconds return to operation mode 3. Printing methods Setp 1: Make sure the cord is connected well to the wall socket. Place the object (i.e. T-shirt) on press bed, and tranfer paper with images facing down the object, adjust pressure to your requirement, and turn on the power.
- Page 5 NOTE: 1) Please switch off the machine and unplug the power cord when the machine is not in use. 2) The heat platen will cool down to the room temperature, if heat press stays unuse for more than 30 minutes. 3) The heat-releasing fan will automatically starts when the temeprature of heat platen reachs 80 degree C (176 degree F).
-
Page 6: Maintenance
IV. Maintenance 1. No action after turn on the machine 1). Check the plug whether it connects well or whether it is broken. 2). Check the power switch or digital controller whether it is broken. 3). Check the fuse whether it has been burnt out. 4). -
Page 7: Circuit Diagram
VI. Circuit Diagram Ko.: Power switch C:Magnet K2: Limit Switch T:Transformer FU: Fuse R1: Relay EH1 EH2: Heat Pipe MD:Magnet Driver SJ: Digital Controller - 7 -... -
Page 8: Explosion View
VII. Explosion View Connecting Piece Serial No. Part Name Welded Plate Electromagnet Machine Foot Magnatic Suck Plate Machine Frame Handle Bar Grip Compression Spring Press Adjustment Gear Slide Rail Electrical Parts Bracket Heat Platen Cover Back Cover Side Slide Board Electrical Parts Bracket Under Plate Fuse Holder...
