Large Format Auto Open Heat Press with Slide-out Press Bed Manual
Large Format Auto Open Heat Press
with Slide-out Press Bed Manual
Model. No.: STM-40/48
CONTENTS
I. Assembly Drawing -----------------------------------------------------------------------------------2
II. Technical Parameters ------------------------------------------------------------------------------2
III. Operation Process -------------------------------------------------------------------------------3-5
IV. Maintenance ------------------------------------------------------------------------------------------6
V. Trouble Shooting For Transfer Print Quality------------------------------------------------6
VI. Circuit Diagram ----------------------------------------------------------------------------------7-8
VII. Explosion View -------------------------------------------------------------------------------------9
- 1-
Advertisement
Table of Contents
Related Manuals for Microtec STM-40
Summary of Contents for Microtec STM-40
-
Page 1: Table Of Contents
Large Format Auto Open Heat Press with Slide-out Press Bed Manual Large Format Auto Open Heat Press with Slide-out Press Bed Manual Model. No.: STM-40/48 CONTENTS I. Assembly Drawing -----------------------------------------------------------------------------------2 II. Technical Parameters ------------------------------------------------------------------------------2 III. Operation Process -------------------------------------------------------------------------------3-5 IV. Maintenance ------------------------------------------------------------------------------------------6 V. -
Page 2: Assembly Drawing

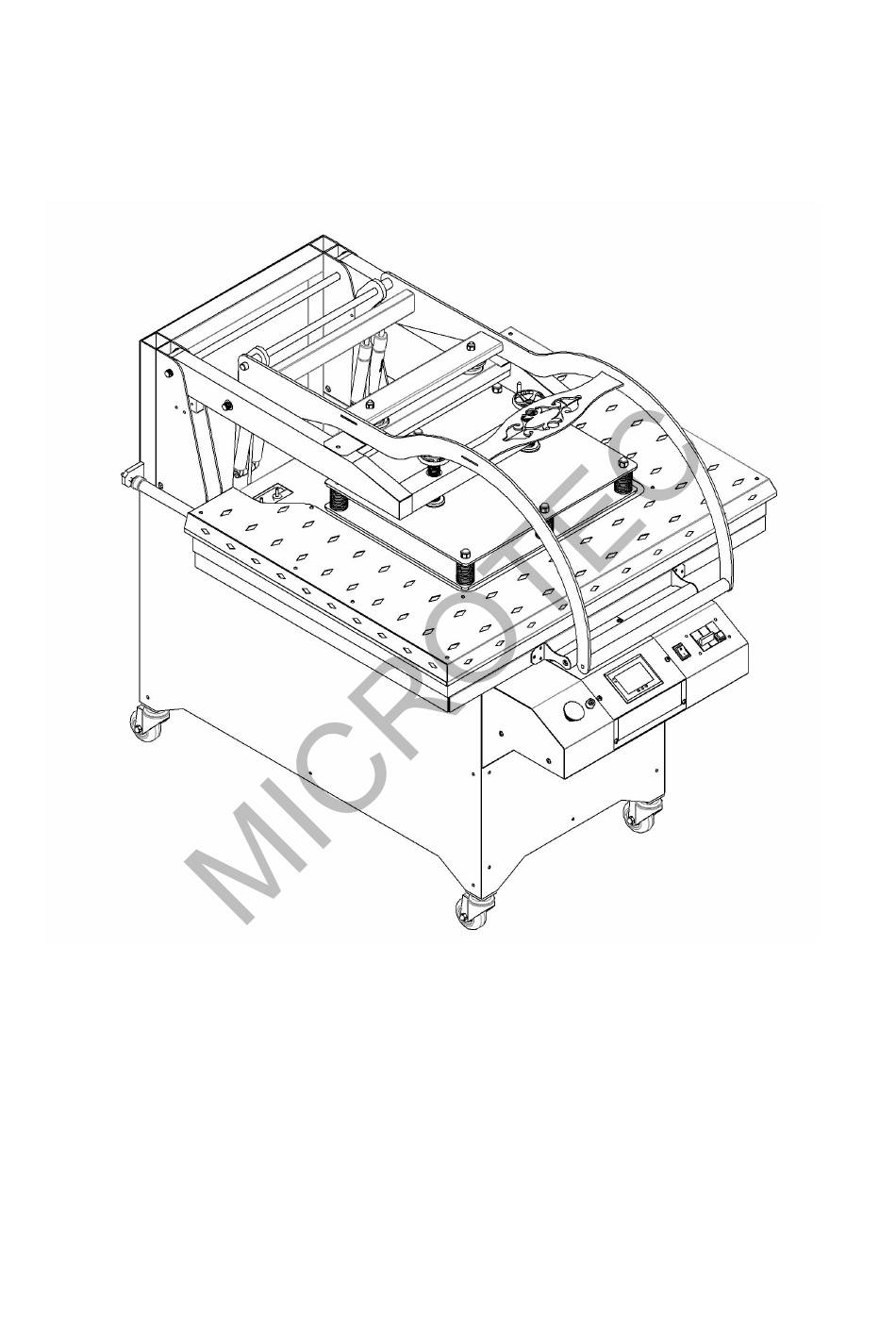

⑧ Emergency Stop Button ⑨ Machine base ⑩ Slide Rail II. Technical Parameters 1. Model No.: STM-40/48 2. Machine Dimension: 1360*1050*1270mm 3. Heat Platen Size: 80x100cm/ 100x120cm 4. Printable Articles Max Size: 1000x1200*50mm 5. Voltage: 220V 1Phase, 220V 3Phase, 380V/ 3 Phase 6. -
Page 3: Operation Process
Large Format Auto Open Heat Press with Slide-out Press Bed Manual III. Operation Process 1. GY06 Digital Controller Operation Process(Set temperature and time required) Turn on power switch, temperature Press button, the temp light Press button, the light is light is ON. The digital display shows on (C denotes Celsius). - Page 4 Large Format Auto Open Heat Press with Slide-out Press Bed Manual When SV and PV has a big difference, When the temperature shows on the display is not the same as actual press button for 5 seconds, and press button again to adjust the temperature. temperature on heat platen, press If SV&PV has difference of 20 degrees, button for 5 seconds to reset mode:...
- Page 5 Large Format Auto Open Heat Press with Slide-out Press Bed Manual Set temperature: 180℃. Set time: (chemical fiber use for sublimation transfer paper: 30-50 seconds; pure cotton use for T-shirt transfer paper: 10-20 seconds) 3). Aluminum sheet transfer: Set temperature: 180℃ Set Time: 45 seconds NOTE: 1) Please switch off the machine and unplug the power cord when the machine is not in use...
-
Page 6: Maintenance
Large Format Auto Open Heat Press with Slide-out Press Bed Manual IV. Maintenance 1. No action after turn on the machine. 1). Check the plug whether it connects well or whether it is broken. 2). Check the power switch or digital controller whether it is broken. 3). -
Page 7: Circuit Diagram
Large Format Auto Open Heat Press with Slide-out Press Bed Manual VI. Circuit Diagram (220V/1Phase) Circuit Diagram (220V/3 Phase) - 7-... - Page 8 Large Format Auto Open Heat Press with Slide-out Press Bed Manual - 8-...
-
Page 9: Explosion View
Large Format Auto Open Heat Press with Slide-out Press Bed Manual VII. Explosion View Parts Name Electric box Supporting Pole Serial No. Davit Arm Assemblage Electronic Box Electromagnet Connector Caster Wheel Handle Bar Grip Machine Frame Electromagnet Connector Slide Rail Heat Platen Limit Location Plate Heat Platen Interface Panel...
