PCBs

7. PCBs
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

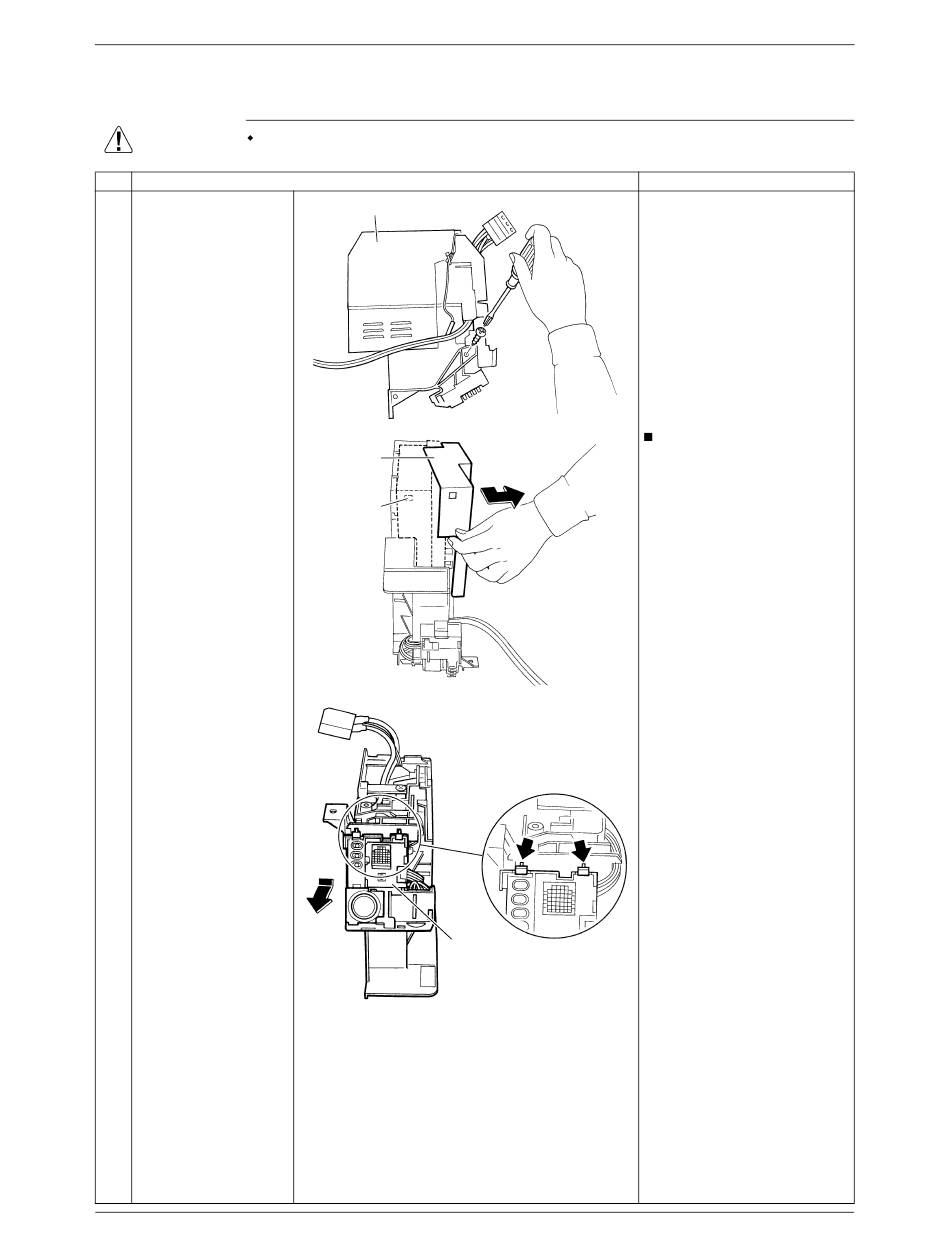

Step
1 Remove the screw on
the electrical box.
2 Unfasten the hook and
remove the shield plate.
3 Unfasten the 2 hooks
on the top and remove
the signal receiver unit.
10
All manuals and user guides at all-guides.com
Procedure
Electrical box
Shield
plate
Hook
Signal receiver
unit
Points
(R17747)
The shield plate also has 2
hooks on the upper side (at
the back).
(R13224)
(R2781)
Removal Procedure
Si041254EE
