Front Panel - Daikin ATM18MV2S Service Manual

Si041254EE

2. Front Panel

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step

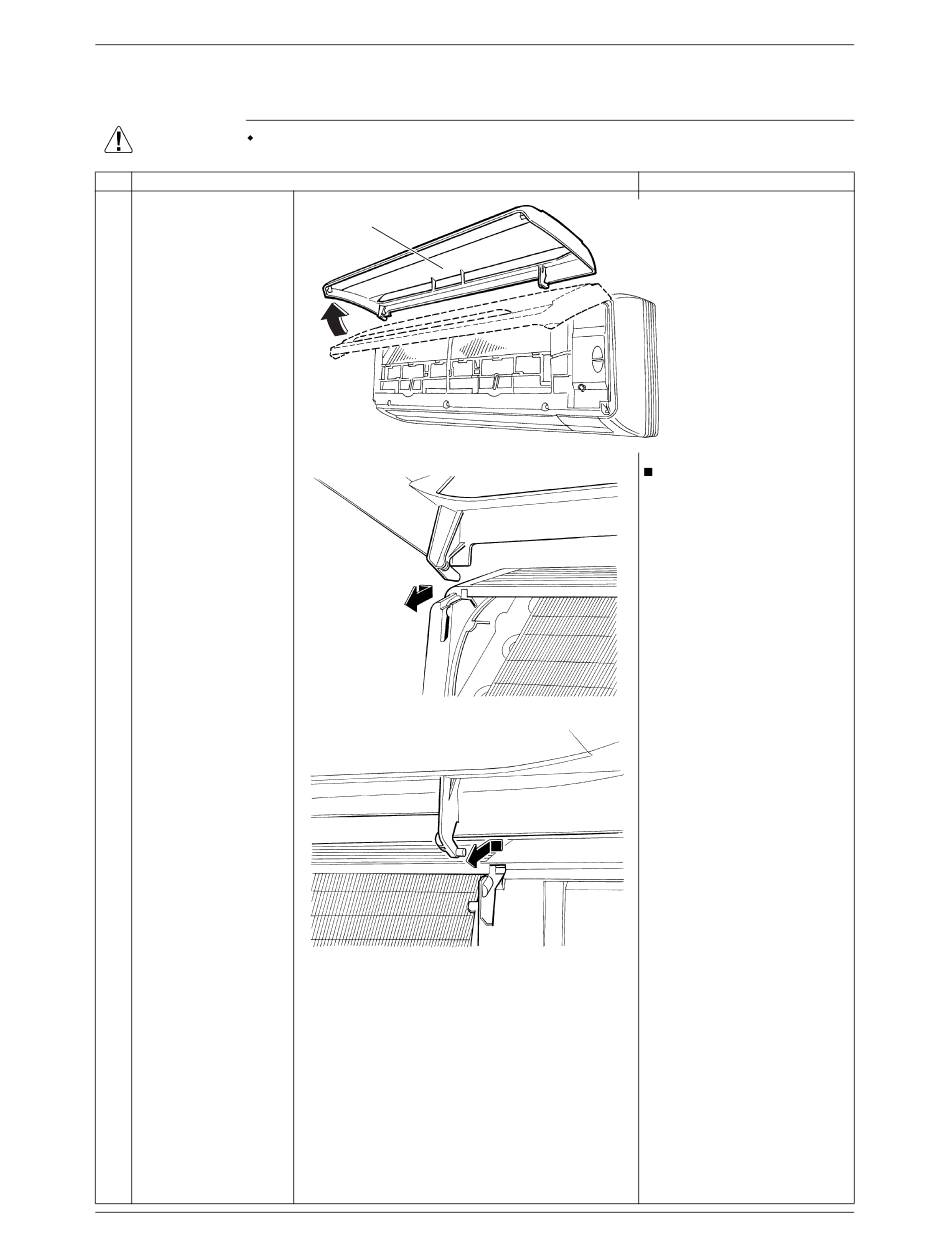

1 Open the front panel
over the position where
it stops.
2 Slide the front panel to
the right and release
the left shaft.
3 Release the right shaft
in the same way.
4 Remove the front panel.
Removal Procedure
All manuals and user guides at all-guides.com
Procedure
Front panel
Points
(R23428)
When reassembling the front
panel, fit the right and left
shafts one by one into the
grooves and fully push them
into position.
(R2754)
(R2755)
Front Panel
3
