Daikin ATM18MV2S Service Manual page 16

Indoor Heat Exchanger
Step

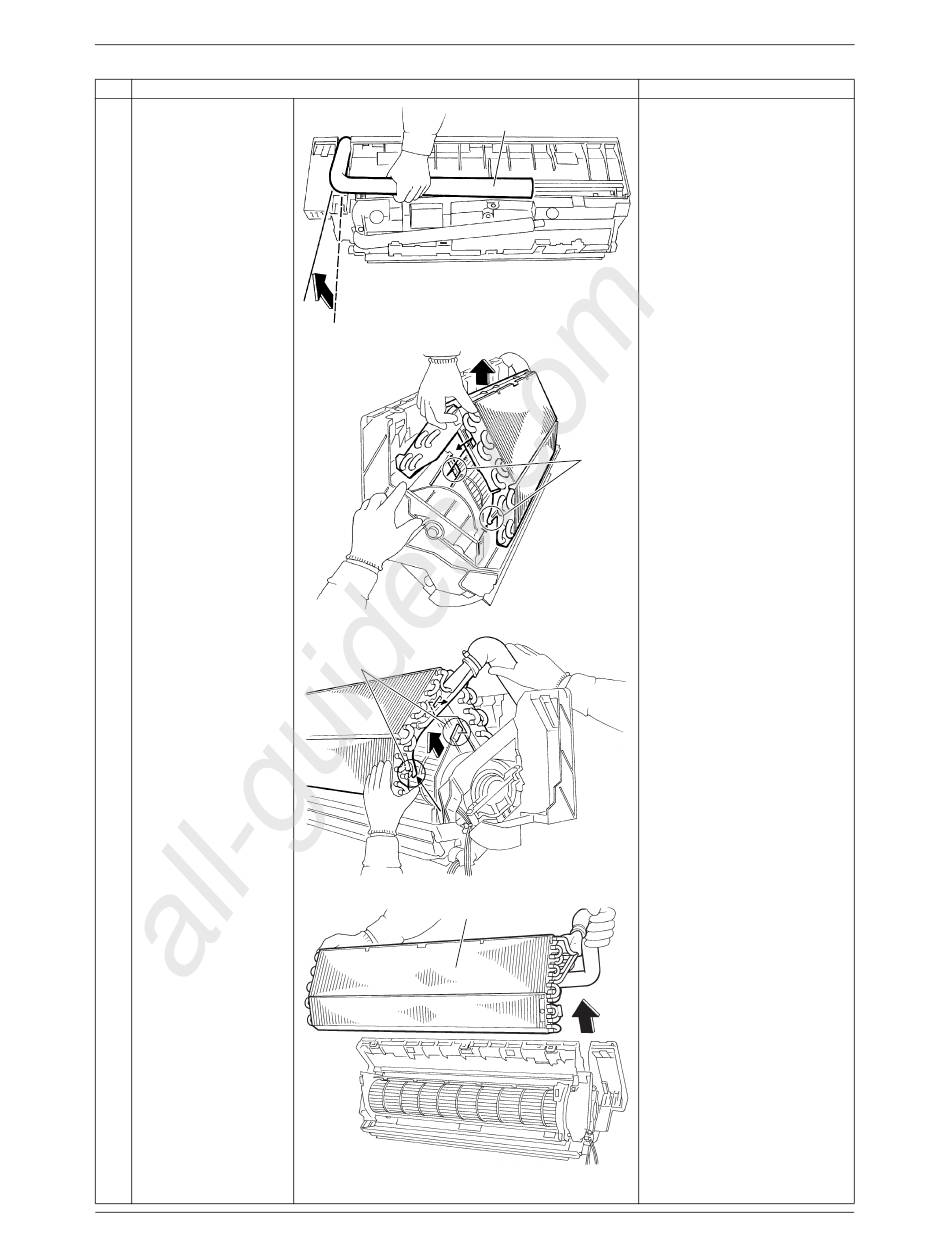

4 Slightly pull out the
auxiliary piping.
5 Unfasten the 2 hooks
on the left side.
6 Unfasten the 2 hooks
on the right side.
7 Pull the indoor heat
exchanger to the front
side, unfasten the
hooks completely, and
then remove the indoor
heat exchanger.
14
All manuals and user guides at all-guides.com
Procedure
Auxiliary piping
Hook
Indoor heat exchanger
Points
(R23430)
Hook
(R13231)
(R13232)
(R2802)
Removal Procedure
Si041254EE
