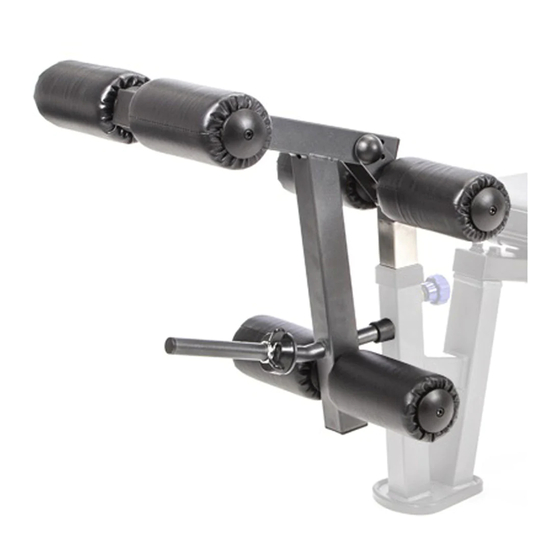

F711 Leg Extension/Curl Attachment
Base Lot Number: _ _ _ _ _ _ _ _ _ _ _ _ _
Purchased Date: ___ / ___ / ______
Dealer's Name:__________________________
Please register your products at:
https://www.bodycraft.com/product-registration/

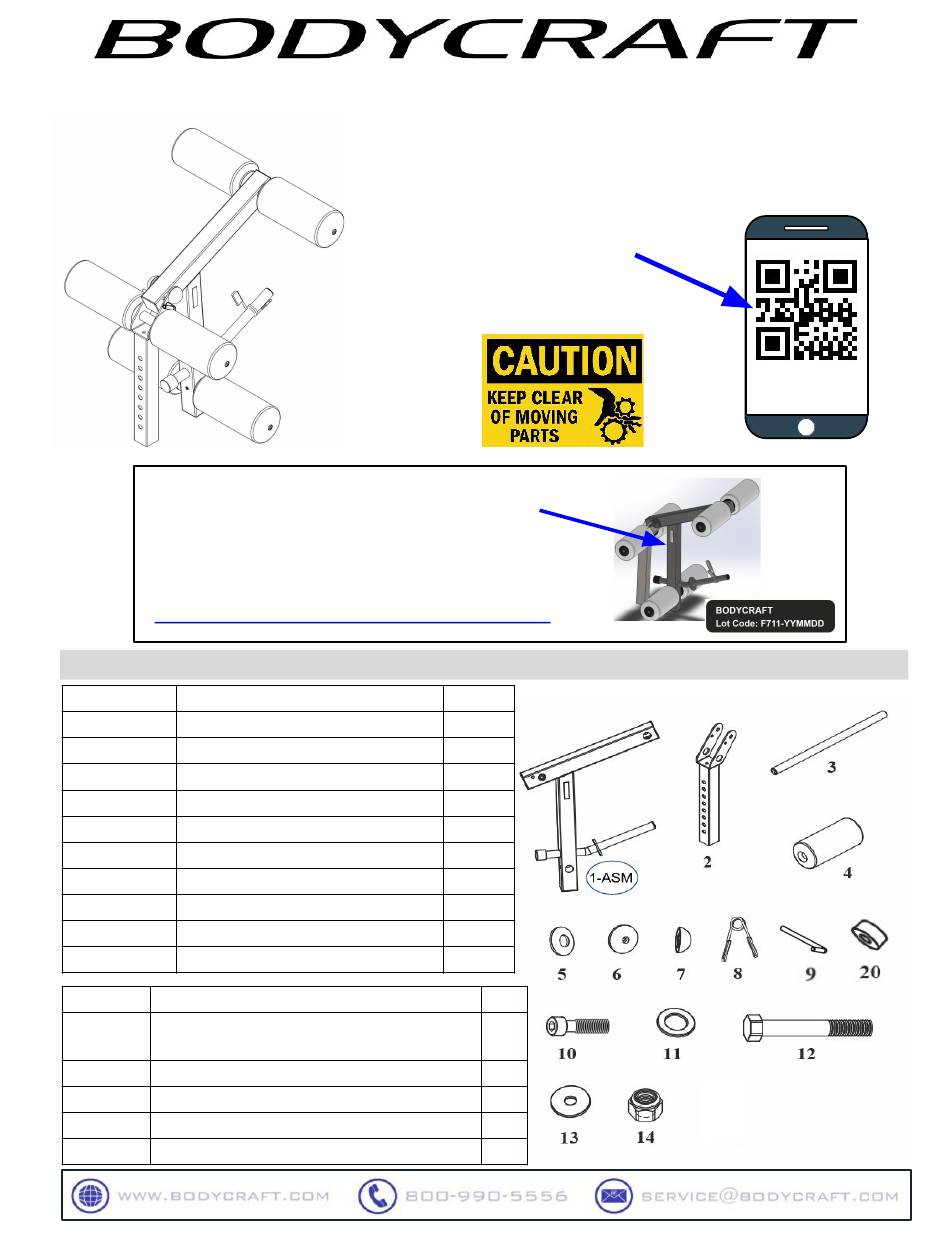

Assembled Parts List
Part #
Assembly Parts List
F711-001-ASM LEG WEIGHT HOLDER - Assembly
F711-002
ADJUST TUBE
F711-003
FOAM ROLLER HOLDER
F711-004
FOAM ROLLER
F711-005
LARGER END CAP
F711-006
SMALLER END CAP
F711-007
NUT CAP
F711-008
SPRING CLIP
F711-009
LOCKING PIN, L-TYPE
F711-020
RUBBER CUSHION
Part #
Assembly Hardware
HEX RECESSED HEAD BOLT, 5/16" x 1-1/4"
F711-010
- BLK
F711-011
FLAT WASHER, 1/2" - BLACK
F711-012
HEX BOLT, 1/2" x 3-1/4" - BLACK
F711-013
BIG WASHER, φ8 - BLACK
F711-014
NYLON NUT, THICK, 1/2" - BLACK
Owner's Manual
FULL COLOR
& addition information,
scan this QR code
QTY
1
1
3
6
6
6
2
1
1
1
QTY
6
2
1
6
1
1
To see in
Open your Camera
App and point it at
the QR Code
F711 v1.4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BodyCraft F711
Summary of Contents for BodyCraft F711
- Page 1 Purchased Date: ___ / ___ / ______ Dealer’s Name:__________________________ Please register your products at: https://www.bodycraft.com/product-registration/ Assembled Parts List Part # Assembly Parts List F711-001-ASM LEG WEIGHT HOLDER - Assembly F711-002 ADJUST TUBE F711-003 FOAM ROLLER HOLDER F711-004 FOAM ROLLER F711-005...
- Page 2 Product Assembly Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing materials from your area and place them back into the box. Do not dispose of the packing materials until assembly is completed.
- Page 3 Product Assembly TEP 2a: Install Foam Rollers Slide END CAP, LARGER (5) then the FOAM ROLLER (4) onto each side of FOAM ROLLER HOLDER (3), one bar post at a time. NOTE: Confirm centered with equal distance on both Rt & Lt Sides. TEP 2b: Secure Foam Rollers TIP: Recommended Tools...
- Page 4 HEX RECESSED HEAD BOLT, 5/16" x 1-1/4" F711-010 - BLK F711-011 FLAT WASHER, 1/2" - BLACK F711-012 HEX BOLT, 1/2" x 3-1/4" - BLACK F711-013 BIG WASHER, φ8 - BLACK F711-014 NYLON NUT, THICK, 1/2" - BLACK F711-015 BUSHING F711-016 END PLUG, 50 x 50mm SQ.
