BodyCraft F710 Owner's Manual

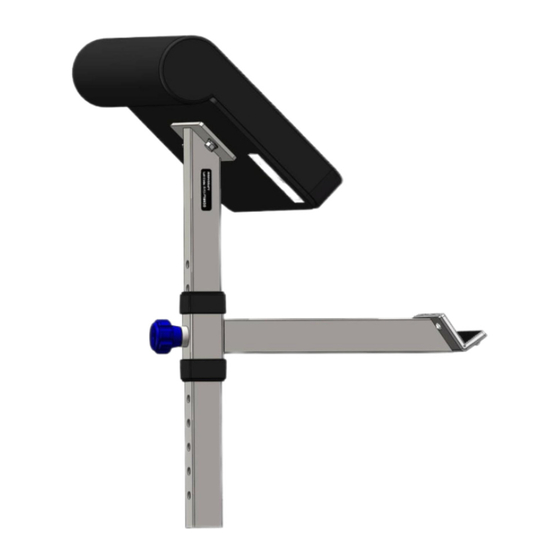

Arm curl attachment

Arm Curl Attachment

F710

To see in

Open your Camera

FULL COLOR

App and point it at

the QR Code

& addition information,

scan this QR code

Base Lot Number: _ _ _ _ _ _ _ _ _ _ _ _ _

Purchased Date: ___ / ___ / ______

Dealer's Name:__________________________

Please register your products at:

https://www.bodycraft.com/product-registration/

Owner's Manual

F710 v1.4

Table of Contents

Need help?

Do you have a question about the F710 and is the answer not in the manual?

Page 1 & addition information, scan this QR code Base Lot Number: _ _ _ _ _ _ _ _ _ _ _ _ _ Purchased Date: ___ / ___ / ______ Dealer’s Name:__________________________ Please register your products at: https://www.bodycraft.com/product-registration/ Owner’s Manual F710 v1.4...
Page 2 Assembly Hardware F710-001 ADJ.TUBE F710-004 FLAT WASHER, 3/8" - BLK F710-002-ASM BAR CATCH - Assembly F710-005 HEX BOLT, 3/8" x 1-1/4" - BLK F710-003 ARM CURL PAD F710-009 SPRING WASHER, 3/8" - BLK F710-006 PULL-PIN LOCKING KNOB THE FOLLOWING TOOLS ARE RECOMMENDED FOR ASSEMBLY: OPEN &...
Page 3 Product Assembly Recommended Tools TEP 1a: Pull-Pin Locking Knob Screw in the PULL-PIN LOCKING KNOB (6) on to the BAR CATCH - Assembly (2-ASM) about 2 full turns. 9/16 SOCKET & NOTE: DO NOT FULLY TIGHTEN 9/16 WRENCHES 6” EXTENSION TEP 1b: Bar Catch Attach the BAR CATCH - Assembly (2-ASM) into the ADJ.
Page 4 Detailed Parts list F710-001 ADJ.TUBE F710-002 BAR CATCH F710-003 ARM CURL PAD F710-004 FLAT WASHER, 3/8" - BLK F710-005 HEX BOLT, 3/8" x 1-1/4" - BLK F710-006 PULL-PIN LOCKING KNOB F710-007 RUBBER PAD F710-008 SPACER CAP F710-009 SPRING WASHER, 3/8" - BLK...
