Summary of Contents for HIKVISION UVCX12R01

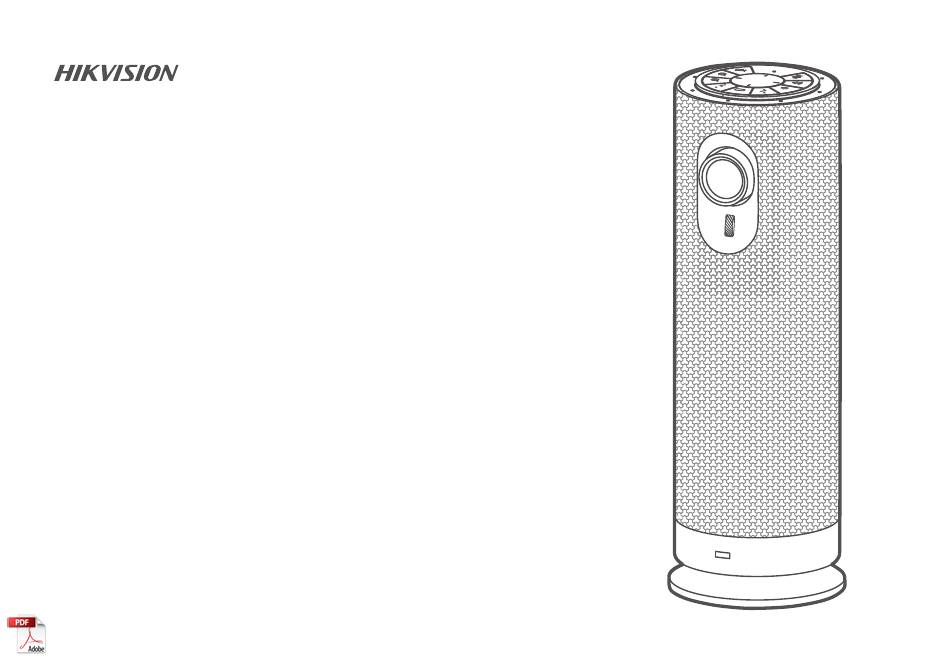

- Page 1 Portable Conference Camera User Manual...
-
Page 2: Packing List
Packing List User Manual User Manual Card Remote Control Privacy Shutter USB Cable Quick Start Guide Camera... - Page 3 Functions Pan/Tilt Control Indicator Turn On/Off Camera Mute Volume Zoom In/Out Page Down Page Up Hyperlink...
- Page 4 Pan/tilt the camera. Press the button to adjust the camera by level. Press and hold the button to adjust the camera continuously. Turn on/off video streaming. Press the button to zoom in/out by level. Press and hold the button to adjust the camera continuously. Turn on/off the pickup function of the camera.
- Page 5 Microphone Lens Lens Adjusting Scroll USB Type C Status Indicator Power Indicator...
- Page 6 Solid Red: Power is lower than 15% Power Indicator Solid Orange: Power is lower than 30% Solid White: Power is more than 30% Solid Red: Mute Status Indicator Solid White: Working Normally No Light: Standby...
- Page 7 Connection USB Cable Connection & Charging USB3.0 USB Cable Connect the device to an intelligent terminal, such as a computer or conference flat panel. The device starts to charge when connected to a computer.
- Page 8 Setup Guide Select Speaker Default Settings 1080P CONF Camera-Audio Select Microphone Select Camera Default Settings Default Settings 1080P CONF Camera-Audio 1080P CONF Camera Mute Camera Power on the device and open the conference/video software. Select the speaker and microphone as 1080P CONF Camera-Audio, and select the Camera as 1080P CONF Camera.
-
Page 9: Using Guide
Using Guide Open the battery cover and remove the battery pull tab before using. Press the remote control with both hands and rotate it in the direction of arrow to open the batter y cover. - Page 11 Adjust the view angle. -10°~10°...
- Page 12 The privacy shutter and remote control can be magnetically attached to the device.
-
Page 13: Safety Instruction
Visit http://enpinfodata.hikvision.com/analysisQR/showQR/35d08787 for frequently asked questions. Safety Instruction Warnings Laws and Regulations The device should be used in compliance with local laws, electrical safety regulations, and fire prevention regulations. Electrical Safety The socket-outlet shall be installed near the equipment and shall be easily accessible. - Page 14 Never place the equipment in an unstable location. The equipment may fall, causing serious personal injury or death. DO NOT touch the sharp edges or corners. Transportation Keep the device in original or similar packaging while transporting it. DO NOT drop the product or subject it to physical shock. Power Supply EUT will be charged by specified source which the output circuit comply with LPS/PS 2.
- Page 15 —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Conditions This device complies with part 15 of the FCC Rules.
- Page 16 OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS;...
- Page 17 UD28360B-B...
