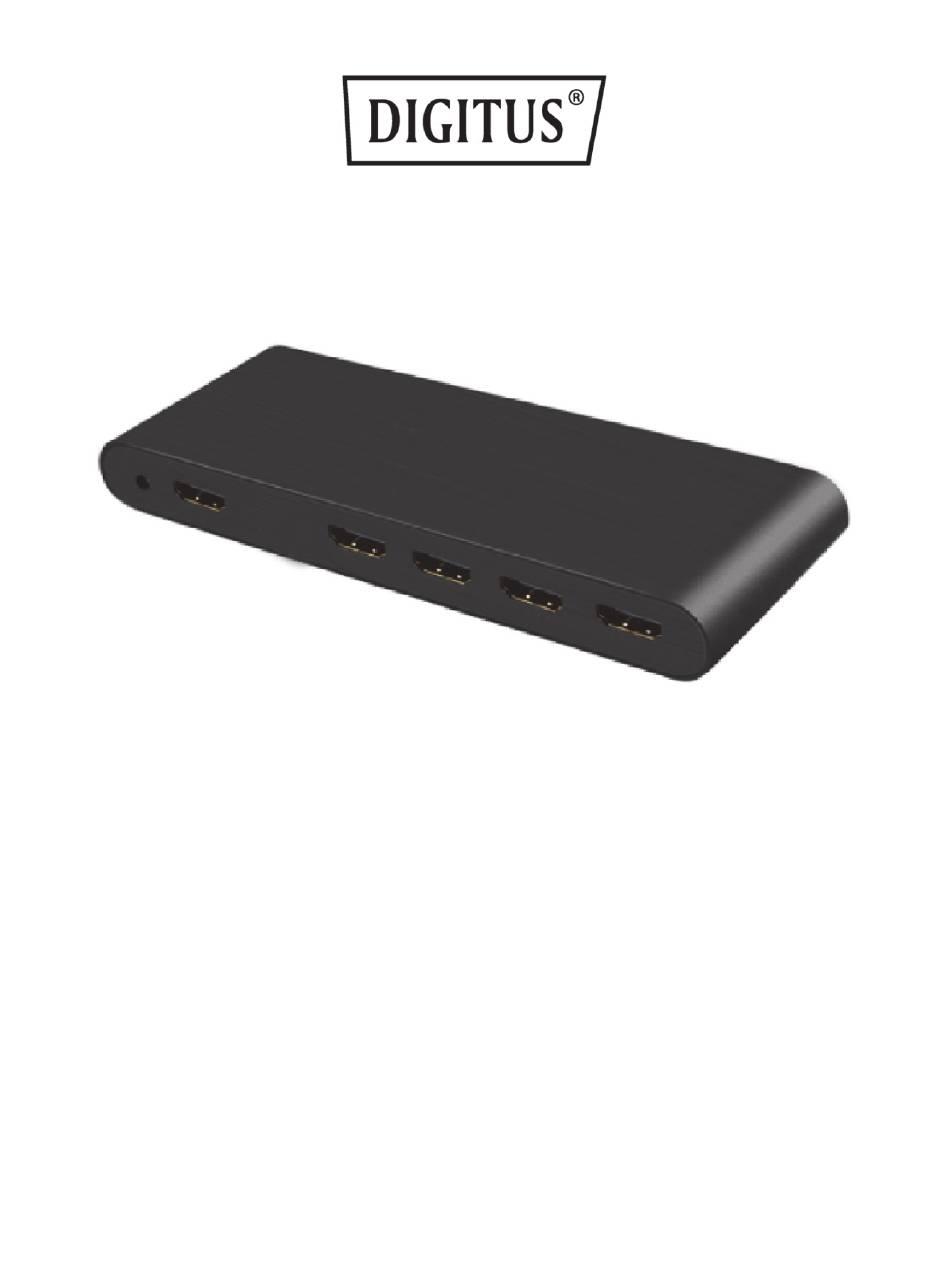

Digitus DS-45319 User Manual

UHD HDMI Splitter, 1x4

User Manual

DS-45319

Introduction

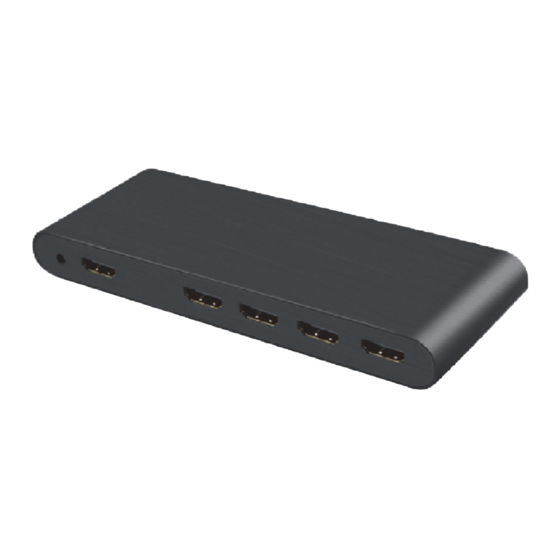

The DIGITUS® UHD HDMI Splitter, 1x4 is a high-performance and

small-sized HDMI 2.0 Splitter with aluminum shell. It distributes the input

signal of the HDMI source to four HDMI video output devices (TV, Monitor,

Display) at the same time. It provides high performance audio and video

output through HDMI cables up to 4K2K/60Hz resolution and is capable of

receiving and transmitting up to 6Gbps/600MHz bandwidth.

Table of Contents

Do you have a question about the DS-45319 and is the answer not in the manual?

Page 1 User Manual DS-45319 Introduction The DIGITUS® UHD HDMI Splitter, 1x4 is a high-performance and small-sized HDMI 2.0 Splitter with aluminum shell. It distributes the input signal of the HDMI source to four HDMI video output devices (TV, Monitor, Display) at the same time. It provides high performance audio and video output through HDMI cables up to 4K2K/60Hz resolution and is capable of receiving and transmitting up to 6Gbps/600MHz bandwidth.
Page 2 Features This HDMI 2.0 UHD Splitter has many features that enable it to perform in a superior manner. Among those features you will find:  Easy to Use: Install in seconds, no need of setting  One HDMI Input, four HDMI outputs ...
Page 3 Connection 1. Connect the HDMI video source to the HDMI input of the Splitter with one HDMI cable (HDMI cables are optional) * Please refer to connection diagram section 2. Connect the four outputs of the splitter to four displays Connection Diagram 5V Power Adapter HDMI Display 1...
Page 4 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
