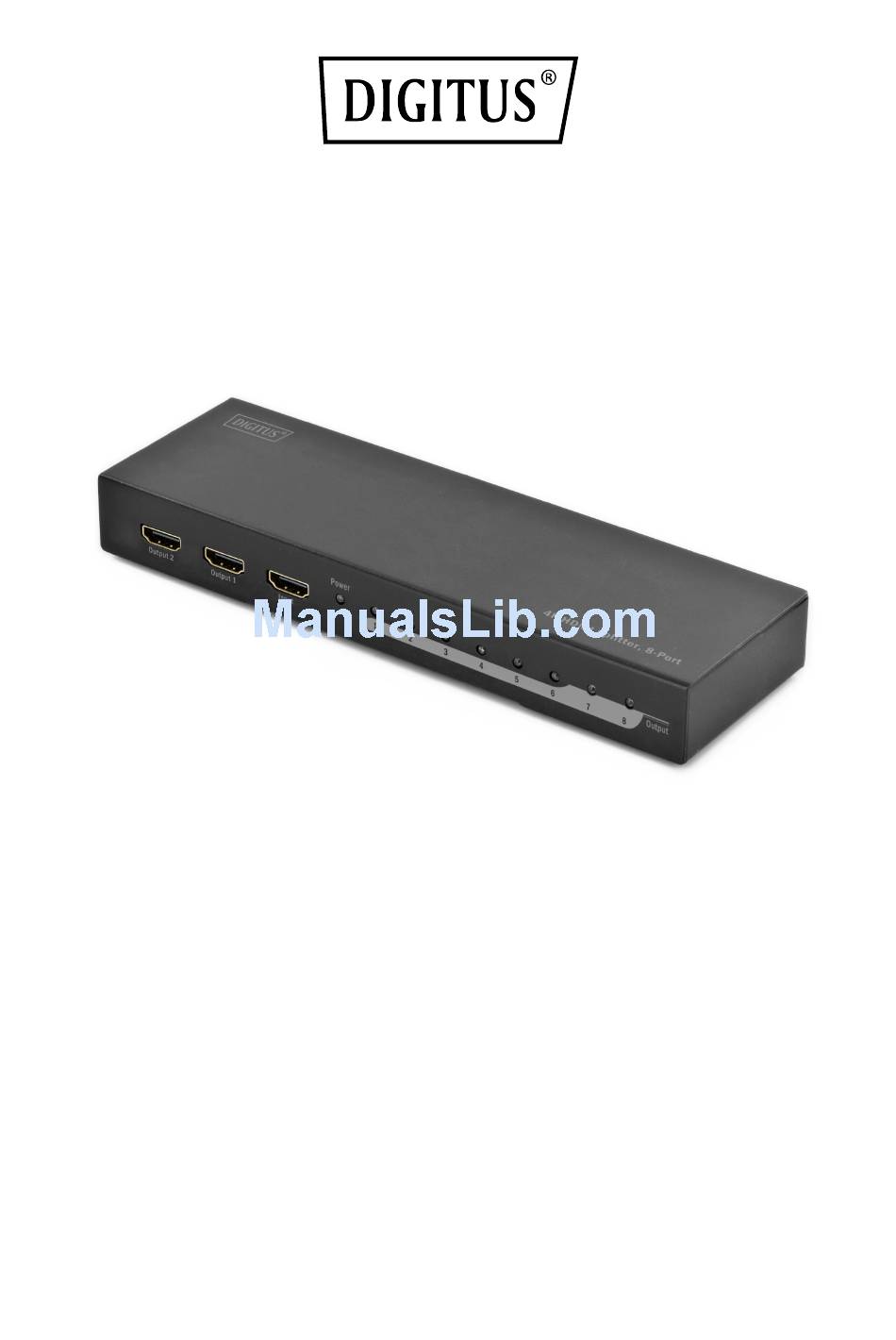

4K HDMI Splitter, 8-Port
Manual
DS-43303

1.0 Introduction

The 8-port 4K HDMI splitter allows sharing eight HDMI displays or projectors
with an HDMI-enabled audio / video source device, such as a computer,
Blu-ray player or cable TV, set-top box. With support for Ultra HD (4K) the
HDMI splitter ensures astonishing picture quality, four times the resolution of
high-definition 1080p. The 4K splitter is also backward compatible with
previous HDMI revisions, supporting 1080p / 720p HDMI video resolution
devices. Even if you don't require 4K video today, the 8 ports splitter ensures
you'll be ready to take advantage of display technology in the future.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-43303 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digitus DS-43303

Summary of Contents for Digitus DS-43303

  • Page 1 4K HDMI Splitter, 8-Port Manual DS-43303 1.0 Introduction The 8-port 4K HDMI splitter allows sharing eight HDMI displays or projectors with an HDMI-enabled audio / video source device, such as a computer, Blu-ray player or cable TV, set-top box. With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, four times the resolution of high-definition 1080p.
  • Page 2 2.0 Feature  Easy to Use: Install in seconds, no need of setting  One HDMI Input, eight HDMI outputs  Supports Full 3D and 4Kx2K@30Hz resolution  Supports 340MHz/3.4Gbps per channel (10.2Gbps all channels)  Supports 12bit per channel (36bit all channels) deep color ...

  • Page 3: Package Content

    4.0 Package Content  Main Unit  5V DC Power Supply  User Manual 5.0 Panel Description 6.0 Connection and Operation  Connect the HDMI input source and output devices into the HDMI Amplifier Splitter.  Insert the DC side of 5v power supply into the splitter and then connect the AC side of the power supply into the wall outlet.

  • Page 4: Connection Diagram

    6.1 Connection Diagram Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the Directive 2011/65/EU for RoHS compliance. The complete declaration of conformity can be requested by post under the below mentioned manufacturer address. Note: If wrongly installed or improperly used in the living area, the device can cause interference in radios and other electronic devices.
