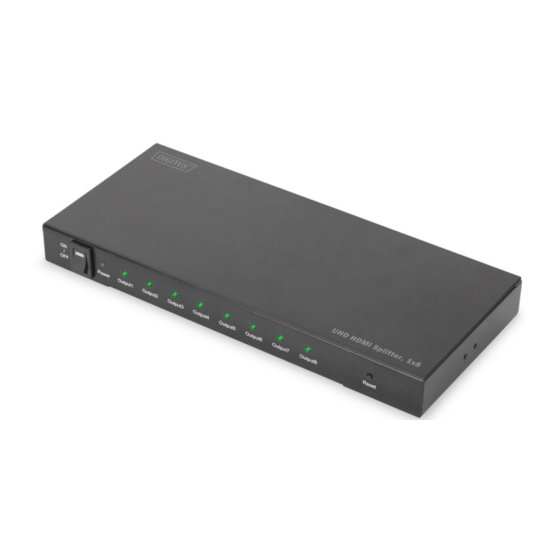

UHD HDMI Splitter, 1x8
Manual
DS-43304
With the DIGITUS UHD 8-Port HDMI splitter, a video signal can be divided into up to
eight playback devices (TVs, displays, monitors, projectors...etc.). It supports the best
possible UHD resolution (4K2K, 60Hz), and provides the ideal solution for commercial
applications such as for video wall presentations or product presentations (office/
business premises, exhibition booths, display windows, waiting rooms, catering, etc.).
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Digitus DS-43304
Summary of Contents for Digitus DS-43304

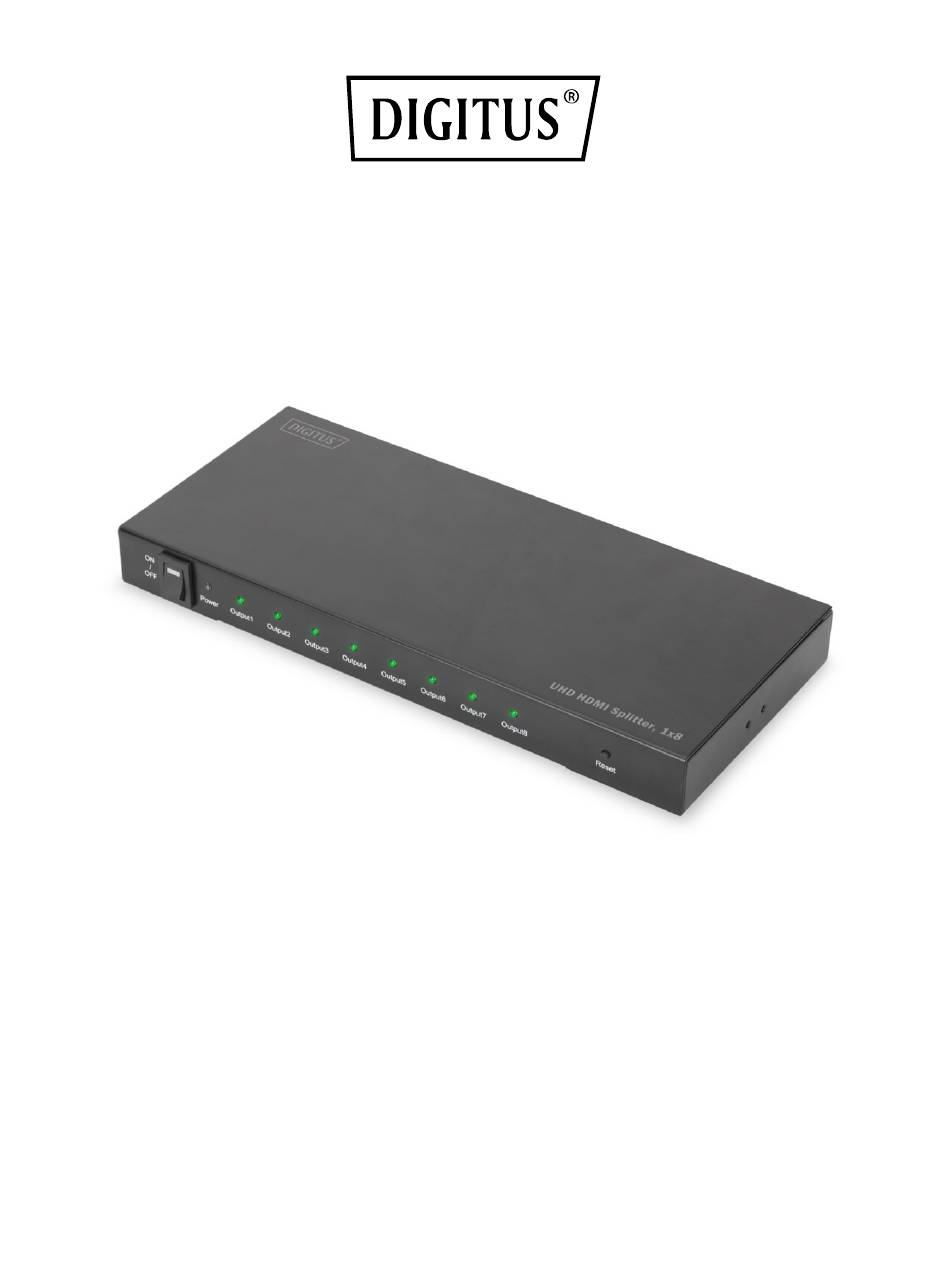

- Page 1 Manual DS-43304 With the DIGITUS UHD 8-Port HDMI splitter, a video signal can be divided into up to eight playback devices (TVs, displays, monitors, projectors…etc.). It supports the best possible UHD resolution (4K2K, 60Hz), and provides the ideal solution for commercial applications such as for video wall presentations or product presentations (office/ business premises, exhibition booths, display windows, waiting rooms, catering, etc.).
- Page 2 1.0 INTRODUCTION This is a high-performance and small-sized HDMI Ultra High Definition Splitter with hot plug and iron shell. It distributes the input of the HDMI signal into eight identical outputs at the same time. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz resolution and is capable of receiving and transmitting up to 6Gbps/600MHz bandwidth.
- Page 3 4.0 SPECIFICATIONS Input/Output Connector Input HDMI X1 Output HDMI X8 Operating Frequency Vertical Frequency Range 24/30/50/60Hz Video Amplifier Bandwidth 6Gbps/600MHz Resolutions (HDTV) Interlaced (50&60Hz) 480i, 576i, 1080i Progressive (50&60Hz) Max up to 4kx2k@60Hz Environmental Operating Temperature 0°C to +45°C Operating Humidity 10% to 85% RH (no condensation) Storage Temperature -10°C to 70°C...
-
Page 4: Connection Diagram
6.0 CONNECTION DIAGRAM Application Monitor/TV Monitor/TV Monitor/TV Monitor/TV PC/Notebook Projector Projector Monitor/TV Monitor/TV Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the Directive 2011/65/EU for RoHS compliance.
