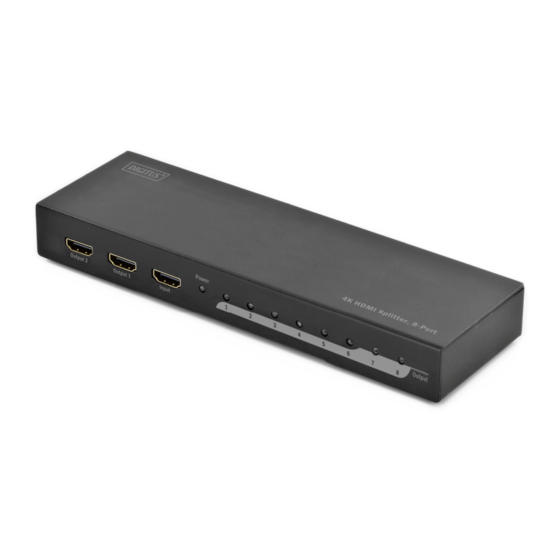

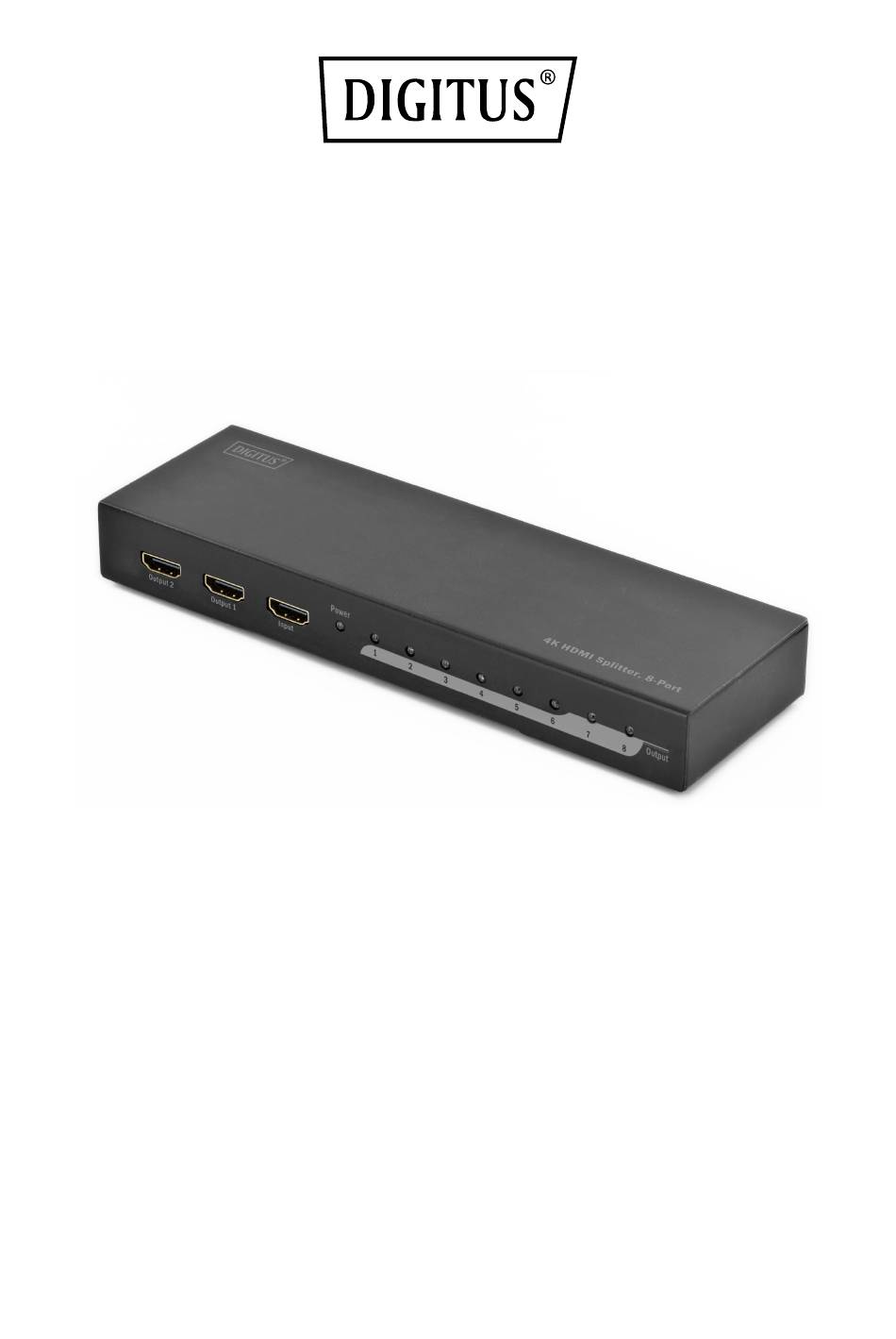

4K HDMI Splitter, 8-Port
Manual
DS-43303 Rev. 2
1.0 Introduction
The 8-port 4K HDMI splitter allows sharing eight HDMI displays or projectors with an
HDMI-enabled audio / video source device, such as a computer, Blu-ray player or
cable TV, set-top box. With support for Ultra HD (4K) the HDMI splitter ensures
astonishing picture quality, four times the resolution of high-definition 1080p.
The 4K splitter is also backward compatible with previous HDMI revisions, supporting
1080p/ 720p HDMI video resolution devices. Even if you don't require 4K video today,
the 8 ports splitter ensures you'll be ready to take advantage of display technology in
the future.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS-43303 and is the answer not in the manual?

Questions and answers

Related Manuals for Digitus DS-43303

Summary of Contents for Digitus DS-43303

  • Page 1 4K HDMI Splitter, 8-Port Manual DS-43303 Rev. 2 1.0 Introduction The 8-port 4K HDMI splitter allows sharing eight HDMI displays or projectors with an HDMI-enabled audio / video source device, such as a computer, Blu-ray player or cable TV, set-top box. With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, four times the resolution of high-definition 1080p.
  • Page 2 2.0 Feature Easy to Use: Install in seconds, no need of setting  One HDMI Input, eight HDMI outputs  Supports Full 3D and 4Kx 2K@ 30Hz resolution  Supports 340MHz/3.4Gbps per channel (10.2Gbps all channels)  Supports 12bit per channel (36bit all channels) deep color ...
  • Page 3 4.0 Package Content  Main Unit  5V DC Power Supply  User Manual 5.0 Panel Description 6.0 Connection and Operation  Connect the HDMI input source and output devices into the HDMI Amplifier Splitter.  Insert the DC side of 5V power supply into the splitter and then connect the AC side of the power supply into the wall outlet.
  • Page 4 6.1 Connection Diagram This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
