Summary of Contents for Major tech MTD70T

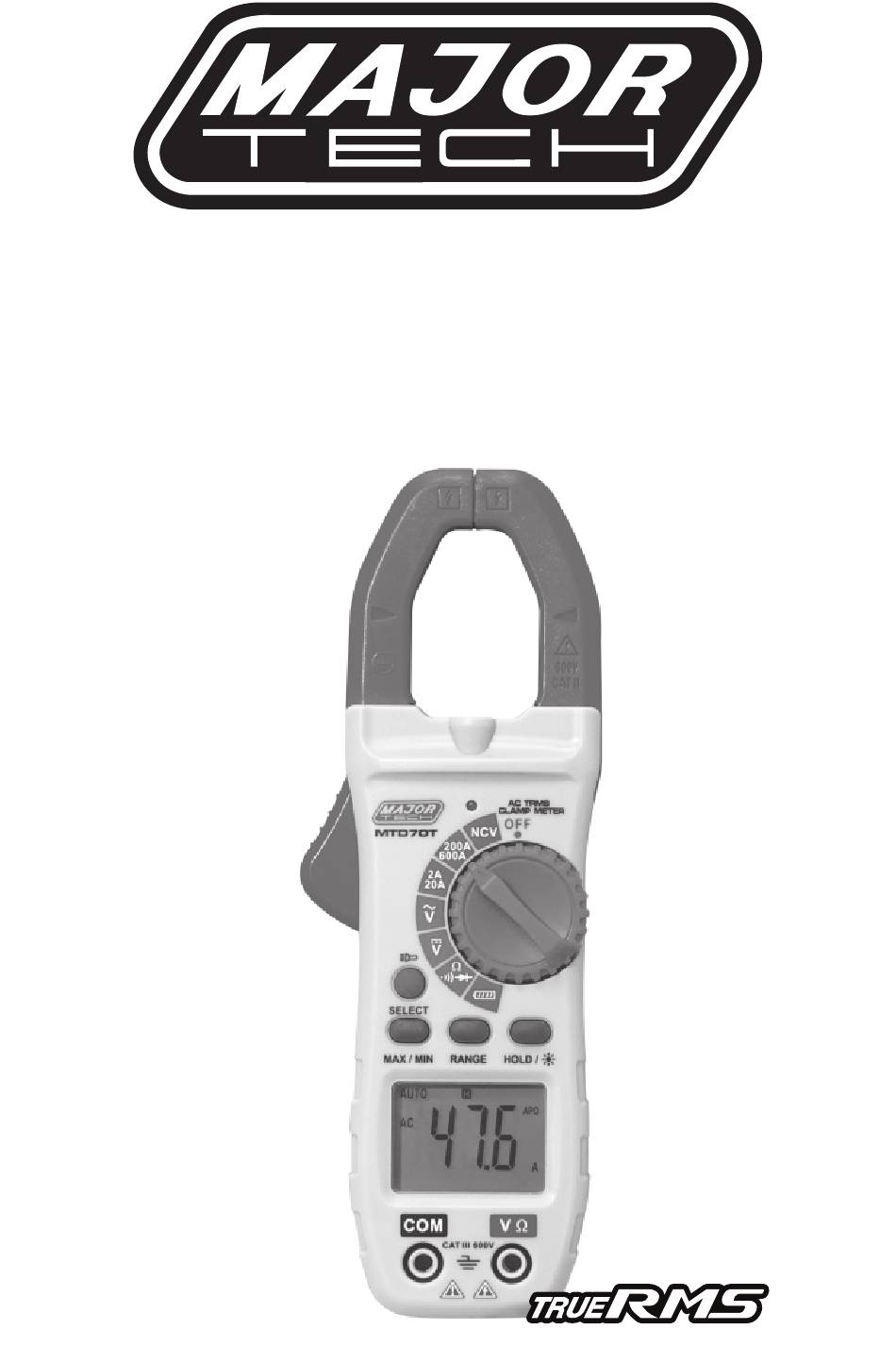

- Page 1 INSTRUCTION MANUAL MTD70T 600A AC TRUE RMS DIGITAL CLAMP METER...
-
Page 3: Table Of Contents
Contents Page no 1. Safety....................4 1.1. International Safety Symbols............4 1.2. Safety Notes................4 1.3. Warnings.................4 1.4. Cautions..................4 2. Descriptions..................5 2.1. Meter Descriptions..............5 2.2. Display Icons................5 3. General Specifications................6 4. Specifications...................6 4.1. AC True RMS Current..............6 4.2. AC Voltage True RMS..............7 4.3. DC Voltage................7 4.4. -
Page 4: Safety
1. SAFETY 1.1. lnternational Safety Symbols This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present. Double insulation. -
Page 5: Descriptions
2. Descriptions 2.1. Meter Descriptions 1 - NCV Test 2 - Current clamp 3 - LED Flashlight 4 - Non-contact AC voltage indicator light 5 - Clamp trigger 6 - Rotary Function switch 7 - SELECTOR mode range button 8 - Data Hold button REL button for Relative Measurement 10 - Flashlight and LCD backlight button 11 - LCD display... -
Page 6: General Specifications
3. General Specifications Basic Functions Range Clamp jaw opening 28mm approx. Display 2000 Count (2-1/2 digits backlit LCD) Low Battery indication is displayed Over-range indication 'OL' display Measurement rate 3 readings per second, nominal Input Impedance 10M (VDC and VAC) AC response Average Reading (AAC and VAC) ACV Bandwidth... -
Page 7: Ac Voltage True Rms
4.2. AC Voltage True RMS Range Resolution Accuracy (% of reading + digits) 200mV 0.1mV ±1.5% of rdg±10 digits 2.00V 20.0V 10mV ±1.0% of rdg±5 digits 200V 0.1V 600V ±1.2% of rdg±5 digits Input impedance 10MΩ. protection 600V DC or RMS of AC. Frequency response 60V at 40Hz to 1kHz (sine), other ranges 50/60Hz (all wave). -
Page 8: Diode And Continuity
4.5. Diode & Continuity Function Testing Condition Reading Diode Forward DCA is approx. 0.8mA, Forward voltage drop open circuit Voltage MAX. 2.2V of Diode Continuity Test current MAX. 1.5mA Buzzer makes a continuous sound while resistance is less than (50Ω) Input Protection: 250V DC or 250V AC RMS Warning DO NOT apply voltage to Continuity range 5. -
Page 9: Ac Voltage Measurements
3. Connect the test leads in parallel to the circuit under test. 4. Read the voltage measurement on the LCD display. 5.3. DC Voltage Measurements 1. Insert the black test lead into the negative COM terminal and the red test lead into the positive V/Ω terminal. 2. -
Page 10: Non-Contact Ac Voltage Measurements
5.7. Non-Contact AC Voltage Measurements WARNING: Risk of Electrocution. Before use, always test the Voltage Detector on a known live circuit to verify proper operation 1. Touch the probe tip to the hot (LIVE) conductor or insert into the hot (LIVE) side of the electrical outlet. -
Page 11: Maintenance
6. Maintenance WARNING: To avoid electrical shock, disconnect the meter from any circuit, remove the test leads from the input terminals, and turn OFF the meter before opening the case. Do not operate the meter with an open case. 6.1. Cleaning and Storage Periodically wipe the case with a damp cloth and mild detergent;... - Page 12 MAJOR TECH (PTY) LTD South Africa Australia www.major-tech.com www.majortech.com.au sales@major-tech.com info@majortech.com.au...
