Summary of Contents for Major tech MT952

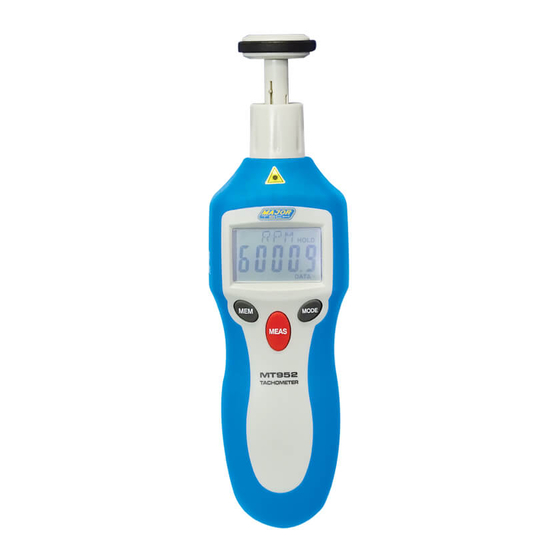

- Page 1 INSTRUCTION MANUAL MT952 CONTACT & NON-CONTACT TACHOMETER...
- Page 3 1. Warnings To avoid injuries to animal or human eyes, do not point the laser beam in eyes or look directly into beam. If the instrument is not to be used for any extended period remove the battery. NOTE: If the battery current is weak, you will view the “BAT” on the •...
- Page 4 3. Specifications Display 5 digits LCD display Accuracy ±(0.05% + 1 digits) Contact Test range 2 to 20,000RPM Non-Contact Test range 2 to 99,999RPM Tot test range 1 to 99,999 Resolution 0.1 RPM (2 to 9999.9 RPM) 1 RPM (over 10000 RPM) Sampling time 0.5 seconds (over 120 RPM) Detecting distance...
- Page 5 5. Function Description In scan mode, the current measurement is displayed on the main display. The main display will hold the last values until the meter automatically turns off. Data Storage Press the MEAS button until the reading displays on the LCD display. Observe the reading and press the “MEM”...
- Page 6 Measurement Mode Switch: Release the MEAS button and press the MODE button. There are two group of measurement options. Press the MODE button to change from RPM to RPM to HZ. Press the MODE button and hold for approx.3 sec to leap to the next group. Then, press the MODE button once to change from REV to M to In.
- Page 7 Y/M: Contact Yard per minute measurements. • • REV: Revolution measurements. M: Length measurements in the unit of meter. (Using the • master 10cm circumference wheel.) In: Length measurements in the unit of inch. (Using the master • 10cm circumference wheel.) •...
