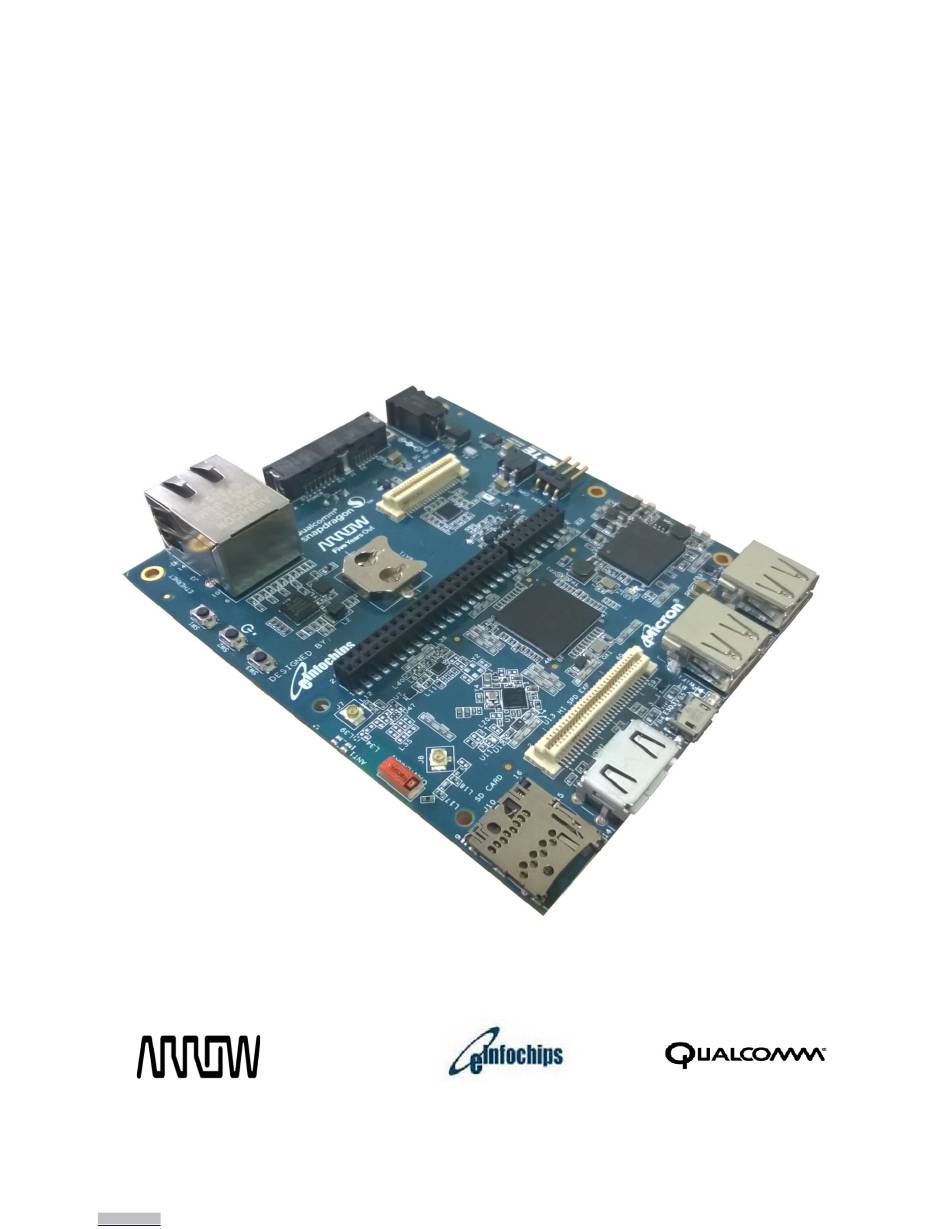

- Page 1 SD 600eval Hardware User Manual Version 1.0 May 2016 Powered By: Arrow.com. Downloaded from...
-
Page 2: Table Of Contents
6.8 USB Ports ................................13 6.9 Audio ..................................15 6.10 DC Power ................................15 6.11 Power Measurement ............................15 6.12 External Fan Connection............................. 16 6.13 UART ................................... 16 6.14 Buttons ................................16 6.14.1 Power Button ............................... 16 2/30 Arrow.com. Arrow.com. Downloaded from Downloaded from... - Page 3 16-Pin Audio Expansion Connector ......................25 Power Management Overview ..........................26 8.1 Block Diagram ............................... 26 8.2 DC Power Input ..............................26 8.3 Power Source Selection and Sequencing ......................27 3/30 Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from...
- Page 4 8.4 Power Measurements ............................29 Mechanical specification ............................30 Board Dimensions ..............................30 4/30 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from...
-
Page 5: Introduction
1. Introduction The SD 600eval board is a 96Boards Customer Edition compliant board based on Qualcomm® Snapdragon 600 series of SoC. The following table lists its key features: Processor Qualcomm 600 APQ8064 PoP (839BNSP) 4 Krait uP cores (up to 1.7 GHz), plus 1 QDSP6 core (to 500 MHz) Adreno 320 3D Graphics at 400 MHz / 325 MHz (turbo/ nominal) with support for OpenGL ES 1.x, 2.0, 3.0;... -
Page 6: Change History
Operating Temp: 0°C to +50°C RoHS and REACH compliant 2. Change History Version Changed By Description of Changes eInfochips Initial version 3. What’s in the Box 6/30 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from... -
Page 7: Board Overview
20 (J14) Micro USB Type AB Connector 21 Bluetooth / WLAN LED’s 22 (J11) USB Host 1 Connector 23 User LED’s 0-3 24 (J12) USB Host 2 Connector 25 (U26) eMMC 26 (SW5) Boot Switches 7/30 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from... -
Page 8: System Block Diagram
4.2 System Block Diagram 5. Getting Started 5.1 Prerequisites Before you power up your SD 600eval board for the first time, you will need the following: • SD 600eval board • A 96Boards CE specification compliant power supply (sold separately by Arrow) •... -
Page 9: Starting The Board For The First Time
The 96Boards CE specification calls for a micro SDHC socket to be present on the board. The micro SDHC socket (J10) is placed on the bottom left corner of the SD 600eval board and is routed directly to SDC3 port of APQ8064.The Micro SD slot is a push- push type with a dedicated support for card detect signal. -
Page 10: Boot Configuration
6.4.3 Boot Configuration For boot mode configuration on SD 600eval board, a 4 position SPST dip switch (SW5_SPST1) is located at the bottom side of the SD 600eval board. CONFIG switch in ON position indicates a Logic 1 level Boot Selection table is shown below:... -
Page 11: Networking
The 96Boards CE specification calls for a WiFi (minimally 802.11g/n) and Bluetooth 4.0 (Bluetooth Low Energy) to be present on board. The SD 600eval board deployed Qualcomm’s RF chip WCN3680B (U10) solution that integrates three different wireless connectivity technologies into a single device, the interfaces are: •... -
Page 12: Ethernet
The 96Boards CE specification calls for HDMI port to be present on board. The HDMI signals of APQ8064 are routed to HDMI connector (J13). APQ8064 supports following HDMI features: • Hot-plug detection • Consumer electronics control (CEC) messages 12/30 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. -
Page 13: Mipi-Dsi
USB Hub, which supports 3 downstream ports. Two downstream USB ports of USB Hub are available at Type A connector J12 (Host1) and J11 (Host2). USB OTG port is provided at USB Micro AB connector J14 of SD 600eval board. The USB host controller supports full speed (12Mbps) mode, high speed (480Mbps) mode and Low Speed (1.2Mbps) mode. - Page 14 14/30 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
-
Page 15: Audio
A USB Type C port at 5V (not supported on SD 600eval Board) The SD 600eval board exceeds the power input requirement and can operate from as low as 6.5V power input. Please see section 8.2 for detailed information on SD 600eval implementation of DC Power. -
Page 16: External Fan Connection
6.12 External Fan Connection The SD 600eval board can drive 5V or 12V DC fan. The power for driving external Fan is available on the Low Speed Expansion connector. 6.13 UART The 96Boards CE specification calls for support for one SoC UART and an optional second UART, both to be routed to the Low Speed Expansion Connector. -
Page 17: Additional Functionality
External antenna at connector (J7) [default setting] • On board antenna (ANT1) 6.16.2 SATA For external storage, the SD 600eval board has one SATA 1.0 interface. The SATA signals of APQ8064 are routed to 13 Pin Slim line SATA connector (J1). 17/30 Arrow.com. -
Page 18: Magnetometer, Gyroscope & Accelerometer Interface
6.16.3 Magnetometer, Gyroscope & Accelerometer Interface Magnetometer, Gyro meter & Accelerometer interface are provided on SD 600eval board. The Magnetometer functionality is implemented using LIS3MDLTR (U46) and Gyro meter & Accelerometer functionality is implemented using LSM6DS3H (U45), interfaced with the APQ8064 via I2C interface. -
Page 19: Jtag
6.16.4 JTAG The 96Boards CE specification allows for an optional JTAG connector. On SD 600eval board, APQ8064 JTAG signals are routed to a non-standard Dual Row 20 Pin JTAG connector J17 (5-104655-3). The following tables show the JTAG Connector pin out: Signal Name Pin No. -
Page 20: Expansion Connectors
The 96Boards CE specification calls for a 4-wire UART implementation and an optional 2-wire UART on the Low Speed Expansion Connector. The SD 600eval board implements UART0 as a 4-wire UART that connects directly to the APQ8064 SoC. These signals are driven at 1.8V. -
Page 21: Gpio {A-L
The 96Boards CE specification calls for one SPI bus master to be provided on the Low Speed Expansion Connector. The SD 600eval board implements a full SPI master with 4 wires, CLK, CS, MOSI and MISO all connect directly to the APQ8064 SoC. -
Page 22: High Speed Expansion Connector
R128 for LDO15 (default) and R129 for S4 on SD 600eval board. • +5V: Driven by the 5.5A 5.0V buck regulator (U17). This buck regulator also powers both USB ports on SD 600eval board (max USB current limit of 500mA). -
Page 23: Mipi-Dsi0
CSI0 interface can be up to four lanes while CSI1 is up to two lanes. The SD 600eval board implementation supports a full four lane MIPI-CSI 2.0 interface on CSI0 and two lanes of MIPI-CSI 2.0 on CSI1 port. All MIPI-CSI signals are routed directly to/from the APQ8064 7.2.3 I2C {2/3}... -
Page 24: Audio Expansion Connector
The SD 600eval board implements this requirement by routing APQ8064 USB4 port signals to the High Speed Expansion Connector. 7.3 Audio Expansion Connector SD 600eval provides additional audio functionality by implementing Audio Codec WCD9310 (U3) on board. The output of WCD9310 is routed on two Audio Expansion Connectors (J4 & J6). 7.3.1 40-Pin Audio Expansion Connector The 40 Pins Audio Expansion connector is a board to board receptacle connector J4 (5177983-1). -
Page 25: 16-Pin Audio Expansion Connector
The following table shows the 16 Pin Audio Expansion Connector pin out: Pin Number Signal name Pin Number Signal name CDC_LINE_OUT1 CDC_LINE_OUT3 CDC_MIC2_P CDC_HPH_RM CDC_MIC3_P CDC_HPH_LP CDC_HPH_REF CDC_MIC_BIAS3 AUDIO_PORT1_DET# FM_RX_ANT 25/30 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. -
Page 26: Power Management Overview
The SD 600eval board supports incoming power through this connector. • A USB Type C port at 5V. Note: The SD 600eval board does not implement USB Type C port and cannot be powered over USB. 26/30 Arrow.com. Arrow.com. Arrow.com. -
Page 27: Power Source Selection And Sequencing
Upon applying power to the SD 600eval board, buck regulators will be enabled and will start regulating their target voltages. PMIC has 9 buck regulators, 21 LDO’S & 9 voltage switches. Out of these voltage generators, SD 600eval uses 31 voltage rails (9 buck regulators, 16 LDO’s &... - Page 28 28/30 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
- Page 29 The 96Boards CE specification calls for a minimum of one current sense resistor to be placed on the board permitting a basic power measurement functions. The SD 600eval supports power measurement for testing. A 0.01ohm resistor (R18) is placed in line to the SYS_DCIN power line coming from (J2) DC Jack (please note that this power measurement only works for SYS_DCIN from J2, it will not measure SYS_DCIN applied from the Low Speed Expansion Connector).
- Page 30 9. Mechanical specification Board Dimensions 30/30 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from...
