RIOTEC DC9257A Programming Quick Manual

Programming Quick Guide

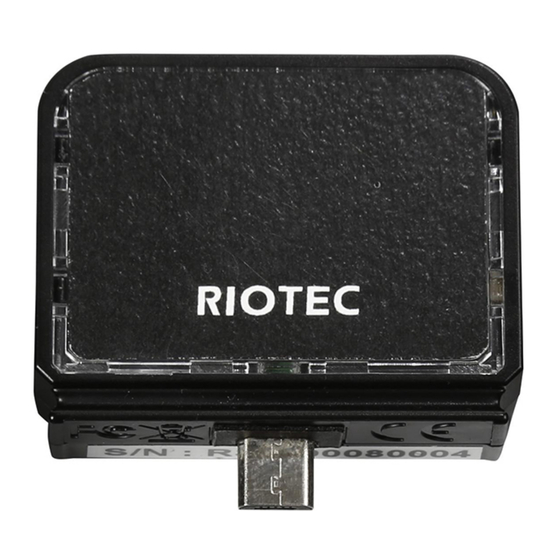

-DC9257A: Docking Scanner

Docking Scanner:

Gently tap the trigger area at the middle of scanner, to enable the
scanner (for reading barcode)
Up Side
Trigger
Area
The touch sensor area is around middle of the scanner as drawing shown.

Installation

They are Plug &Play USB (HID) devices. When plugged into your Android
OTG devices, it can be recognized as barcode scanner and begin to scan
the barcode. Before using scanner, make sure the smartphone or tablet
is fully charged. Open your APP, they can work as a keyboard input.

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have scanned the
incorrect codes, please scan the "Default" barcode. This will reset the
scanner to its factory defaults.
Demo
1
W010F01
Demo
2
WFFD980
Demo
3
W031A00
Lower Side
4

Barcode Configuration Method:

(Flow chart for setup procedure :)
Start
Configuration
Keyboard Language (For USB HID only)
Scan the appropriate country code as below to program the keyboard
layout for your country or language. As a general rule, the following
characters are supported, but need special care for countries other
(scan from 1 to 7)
than the United
5
(Original setting)
6
7
.
End
Configuration
1
States: @ | $ # { } [ ] = / ' \ < > ~
USA
Denmark
France
Italy
1D Symbologies – 1
CODE 39
ENABLE
Demo
CODE 39 Transmit
ENABLE Start/Stop Character
CODE 39
FULL ASCII
ENABLE
ENABLE CODE 11
Japan
.
Finland
Demo
Germany
Norway
DISABLE
.
Demo
DISABLE
DISABLE
DISABLE
