RIOTEC DC9257A Programming Quick Manual

Programming Quick Guide

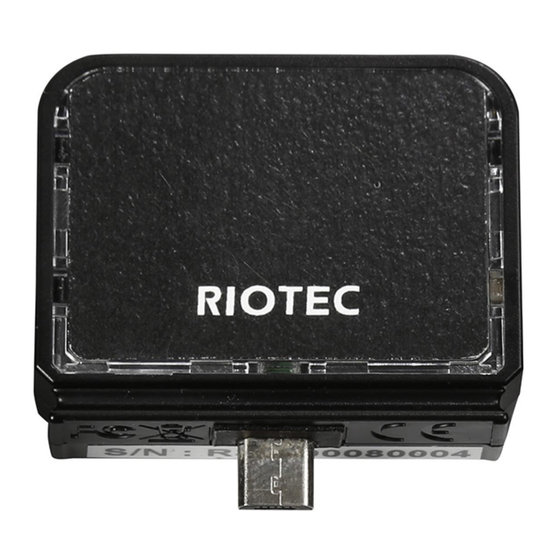

-DC9257A: Docking Scanner
-DC9267A: Wearable Scanner
Docking Scanner:
Gently tap the trigger area at the middle of scanner, to enable the
scanner (for reading barcode)
Wearable Scanner:
Press the ring trigger to enable the scanner.
Up Side
Trigger
Area
The touch sensor area is around middle of the scanner as drawing shown.

Installation

They are Plug &Play USB (HID) devices. When plugged into your Android
OTG devices, it can be recognized as barcode scanner and begin to scan
the barcode. Before using scanner, make sure the smartphone or tablet
is fully charged. Open your APP, they can work as a keyboard input.

Reset Configuration to Defaults

If you are unsure of the scanner configuration or have scanned the
incorrect codes, please scan the "Default" barcode. This will reset the
scanner to its factory defaults.
1
2
3
4
Lower Side

Barcode Configuration Method:

(Flow chart for setup procedure :)
Start
Configuration
Keyboard Language (For USB HID only)
Scan the appropriate country code as below to program the keyboard
layout for your country or language. As a general rule, the following
characters are supported, but need special care for countries other
(scan from 1 to 7)
than the United
5
(Original setting)
6
7
End
Configuration
1
States: @ | $ # { } [ ] = / ' \ < > ~
USA
Denmark
France
Italy
1D Symbologies – 1
CODE 39
ENABLE
CODE 39 Transmit
Start/Stop Character
ENABLE
CODE 39
ENABLE FULL ASCII
CODE 11
ENABLE
Japan
Finland
Germany
Norway
DISABLE
DISABLE
DISABLE
DISABLE
