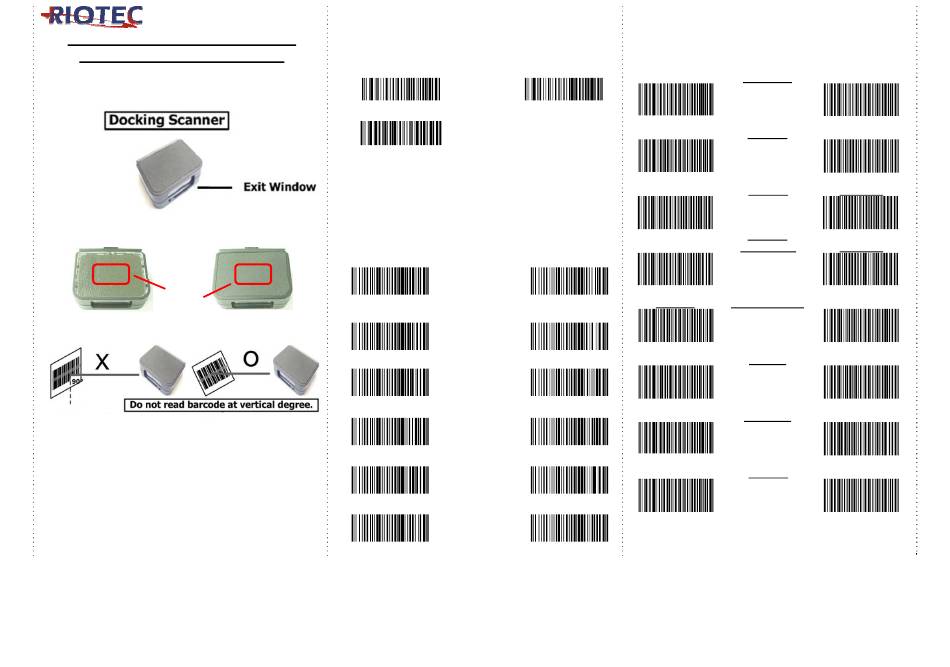

RIOTEC DC9253A Programming Quick Manual

Programming Quick Guide
-DC9253A: Docking Scanner
Docking Scanner:
Gently tap the trigger area at the middle of scanner, to enable the
scanner (for reading barcode)
Up Side
Trigger
Area
The touch sensor area is around middle of the scanner as drawing shown.
Installation
They are Plug &Play USB (HID) devices. When plugged into your Android
OTG devices, it can be recognized as barcode scanner and begin to scan
the barcode. Before using scanner, make sure the smartphone or tablet
is fully charged. Open your APP, they can work as a keyboard input.
Reset Configuration to Default :
If you are unsure of the scanner configuration or have scanned the
incorrect codes, please scan A1 to A2 for USB HID or B1 for RS232 or
USB Serial. This will reset the scanner to its factory defaults.
USB HID
A1
A2
*Note : Please install PL-2303 driver for USB serial
Keyboard Language (For USB HID only)
Scan the appropriate country code as below to program the
keyboard layout for your country or language. As a general
rule, the following characters are supported, but need special
Lower Side
care for countries other than the United States:
@ | $ # { } [ ] = / ' \ < > ~
USA
(Original setting)
Norway
Germany
Sweden
Denmark
Switzerland
RS232 / USB Serial.
B1
Italian
France
Vietnam
Spain
Portugal
Hungary
1
1D Symbologies – 1
CODABAR
ENABLE
Code 39
ENABLE
ENABLE
Code 32
Code 39
ENABLE FULL ASCII
ENABLE Interleaved 25
Code93
ENABLE
Matrix 25
ENABLE
ENABLE IATA 25
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
DISABLE
