FORD
2004- UP F-Series 150/250/350
PARTS INCLUDED
(1)
Black Plastic Handle
(1)
18mm Bullet Camera
(1) 19ft RCA Video Cable
(1) Instruction Sheet
TECH SERVICES
F-SERIESTAILGATE
HANDLE
WI
CAMERA
SAFETY PRECAUTIONS
CFD-03F
1. Please read through the entire instruction manual before starting any of the
installation
procedures.
2. This product is under Crux's 1 year manufacturer's warranty. Warranty may be voided in the case where
the device shows proof of being opened or
improper
extreme force.
All our products are manufactured under strict quality control. Each device is being tested before shipment. If nevertheless do occur problems
if you have technical questions, contact us directly: Crux Interfacing Solutions Tech Support
1 (855) 822-1348 (Mon- Fri- 9:00AM-5:00PM) Pacific Time

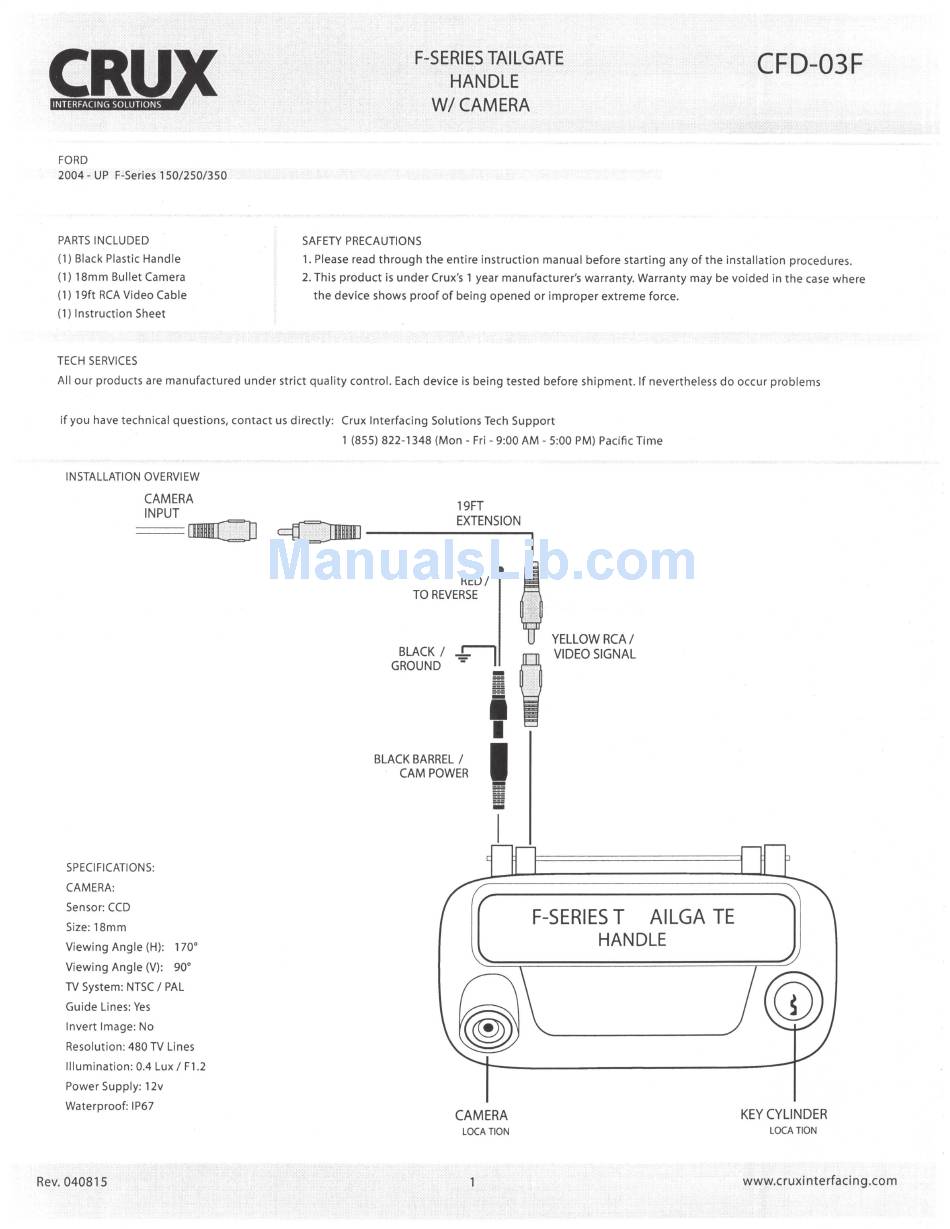

INSTALLATION OVERVIEW
CAMERA
INPUT
19FT
====!mmrr.
!
:· ·
D
c::qJi]!i
iiUmi----E-XT_E_NS_IO_N_,
SPECIFICATIONS:
CAMERA:
Sensor: CCD
Size: 18mm
Viewing Angle (H): 170°
Viewing Angle (V):
90°
TV System: NTSC
I
PAL
Guide Lines: Yes
Invert Image: No
Resolution: 480 TV Lines
Illumination: 0.4 Lux
I
F1.2
Power Supply: 12v
Waterproof: IP67
Rev.040815
RED/
TO REVERSE
BLACK I
.!.
I
GROUND
BLACK BARREL I
CAM POWER
!!!!
i
I
I
~
iii
CAMERA
LOCATION
'
..
~
i
YELLOW RCA/
VIDEO SIGNAL
F-SERIES T
AILGA TE
HANDLE
KEY CYLINDER
LOCATION
