Installing the Device
2.5.2 Connecting External PoE Power
7.
8.
2.5.2
Connecting External PoE Power
The RUGGEDCOM RSG2100P supports up to four 10/100Base-TX Power-over-Ethernet
(POE) Ports that require power from an external source.
Note
For IEC 61850 compliance, use an IEC 61850 compliant PoE power supply with
power cabling no longer than 3 m (118 in).
Otherwise, Siemens recommends using the RUGGEDCOM RPS1300 switch-mode
AC power supply. For more information about this power supply, refer to
support.industry.siemens.com/cs/ww/en/view/109478699.
16
Using a #6 ring lug and #6-32 screw, secure the ground terminal on the power
source to the chassis ground connection on the device. Make sure the lug is
tightened to 1.7 N·m (15 lbf·in).
1
Stainless Steel Stud
1
#6-32 Screw
2
#6 Ring Lug
3

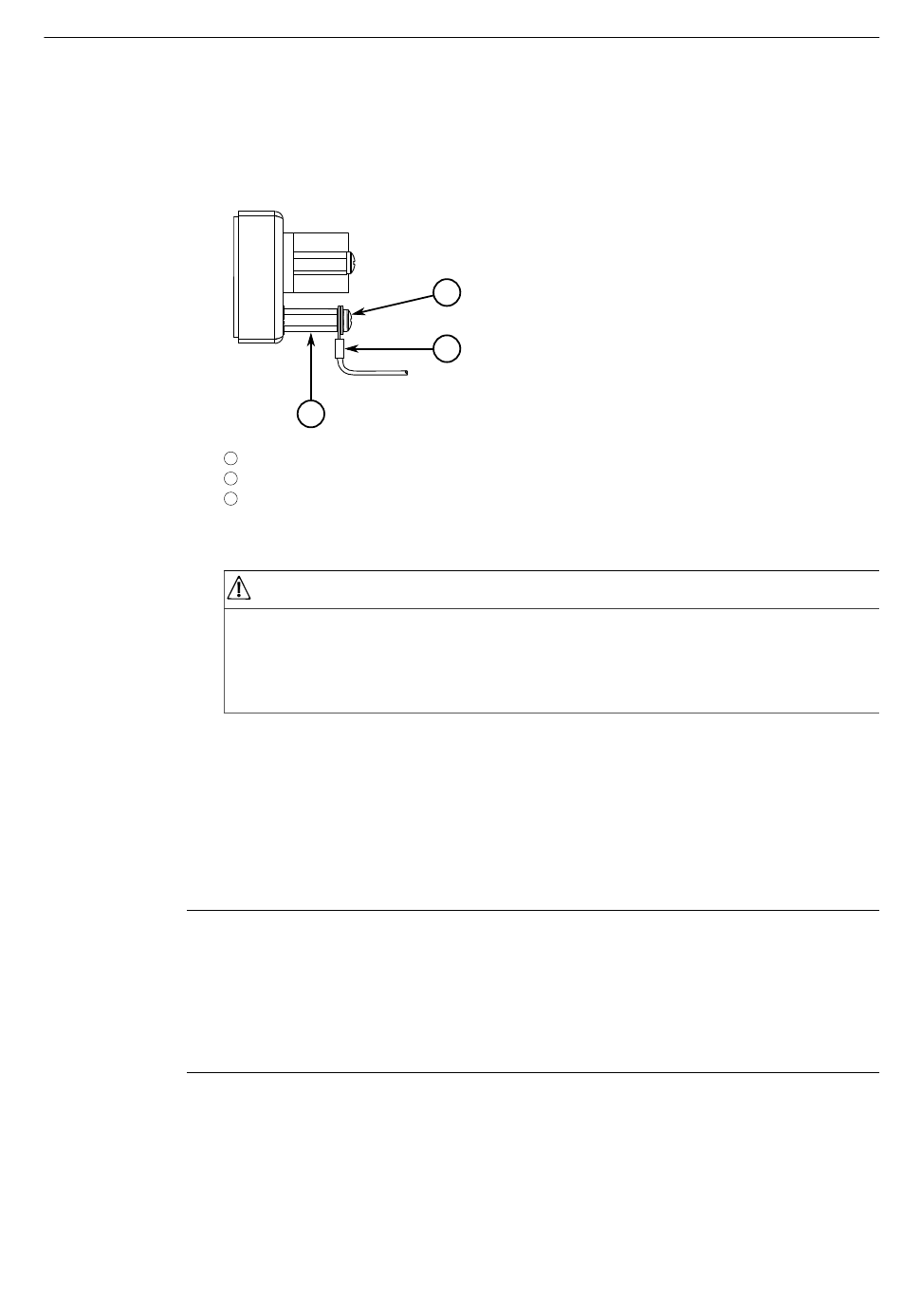

Figure 2.6
Chassis Ground Connection
DANGER
Electrocution hazard – risk of death, serious personal injury and/or damage
to the device
Make sure the supplied terminal block cover is always installed before the
device is powered.
Install the terminal block cover.
2
3
https://
RUGGEDCOM RSG2100P
Installation Manual, 04/2022, C79000-G8976-1041-20
