- Page 1 Patient Compass Your companion for the therapy devices* prisma20C / 20A / 25S / 25S-C / 25ST / 30ST / CR * availability of devices differs per region...
- Page 2 Filter compartment Touchscreen Handle Release catch Device outlet port Connection for power supply cable Tube heating Device name SD card slot On/Off key...
- Page 3 JOURNAL, a software program that assists you in managing your therapy with prisma20C and prisma20A. We wish you all the best! This document does not replace the instructions for use.
-
Page 4: Table Of Contents
Table of contents Preparing the therapy device ...............5 Cleaning the therapy device ............. 16 Connecting the therapy device to the power supply ....5 Humidifier prismaAQUA..............18 Connecting the breathing tube and mask ........5 Preparation prior to first use ............18 Making therapy device settings ............6 Filling with water ................ -
Page 5: Preparing The Therapy Device
Preparing the therapy device The therapy device has to be connected to the electrical power supply. The breathing tube and mask have to be connected to the device. Connecting the therapy device to the power supply Connecting the breathing tube and mask a. -
Page 6: Making Therapy Device Settings
Making therapy device settings Your therapy device has to be configured before you can use it. The authorized dealer often makes the configuration settings for you. If that is not the case, you can easily do it yourself. Making device settings with SD card With the help of an SD card prepared by your dealer, making the settings is child’s play. -
Page 7: Using The Sd Card
Using the SD card The SD card is included in your device‘s scope of supply. The device saves the settings automatically as soon as the SD card is inserted. You also can save your therapy data on the SD card and easily make them available to your physician or authorized dealer. With the SD card and the patient software prisma JOURNAL you can create your own therapy diary. -
Page 8: Explanation Of Symbols And Displays On Screen
Explanation of symbols and displays on screen When you switch on your therapy device, information about the patient-specific operating hours is displayed on the screen for 30 seconds. If your dealer, for example, asks about the operating hours, you can easily read them within the 30 seconds. Then the screen shows that the device is in standby mode. - Page 9 Key functions Navigate forwards Time of day with wake-up time to next screen Set by pressing the time. Screen is in standby mode Navigate backwards one screen Info menu key calls up Info menu. Confirm Wake-up time Alarm is ON. Displays the set Cancel wake-up time.
-
Page 10: Starting And Ending Therapy
Starting therapy and ending therapy You have two ways to start your therapy: Press the On/Off key briefly When the autoSTART-STOP function is activated: Breathe deeply into the mask and your therapy device will switch on automatically. Make sure that the breathing tube is placed so that it cannot be squashed and cannot prevent you from falling asleep. Screen in ”Therapy“... - Page 11 You also have two ways to end your therapy: Press the On/Off key briefly When the autoSTART-STOP function is activated: Take off the mask. The therapy will stop automatically after a few seconds. The most recent (last) therapy session is displayed. Depending on the device settings made by your doctor or The number of green checkmarks (maximum three) dealer, only the usage time may be shown.
-
Page 12: Making Settings In The Menu
Making settings in the menu You can make the settings for comfort, accessories, time and device parameters in the settings menu. The therapy device has to be in standby mode while you do so. The availability of the listed menu items depends on the ventilation mode and the therapy device configuration (settings). -
Page 13: Setting The Time
Setting the time Setting the time zone Setting the wake-up time Press the Clock key and then Time Call up the screen below (b.) to set To set the wake-up time on your to call up the screen shown below the time zone. -
Page 14: Autostart-Stop
autoSTART-STOP softSTART Your therapy device is equipped with the autoSTART-STOP The softSTART function is suitable for patients who find high pressure unpleasant while they are awake and therefore cannot function to make its operation even more convenient. When it fall asleep. You can use the softSTART key to switch on or off is activated, you can switch on the device simply by breathing the softSTART function. -
Page 15: Energy-Saving Function
softPAP – Exhalation relief Energy-saving function Leakage alert The softPAP levels 1 and 2 are intended You can activate the Energy-saving Here you can set whether an alarm function in the main menu of your should be triggered in case of a leak. for patients who find it unpleasant to therapy device. -
Page 16: Cleaning The Therapy Device
Cleaning the therapy device Weekly Monthly a. Disconnect the therapy device from electric power. Cleaning the air filter (gray filter): b. If applicable, remove the humidifier. a. Remove the air filter. c. Wipe the device housing with a damp cloth. b. - Page 17 Monthly Daily Replace optional pollen filter (white filter): Clean the breathing tube: a. Remove the air filter. a. Remove the breathing tube from the therapy device. b. Remove and dispose of pollen filter. b. Clean the tube with warm water and dishwashing c.
-
Page 18: Humidifier Prismaaqua

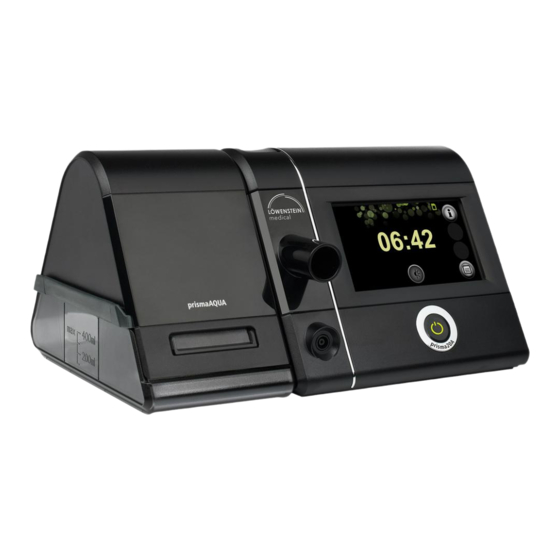

prismaAQUA humidifier The prismaAQUA humidifier is available as an accessory. It is used with the therapy device by patients who have dry upper airways or who find the respiratory air uncomfortably cool. Preparation prior to first use Remove the protective transport paper and clean the humidifier as described in ”Cleaning the humidifier“ on Page 22. Filling with water a. -
Page 19: Alternative Filling
Alternative filling In the following we show you an alternative way to refill the humidifier quickly. a. Press the release catch on the therapy device. c. Tilt the humidifier carefully to the left and place it on its side. b. Remove the humidifier from the side of the device. d. -
Page 20: Connecting To Therapy Device
Connecting to therapy device a. Press the release catch on the therapy device. Then remove the cover from the device. b. Push the humidifier onto the therapy device from the side until you hear the release catch click into place. Make sure that both devices are on a solid surface, e.g., a table. -
Page 21: Making Settings For Humidifier
Making settings for humidifier When the humidifier is connected to the therapy device, it is ready for use. The humidifier starts automatically when the therapy starts. To make your therapy even more comfortable, you can preheat the humidifier prior to starting your therapy. To do so, press the humidifier key , set your preferred humidifier level and start your therapy a few minutes later. -
Page 22: Cleaning The Humidifier
Cleaning the humidifier We recommend that you clean your humidifier weekly. a. Remove the humidifier from the therapy device c. Pour out any water in the humidifier. (see page 19). d. Remove the humidifier insert from the top of the humidifier. -
Page 23: Accessories
Accessories The following accessories which increase comfort are available from your dealer: prismaAQUA humidifier h. Insert the humidifier insert in the top of the humidifier again. To treat dry upper airways or respiratory air the i. Before the next use, fill the humidifier with water and patient perceives to be cold connect it to the therapy device. - Page 24 Löwenstein Medical Technology Kronsaalsweg 40, 22525 Hamburg Germany T: +49 40 54702-0 F: +49 40 54702-461 info@loewensteinmedical.de www.loewensteinmedical.de...
