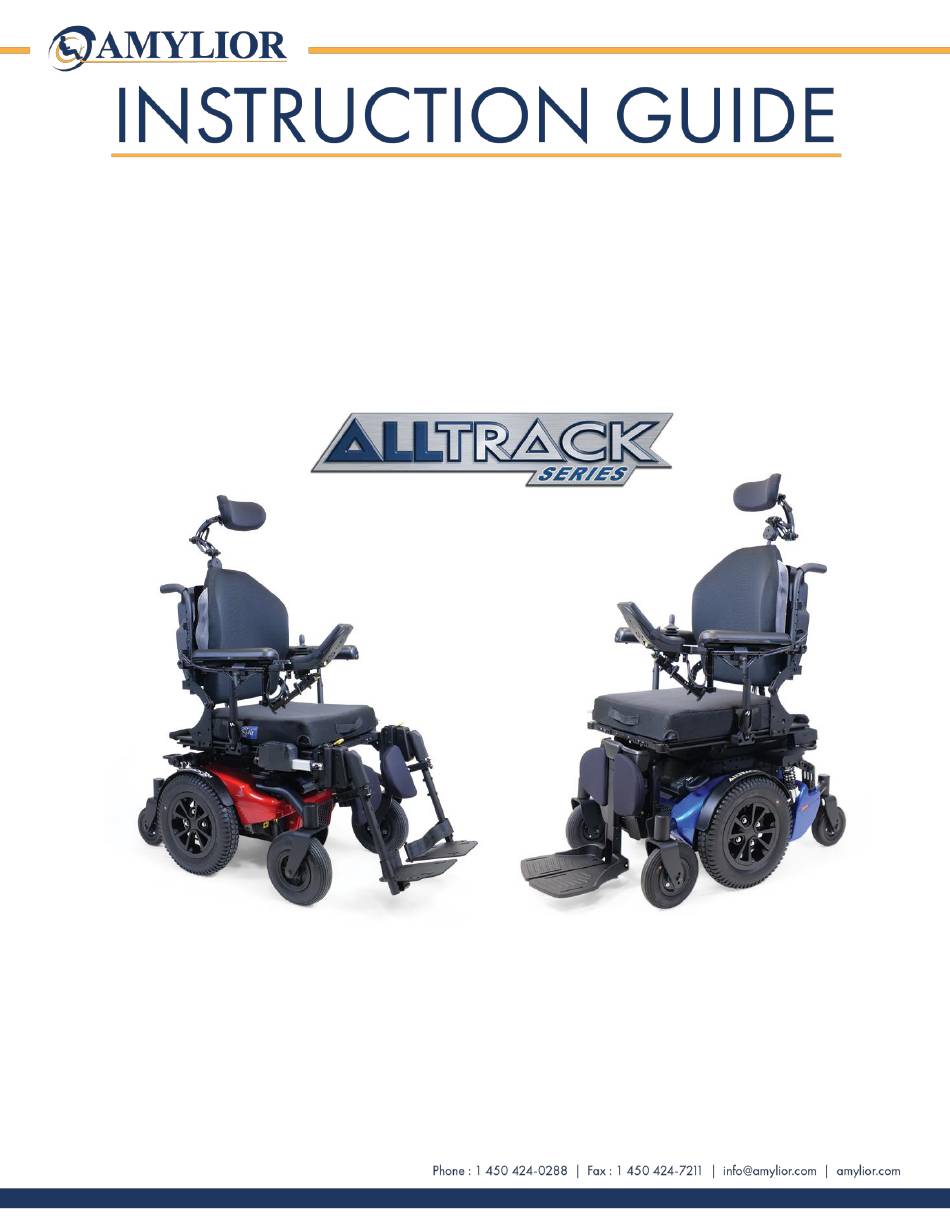

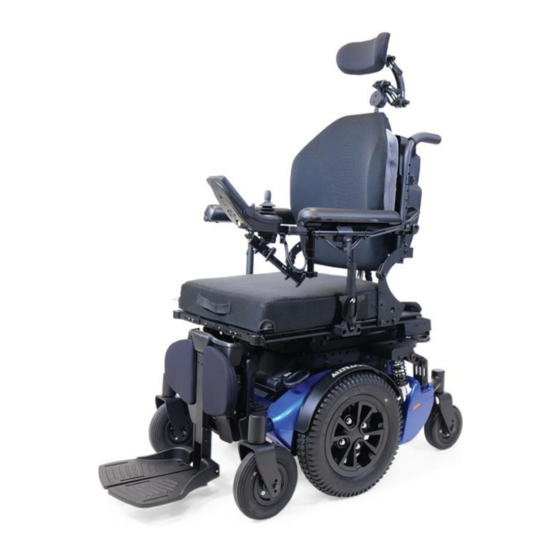

- Page 1 CABLE WIRING FROM JOYSTICK, THROUGH ARMREST, TO BACKREST...
- Page 2 Joystick Cable Wiring (cont’d) The instructions contained in this guide will specify how to handle, wire, and secure cables from the joystick to the backrest. WARNING: Regardless of where a cable is attached, it is very important not to let any cable stick out from the wheelchair or form a loop that could catch on external objects when moving around in the chair.
- Page 3 Joystick Cable Wiring (cont’d) Introduction : The instructions contained in this guide will specify how to handle, wire, and secure cables from the joystick to the backrest. Tie-wraps: • B00051 = 5.5” (140 mm) • B00052 = 7.5” (190 mm) •...
- Page 4 Joystick Cable Wiring (cont’d) Cables inside the module cover a) The following instructions apply to both the base frame support (Image C) and the tilt module (Image D). b) Using cutters, cut and remove B00051 and B00052 ties as shown in images C and D. c) Adjust length of cable according to changes done.
- Page 5 Joystick Cable Wiring (cont’d) 2. How to attach excess cable for a power reclining backrest a) Using cutters, cut and remove B00051 and B00052 ties as shown in image E. b) Adjust length of cable according to changes done. c) Coil cables as tightly as possible on the backrest plate and attach together using B00051/B00052 ties. d) Attach cables together with B00051/B00052 ties at the same location as shown below.
- Page 6 Joystick Cable Wiring (cont’d) 3. Adjusting a fixed or swing away joystick Changing the angle of a joystick mount from the factory-standard of 0° to 35° a) Using cutters, cut and remove B00051 ties (A) as shown in image F. b) To change the angle from 0°...
- Page 7 Joystick Cable Wiring (cont’d) Reversing the joystick mount angle from 35° back to 0° a) Using cutters, cut and remove B00051 tie (B) as shown in image G. b) To change the angle from 35° to 0°, (Orange arrow, image F) slide arm all the way up the vertical rod as shown in image F.
- Page 8 Joystick Cable Wiring (cont’d) 4. Adjusting armrest height REMINDER : The white tie-wraps shown in the following images are for illustrative purposes only, as these ties are normally black. Before making any adjustments, it is important to note where and how the cables are attached so that they are placed in the same location and attached in the same way.
