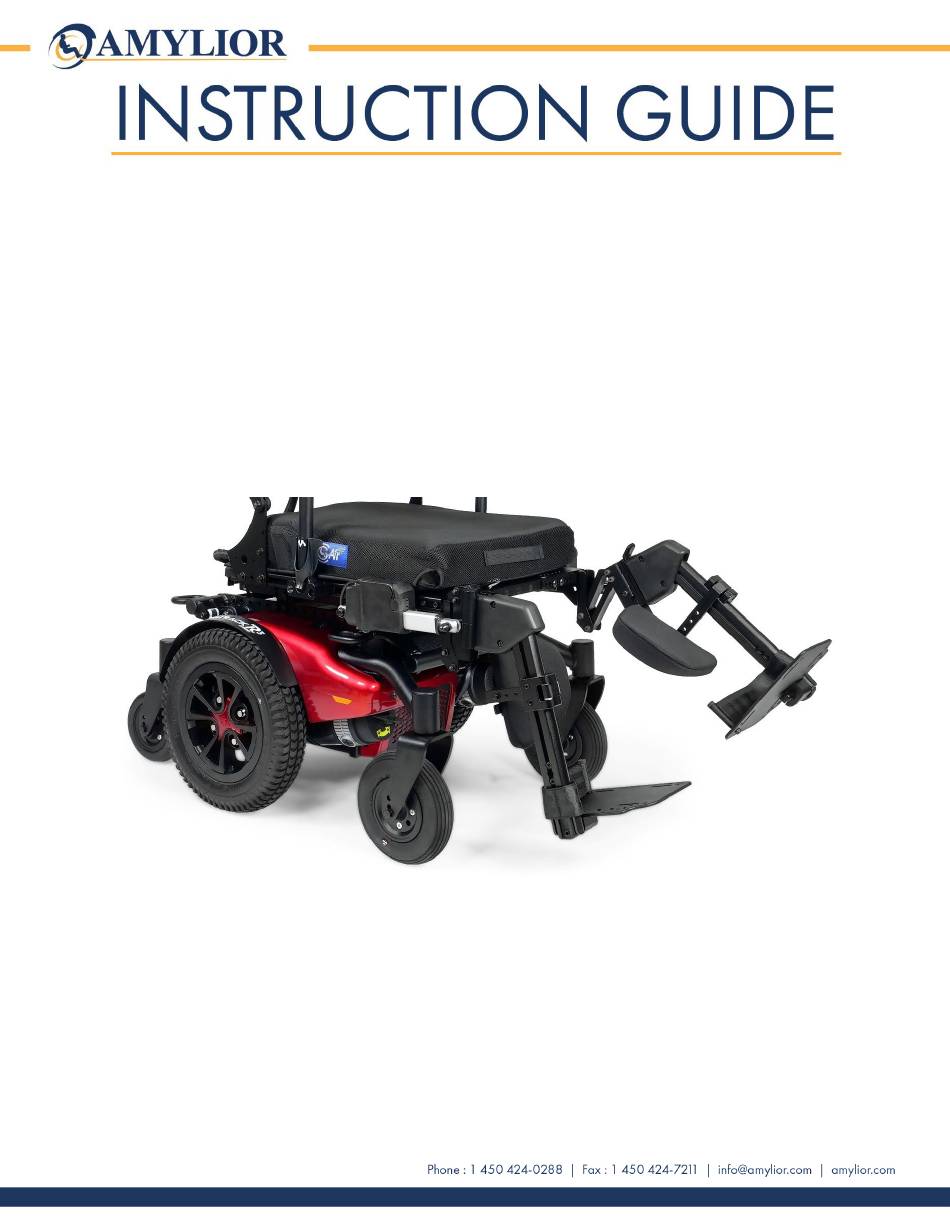

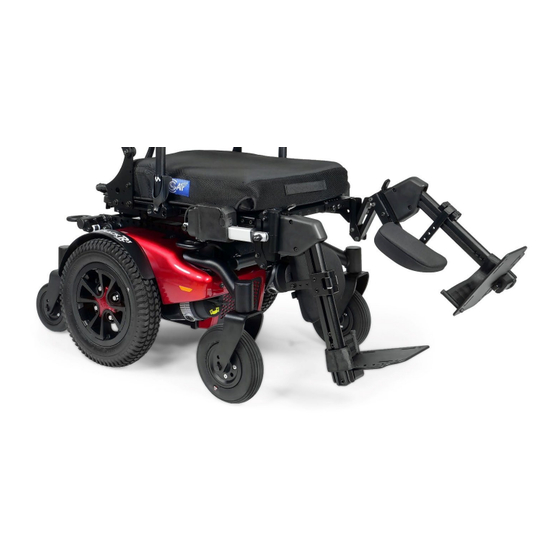

- Page 1 Adjusting the new SIGNATURE front rigging (cont’d) “SIGNATURE” AJUSTING THE NEW FRONT RIGGING AND RELATED COMPONENTS IG ︱PD-A20602 | Signature Front Rigging | R01 | 2023-12...
-
Page 2: Table Of Contents
4.3. Depth adjustment ............................14 Adjusting Knee Angle ............................13 5.1 For Standard (STD) or Pediatric Legrests....................15 5.2. For Heavy-Duty (HD) Footrests, Manual & Powered Elevating/Articulating Legrests ......17 IG ︱PD-A20602 | Signature Front Rigging | R01 | 2023-12... -
Page 3: Introduction
Adjusting the new SIGNATURE front rigging (cont’d) INTRODUCTION The following instructions specify how to perform all adjustments related to the new Signature front rigging, including standard (STD) and heavy-duty (HD) swing-away footrests, pediatric footrests and elevating & articulating legrests (ALR) both manual and power. Please note, the manual and power elevating legrests are comprised of the same hanger used with our HD footrests. -
Page 4: For Pediatric Models
NOTE: If the footplate is difficult to flip up or down, see infinite within the following ranges: NOTE in section 2.2 for tension adjustment. SOFLP5: 5” – 10” (125-255 mm) SOFLP5L: 5” – 12” (125-305 mm) IG ︱PD-A20602 | Signature Front Rigging | R01 | 2023-12... -
Page 5: Adjusting Footplate Angle
If the footplate is difficult to flip up or down, use a 5 mm Allen key to tighten/loosen the bolt/nut (B) to adjust the tension. Ideally, the footplate should maintain its angle without dropping downwards, while remaining easy to handle. IG ︱PD-A20602 | Signature Front Rigging | R01 | 2023-12... - Page 6 Secure the footrest adapter on its axle, tightening both bolts (A) sufficiently to prevent the angle from changing during use. IG ︱PD-A20602 | Signature Front Rigging | R01 | 2023-12...
-
Page 7: Adjusting Footplate Depth
Retighten bolts (B) to secure the footplate to its adapter. IG ︱PD-A20602 | Signature Front Rigging | R01 | 2023-12... -
Page 8: For Fixed Footplate Adapters
Be careful not to drop the footplate or the nuts & bolts! c) Retighten bolts (C) to secure the footplate to its adapter. IG ︱PD-A20602 | Signature Front Rigging | R01 | 2023-12... -
Page 9: Adjusting Calf Pads
T-nut from the mounting bracket. c) Tighten bolts (A) to secure calf pad to legrest NOTE: The calf support is removable and can be extrusion. rotated for better access some bolts. . IG ︱PD-A20602 | Signature Front Rigging | R01 | 2023-12... - Page 10 (B) should be inserted into the convex slot at infinite within a range of 4¼” (110 mm). the top extrusion. Be careful not to unscrew the bolts too far, to avoid separating the double T-nut from the support. IG ︱PD-A20602 | Signature Front Rigging | R01 | 2023-12...
- Page 11 SOFLA12: 12½” - 17½” (320-445 mm) SOFLA14: 14½” - 19½” (370-495 mm) NOTE: The calf support is removable and can be rotated for better access some bolts. . IG ︱PD-A20602 | Signature Front Rigging | R01 | 2023-12...
-
Page 12: Depth Adjustment
(see image a). Adjustment is at ¾" (20 mm) intervals within a range of 2¼" (60 mm). c) Tighten the calf pad bolt. IG ︱PD-A20602 | Signature Front Rigging | R01 | 2023-12... -
Page 13: Adjusting Knee Angle
For 80° or 90° angles on Pediatric legrests you must: Replace the STD padded protectors • (1002505/1003108) with the Pediatric padded protectors (1004714/1004715). Add plastic end caps (1004687) at the • top of legrests. IG ︱PD-A20602 | Signature Front Rigging | R01 | 2023-12... -
Page 14: For Heavy-Duty (Hd) Footrests, Manual & Powered Elevating/Articulating Legrests
(B) without losing the nut on the other side. Rotate the legrest extrusion to align its hole with the angle hole. See side image to select desired angle. IG ︱PD-A20602 | Signature Front Rigging | R01 | 2023-12... - Page 15 Re-insert bolt (B) with nut and tighten bolt (A). e) Place the protection cover back on, re-insert and tighten all 4 bolts (C) using a 3 mm Allen key. IG ︱PD-A20602 | Signature Front Rigging | R01 | 2023-12...
