- Page 1 AMYLIOR OUNTED NTERFACE ® ATRX LITE ACKS (ELITE & ELITE-HD MODELS) INSTALLATION/SET-UP IMPORTANT! The installation instructions contained in this manual must only be carried out by a qualified service technician. TRD0686 Rev A...
- Page 2 This manual may not be reproduced or reprinted either partly or completely without previous written consent from Motion Concepts or its statutory representatives. This user manual is compiled from the latest specifications and product information available at the time of publication. We reserve the right to make any necessary as they become necessary. Any changes made to our products may cause slight variations between the illustrations and explanations in this manual and the product you have purchased.
-
Page 3: User Warning
1.1 OVERVIEW SAFETY SYMBOLS: Proper set-up and safe installation of the Amylior Interface Mounting Kit depends on your own good judgement and common sense, as well as that of your provider, caregiver and/or health professional. The following symbols are used throughout this user manual to identify warnings, cautions and important notes. -
Page 4: Safety Information
OEM Wheelchair Owners Manual (provided separately) or contact Amylior for further assistance. Customer Service: 1-888 453-0311 www.amylior.com 2.2 GENERAL SAFETY AND INSTALLATION WARNINGS! - Page 5 3.0 A MYLIOR LITE NTERFACE NSTALLATION 3.1 FITTING THE ELITE BACK TO THE AMYLIOR WHEELCHAIR: PRIOR to installation, verify the diameter of the wheelchair back canes (A) and the width between back canes (B) Contour Hardware fits Back Model #...
- Page 6 3.0 A MYLIOR LITE NTERFACE NSTALLATION 3.2 AMYLIOR CANE MOUNTED INTERFACE KITS 3.2.1 CANE MOUNTED INTERFACE KIT for ELITE BACKS (x4) *only if required (x4) ELITE C OUNTED NTERFACE 2 - Amylior-E2 Mounting Bracket 4 - Cane Insert for 7/8” (22 mm) back canes* (E) 4 - MiniSet Cane Clamp Assembly (B) 4 - Cane Insert for 3/4”...
- Page 7 (1). Ensure both screws are fully secured. 4. Repeat steps 2. and 3. to install the Amylior-Elite mounting bracket onto the opposite side of the back shell. (*NOTE: the Amylior-Elite Mounting Brackets (Interface Kits) are designed for installation onto wheelchair back canes that are the same nominal width as the Elite back shell.
- Page 8 HD back shell, and into the threaded pem nuts on the backing plate (D) (2). Ensure both screws are fully secured to the backing plate. 5. Repeat steps 2-4. to install the Amylior-Elite mounting bracket onto the opposite side of the HD back shell.
- Page 9 Mounting Bracket Installation Fig. 3 (Matrx Elite Heavy-Duty Back) REAR VIEW (standard mounting bracket orientation illustrated) 3.4 CANE CLAMP INSTALLATION IMPORTANT! The cane clamps must be positioned to avoid interference with other cane mounted accessories/components, while still aligning with the mounting brackets on the Elite/Elite-HD Back.

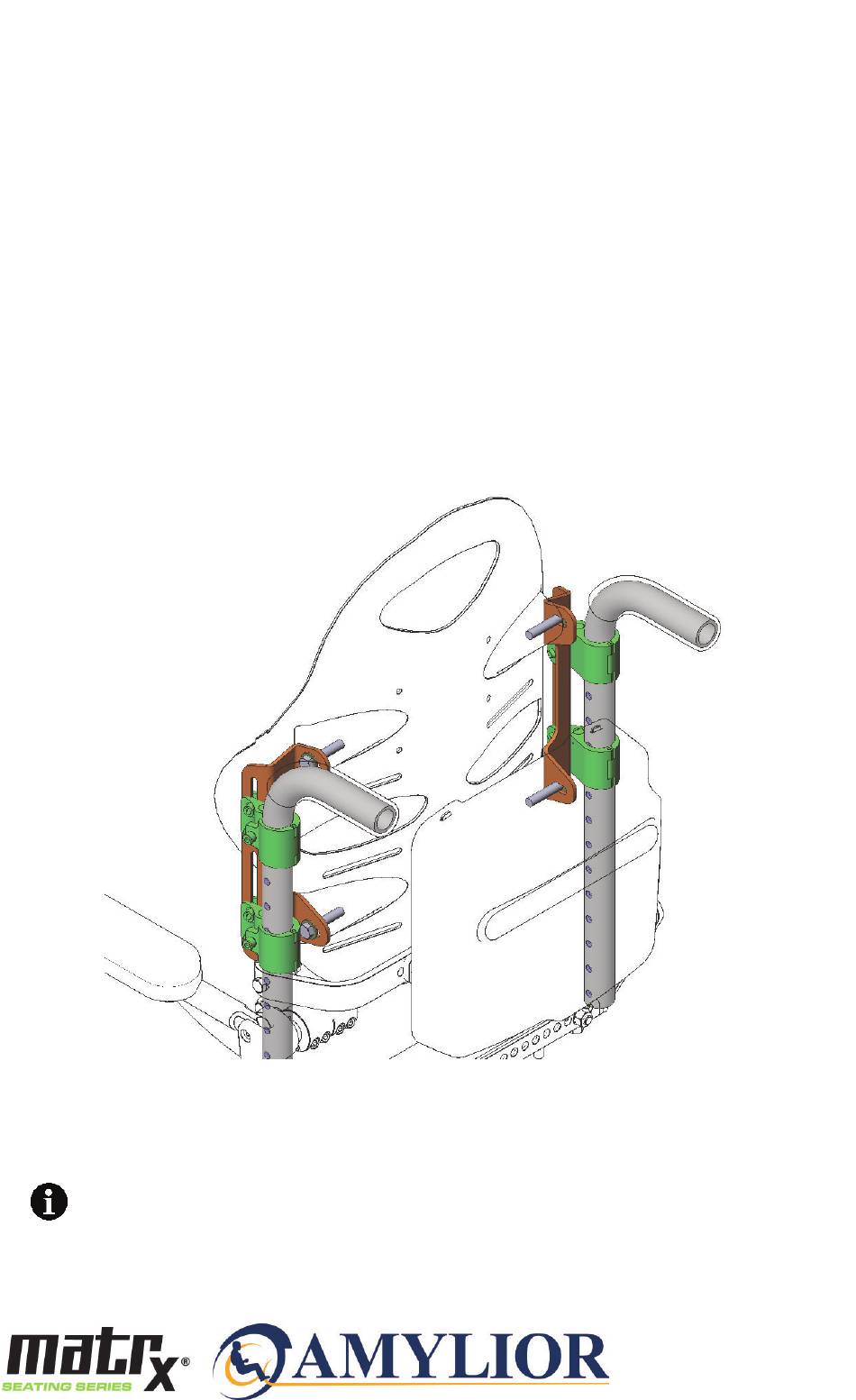

- Page 10 (provided Fig. 5b Install Cane Clamps at the same height REAR VIEW NOTE: Further fine-tune back height adjustments can be made (via the Amylior- Elite mounting brackets) following installation of the E2 Back- see section 3.5.1 - 10 -...
- Page 11 3.5 ELITE/ELITE-HD BACK INSTALLATION & SET-UP IMPORTANT! PRIOR INSTALLATION • Verify that the cane clamp assemblies are properly spaced to align with the interface mounting brackets, and installed at the same height on the left and right back canes. • Although fine-tune height adjustments will be available following installation of the Elite/Elite-HD Back, it is recommended to verify the final back height/mounting position prior to beginning the installation.
- Page 12 3.5 ELITE/ELITE-HD BACK INSTALLATION & SET-UP (...cont’d) Fig. 6b ELITE Back Installation F R O N T V I Fig.7a ELITE-HD (Heavy-Duty) Back Installation (standard mounting bracket orientation shown) - 12 -...
- Page 13 (refer to Fig. 8a/b & Fig 9) NOTE: The Amylior-Elite Mounting Brackets allow for up to 7/8” (22mm) of height adjustment via the vertical slots in the mounting brackets. If the slot does not provide sufficient height adjustment, an adjustment to the cane clamp position or a change to the bracket orientation may be required.
-
Page 14: Inspection And Maintenance
3.5 ELITE/ELITE-HD BACK INSTALLATION & SET-UP (...cont’d) Fig. 9 Back Height Adjustment/Set-Up ELITE ELITE-HD 4”- 5” (10-13cm)* 4”- 5” (10-13cm)* E A T U S H I O N E A T U S H I O N *Note: The recommended back height is provided as a guideline only. The final back height should be adjusted/set to best meet the end user’s needs- see Important! note below. - Page 15 4.2 REUSE/RECYCLING WARNING! Risk of Injury Always have an authorized dealer inspect the product for damage or wear PRIOR to transferring the product to a different user. If any damage is found, DO NOT use this product. Failure to heed these warnings may result in severe injury. This product is suitable for re-use.
- Page 16 Motion Concepts www.motionconcepts.com Canada 700 Ensminger Rd. Suite 112 84 Citation Dr., Unit 1-10 Tonawanda, NY 14150 Concord, Ontario L4K 3C1 888-433-6818 866-748-7943 Copyright © 2023 Motion Concepts LP. All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Motion Concepts. Trademarks are identified by ™...
