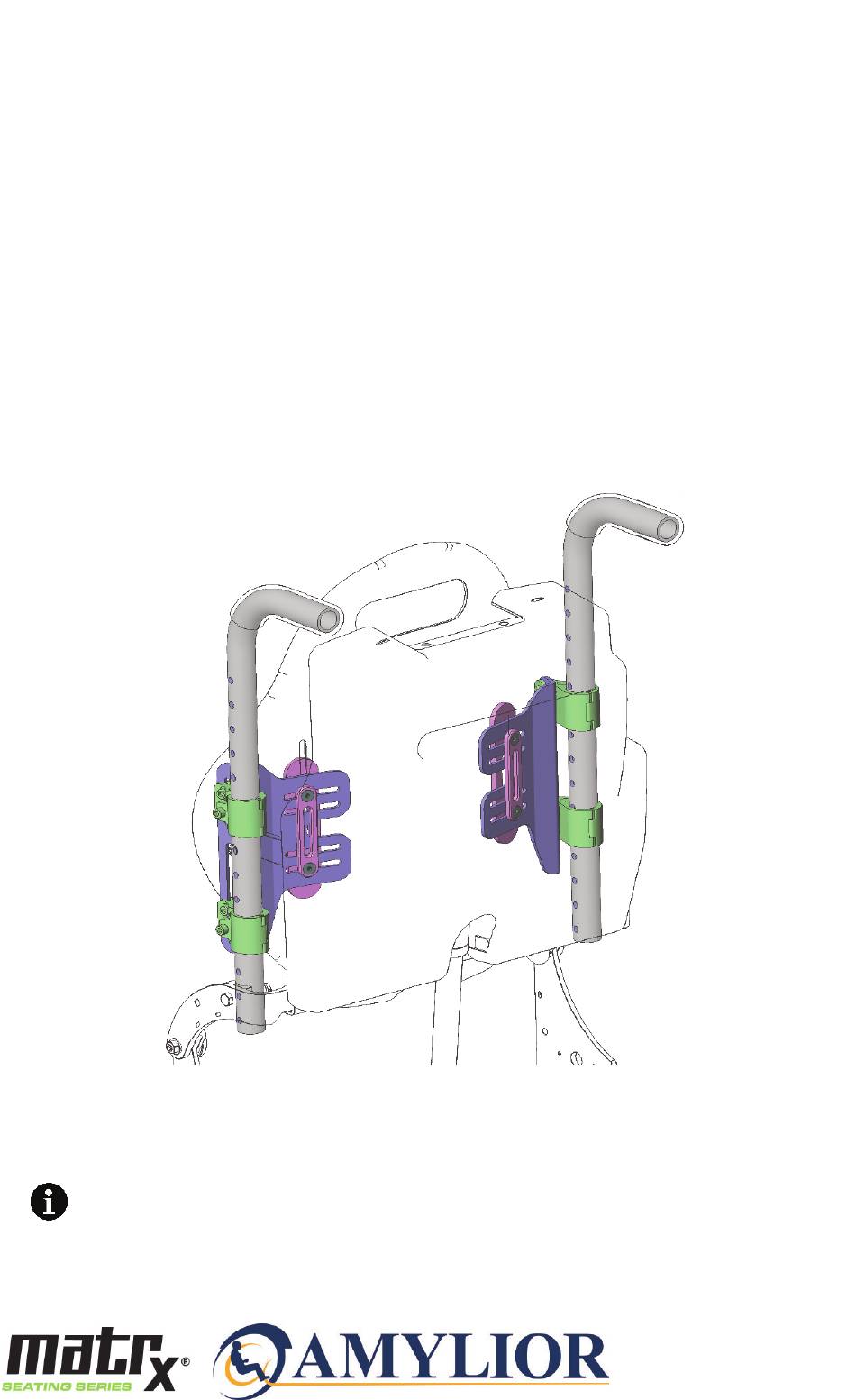

AMYLIOR OUNTED NTERFACE E2 B ATRX ® ACKS (E2 STANDARD & E2 DEEP MODELS) INSTALLATION/SET-UP IMPORTANT! The installation instructions contained in this manual must only be carried out by a qualified service technician. TRD0685 Rev A...
Page 2
This manual may not be reproduced or reprinted either partly or completely without previous written consent from Motion Concepts or its statutory representatives. This user manual is compiled from the latest specifications and product information available at the time of publication. We reserve the right to make any necessary as they become necessary. Any changes made to our products may cause slight variations between the illustrations and explanations in this manual and the product you have purchased.
1.1 OVERVIEW SAFETY SYMBOLS: Proper set-up and safe installation of the Amylior Interface Mounting Kit depends on your own good judgement and common sense, as well as that of your provider, caregiver and/or health professional. The following symbols are used throughout this user manual to identify warnings, cautions and important notes.
IMPORTANT! For transportation warnings, guidelines and safety information on wheelchair seating combinations tested and approved for occupied transport within a motor vehicle, please refer to the OEM Wheelchair Owners Manual (provided separately) or contact Amylior for further assistance. Customer Service: 1-888 453-0311 www.amylior.com 2.2 GENERAL SAFETY AND INSTALLATION WARNINGS!
Page 5
3.0 A -E2 B MYLIOR NTERFACE NSTALLATION 3.1 FITTING THE E2 BACK TO THE AMYLIOR WHEELCHAIR: PRIOR to installation, verify the diameter of the wheelchair back canes (A) and the width between back canes (B) Contour Hardware fits Back Model #...
2” (51mm) wider or 1” (25mm) narrower than the nominal back width. NOTE: The Amylior-E2 Mounting brackets may be installed in a standard or inverted orientation, depending on the final desired back height and/ or to provide clearance for other cane mounted accessories. Both orientations allow for further fine-tune back height...
E2 back shell, then secure* the adjustment screws into the threaded nut plate (D) (on the inside of the back shell). 4. Repeat steps 1. and 2. to install the Amylior-E2 mounting bracket onto the opposite side of the back shell.
Page 8
3.0 A -E2 B MYLIOR NTERFACE NSTALLATION 3.4 CANE CLAMP INSTALLATION NOTE: The mounting position of the cane clamps should be estimated so that, when installed, the installed E2 back will be close to the desired back height. A higher cane clamp mounting position typically works best.
Page 9
(provided Fig. 4b Install Cane Clamps at the same height REAR VIEW NOTE: Further fine-tune back height adjustments can be made (via the Amylior-E2 mounting brackets) following installation of the E2 Back- see section 3.5.1 - 9 -...
Page 10
Installation, Width & Height Adjustment Instructions: 1. PRE-INSTALLATION/WIDTH ADJUSTMENT: (refer to Fig 7). Loosen the adjustment screws (A) on both Amylior-E2 mounting brackets (B), and adjust the bracket width (1) equally, so that mounting brackets will align flush with the (left & right) cane clamp assemblies (E).
Page 11
T V I E W 4. FINAL BACK SET-UP: (refer to Fig. 9.) The Amylior-E2 mounting bracket interface is designed to allow for simultaneous horizontal and vertical (height) adjustment of the E2 Back (relative to back canes). Whenever possible, it is recommended that final set-up be performed with the client seated in the chair.
Page 12
3.5 E2 BACK INSTALLATION, SET-UP & ADJUSTMENT (...cont’d) 5. Following adjustment, fully tighten the adjustment screws (A) on both mounting brackets (B) to secure the E2 Back in the desire position. Fig. 9 Final Back Set-Up Height/Centering Adjustments) use hash marks along vertical slots to adjust the mounting brackets...
4.0 M AINTENANCE 4.1 INSPECTION AND MAINTENANCE WARNING! Risk of injury or damage • Do not continue to use this product if problems or damage are discovered; • Corrective maintenance can be performed at or arranged through your service provider Weekly: Inspect ALL fasteners weekly to ensure that mechanical connections and attaching hardware are tightened securely.
Page 14
5.0 E2 B CCESSORIES 5.1 E2 HEADREST INTERFACE PLATE The E2 Headrest Interface Plate (A) is included only with Matrx E2 Backs for Back Heights ranging from 14” (36cm) up to 20” (51cm). The E2 headrest interface is compatible with most industry standard headrest mounting hardware. The headrest interface plate installs directly onto the E2S/E2D back shell using the hardware provided*.
