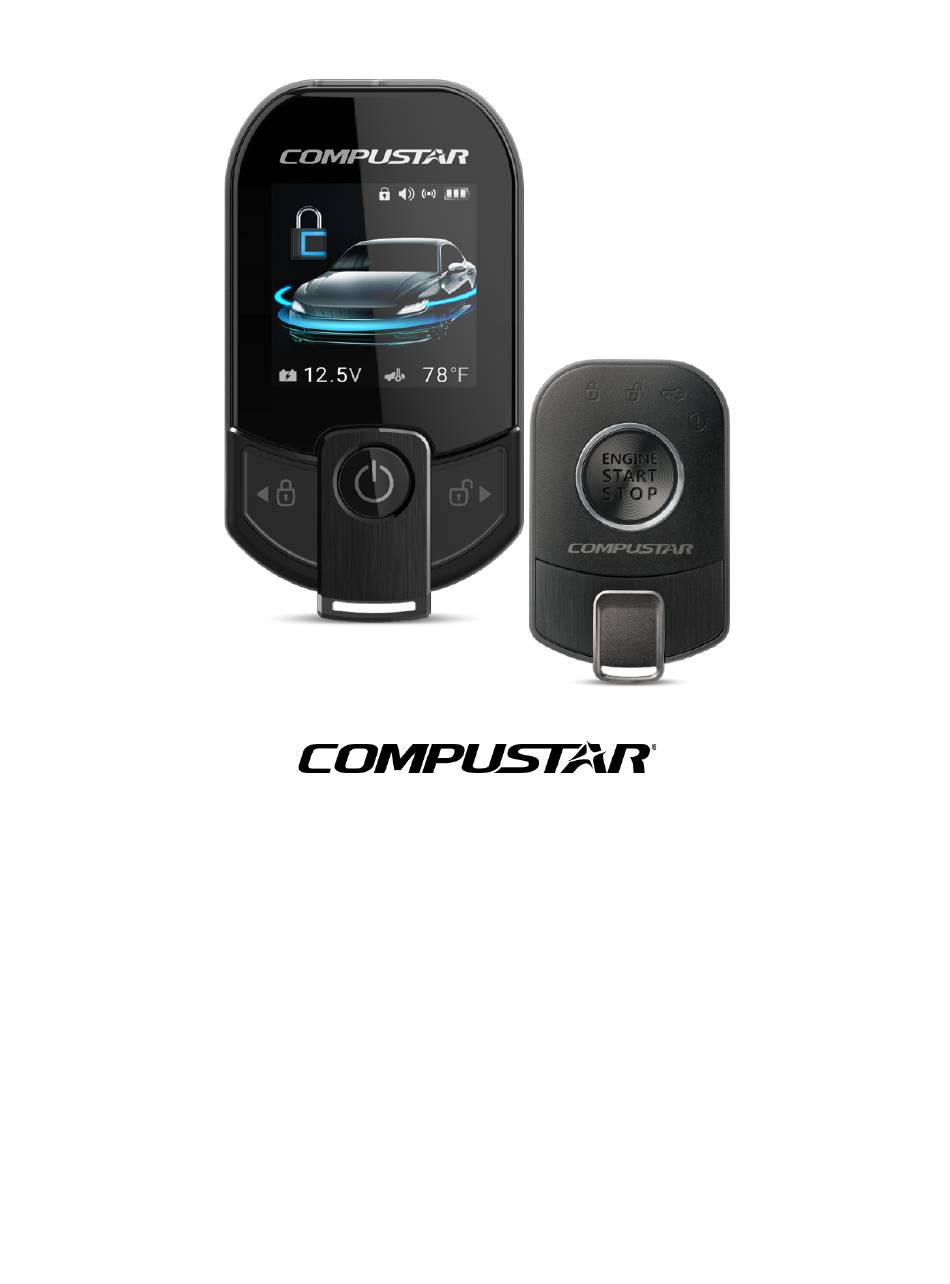

T13/R5 Master Guide
By Firstech LLC, Version: 1.0
This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions.
(1) This device may not cause harmful interference.
(2) This device may accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this device.
www.compustar.com
Advertisement
Related Manuals for Firstech COMPUSTAR T13/R5
Summary of Contents for Firstech COMPUSTAR T13/R5
- Page 1 T13/R5 Master Guide By Firstech LLC, Version: 1.0 This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions. (1) This device may not cause harmful interference. (2) This device may accept any interference received, including interference that may cause undesired operation.
-
Page 2: Table Of Contents
Table of Contents Introduction ............................3 Warranty Coverage ..........................3 Remote Basics ............................. 3 Remote Programming procedure ..................... 6 Remote Maintenance – Battery Charging ..................4 2WT13 User Features: ........................5 2WR5 User Feature ..........................6 Valet mode options ........................... 6 2WT13 Proximity Unlock feature ...................... -
Page 3: Introduction
Firstech remotes carry a 1 year warranty from original date of purchase. Compustar Pro 2WT13R-SF remote carries a 3 year warranty. Warranty registration can be completed online by visiting www.compustar.com. Please complete the registration form within 10 days of purchase. -
Page 4: Remote Basics
Remote Basics Remote programming procedure The Firstech Control Module (CM) installed in your vehicle will support up to 4 remotes at a time. NOTE: Once all 4 remote banks are programmed each new remote that is programmed will delete a previously... - Page 5 STEP 6: After 10 seconds of no valid remote codes being transmitted the CM will automatically exit programming mode NOTE: If no valid remotes are programmed the CM will enter valet mode. **parking lights will flash twice signaling the end of programming mode. Battery Charging The 2WT13R-SF is a waterproof USB rechargeable remote.
-
Page 6: Valet Mode Options
Remote User Feature Settings: 2WT13 User Feature Navigation Table Button action 1 tap .5 sec Double tap Hold for 2.5 sec Lock/left arrow Return to First User Move selection left button feature Center Start/Stop Select/Enter ENTER REMOTE MENU Exit User Features button Unlock/right arrow Move to Power Down... - Page 7 Remotes in “Full alarm mode” will receive alarm alerts/notifications (when within range of the vehicle) if the alarm system is triggered. NOTE: your Firstech security system is equipped with a “soft disarm” feature which means 1 unlock/disarm command will only silence or shut off the siren once it...
- Page 8 When panic is activated it will trigger any siren or horn output that may be connected to your Firstech system. It will continue to sound until stopped using a remote or Drone. This feature is frequently used to locate vehicles in larger parking areas.
- Page 9 Once the power down function is selected within the User feature settings this will power the remote LCD down. Unlock: Unlocks the doors (if equipped) and or Disarms the Firstech security system (if equipped) along with any Firstech accessory that may be installed. AUX 1: This will activate any POC assigned AUX 1 output or AUX 1 action over data.
- Page 10 (approx. 4-6 ft from the vehicle on average) Siren/Horn (with lock/unlock): This will enable disable the Siren or Horn output when locking/arming and unlocking/disarming your Firstech system. When this feature is disabled, the shock sensor stage 1 or “Pre-warn” will also be silenced while armed.
- Page 11 (may not apply to all vehicles) NOTE: this feature must also be enabled on the Firstech CM in order for the user to control it. This user feature will activate or deactivate the ignition controlled door locking function (or drive lock).
- Page 12 (Preset time is selected by the install tech at the time of installation). NOTE: The Passive arming feature must be enabled on the Firstech CM by the install tech at the time of installation, additional connections may be required.
- Page 13 Indicates Shock sensor on/off Indicates Siren or Horn output has been turned off for Lock/arm and Unlock/disarm Indicates the current Armed/Disarmed state of your Firstech system Indicates the chime or beep level Indicates battery level Indicates Turbo Timer feature is activated...
- Page 14 0.5 sec Single tap to lock and/or arm your Firstech system 0.5 sec x 2 Double tap button to unlock and/or disarm your Firstech system 2.5 sec Hold button for 2.5 seconds to remote start or remote stop your vehicle.
-
Page 15: Remote Start Error Diagnostic
2WR5 LED Icon guide LED Icon Description Will flash when transmitting to indicating the lock/arm command has been sent Will flash + beep confirming the system has been locked/armed Will flash + beep when transmitting to indicating the unlock/disarm command has been sent Will flash + beep confirming the system has been unlocked disarmed Will flash + beep indicating the remote start command has been sent. - Page 16 Remote Start Shutdown Error Codes If the remote start sequence has been completed and the vehicle shuts down, the vehicle’s parking lights will flash 4 times, pause then flash again with the error code. Tap button 4 on 2 Way remotes to initiate the shutdown error codes.
-
Page 17: Alarm Diagnostic
2 Way remotes will display the standard start error number “Start Err##” 3-07 (reservation mode cancelled) on the LCD. Alarm Diagnostics While the alarm is armed, the LED will blink slowly. While the siren is going off, the LED will indicate which specific zone was triggered until the vehicle ignition is turned on. -
Page 18: Limited Lifetime Warranty
Limited Lifetime Warranty Firstech, LLC Warrants to the original purchaser that this product shall be free of defects in material and workmanship under normal use and circumstances for the period of time that the original owner of this product owns the vehicle in which it is installed; except that the remote controller unit for the period of one year from the date of installation to the original owner of this product.
