Summary of Contents for Varmebaronen MP4 G2

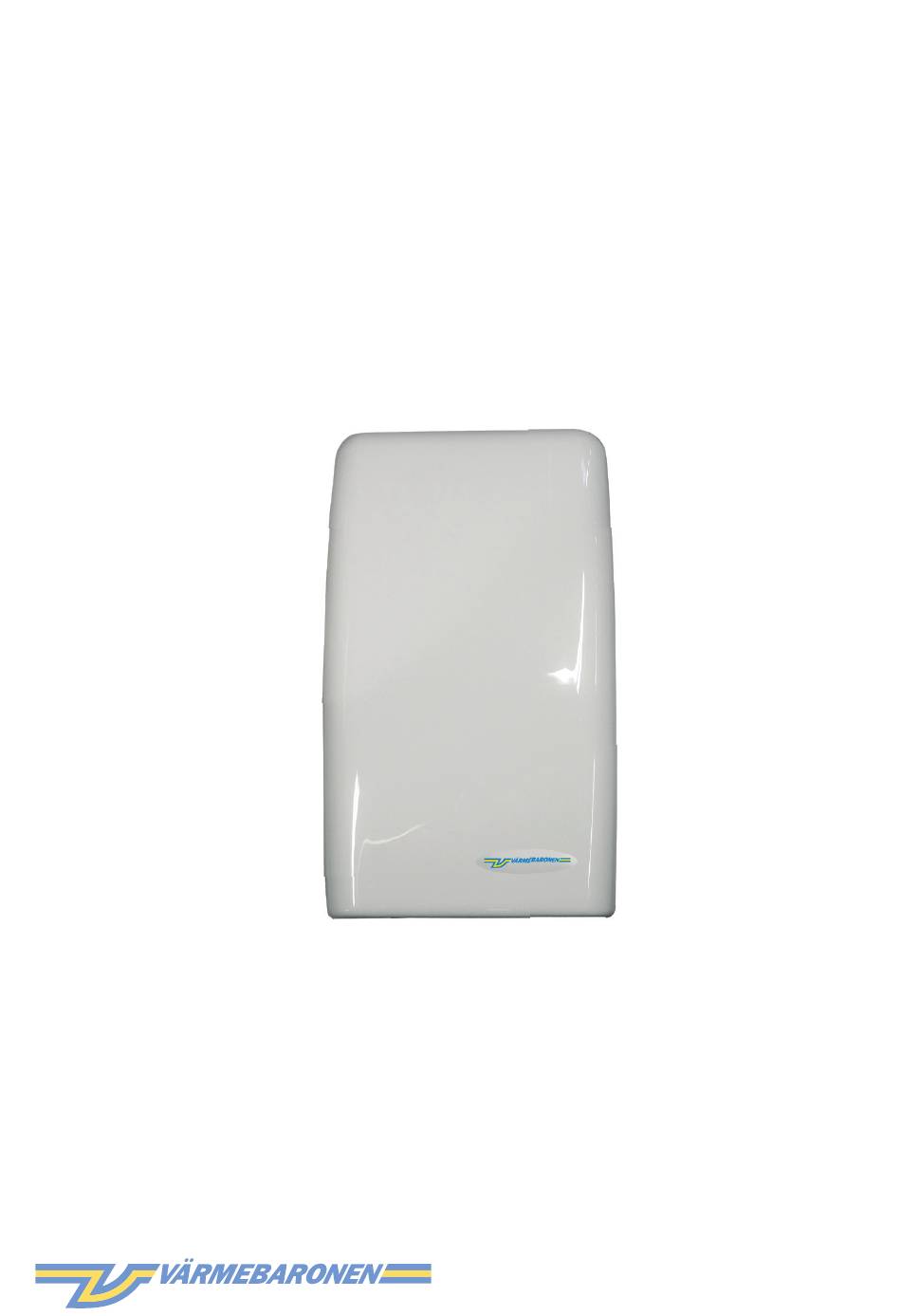

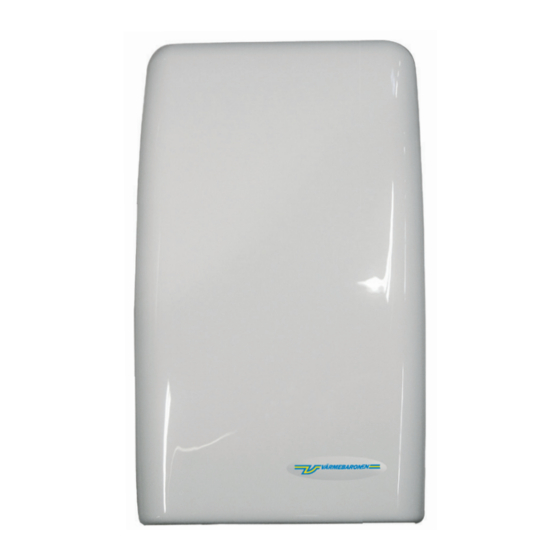

- Page 1 MP4_MP6_G2_201019_se Installation, operation and maintenance Mini Boiler MP4 G2 and MP6 G2...
-
Page 2: Table Of Contents
17 - UTK room sensor Measuring points on the circuit board 18 - Summer Boiler temperature sensor 19 - Code 21, to activate advanced service level Outdoor temperature sensor Technical data ..............22 Components ..............23 Värmebaronen MP4 G2 / MP6 G2... -
Page 3: Notes
3 kW / 400V 2N~ 3.0 kW /400V 2N~ 4 kW /400V 2N~ 4.5 kW / 400V 3N~ 6 kW / 400V 3N~ Other: ........................................................................................................................................................................................................................................................................... Värmebaronen MP4 G2 / MP6 G2... -
Page 4: Safety And Handling
• Never place any combustible material on the immersion heater. • Always contact your installation engineer for service. • The type and manufacturing number of the boiler must always be specified when contacting Värmebaronen, see the boiler's rating plate Värmebaronen MP4 G2 / MP6 G2... -
Page 5: Function
The boiler is equipped with a float switch to avoid damage to the immersion heaters. Alternate temperature or blocking Potential-free input for change in UTK level or blocking of boiler power, depending on the type of temperature regulation selected. Värmebaronen MP4 G2 / MP6 G2... -
Page 6: Operation And Maintenance
The outlet of the safety valve flows into a collection tank. Check restarts when the water level is restored, the warning must the water level in the tank regularly and empty it if necessary. be acknowledged manually. Värmebaronen MP4 G2 / MP6 G2... -
Page 7: Venting - Venting Valve
If the heating system is to be switched off for an extended period of time, the system should be drained or it can be filled with water mixed with anti-freeze. Värmebaronen MP4 G2 / MP6 G2... -
Page 8: Menus - Function And Handling
Each menu level contains a number of rows, the number of which appears in the display followed by a decimal point and a value. At larger values, the display switches between displaying the row number and its value. Värmebaronen MP4 G2 / MP6 G2... -
Page 9: Alarm
• the display's program version is displayed for two seconds. • three bars are displayed for one second. • the power board's program version is displayed for two seconds • "0" appears for two seconds. Värmebaronen MP4 G2 / MP6 G2... -
Page 10: Menu - User Level
30°C at ±0°C outdoor temperature. The corresponding curves are 40 and 50 ° C respectively. The vertical axis shows the boiler temperature and the horizontal axis shows the outdoor temperature. °C °C Värmebaronen MP4 G2 / MP6 G2... - Page 11 ECO - If necessary, the boiler will start in order to maintain a boiler temperature of function approximately 10°C if external limitation allows. Värmebaronen MP4 G2 / MP6 G2...
-
Page 12: Menu - Service Level
Displays the value if UTK is activated in "Service Level" menu row 12. Blocking when fixed temperature regulation is selected. Fixed temperature regulation - power connection allowed. 0 = operation 15 . Fixed temperature regulation - blocking. 1 = blocking 15 . Värmebaronen MP4 G2 / MP6 G2... -
Page 13: Utk: Alternative Temperature Adjustment
0: Silent 18 . Selection of whether the buzzer should sound or be silent in the event of an alarm. 1: Summer 18 . Enter 21, for access to “Advanced service level” menu. 19 . Värmebaronen MP4 G2 / MP6 G2... -
Page 14: Menu - Advanced Service Level
Room unit and UTK function not selected. 29 . UTK room unit. I-factor, I-part impact, 0.1°C/°C/h. 0 – 100 29 . Adjustment should only be performed by a person with an understanding of the impact! Värmebaronen MP4 G2 / MP6 G2... - Page 15 Menu - Advanced Service Level Värmebaronen MP4 G2 / MP6 G2...
-
Page 16: Pipe Installation
When glycol is added, the capacity of the expansion tank decreases in relation to the quantity of glycol added. Värmebaronen MP4 G2 / MP6 G2... -
Page 17: Filling - Draining
- if it is open too much it can cause the circulation in the heating system to be insufficient. Shut-off valves, risers and return to the boiler. Adjustment valve, accessible when the protection lid has been screwed off. Värmebaronen MP4 G2 / MP6 G2... -
Page 18: Electrical Installation
X N N L3 L2 L1 MP 6: 6.0 kW / 400V/3N~ / 8.7 A Supply Cable: 5 x 1.5 mm² Fuse: 3 x 10 A Two power steps: MP4: 2.25 / 4.5 kW MP6: 3 / 6 kW Värmebaronen MP4 G2 / MP6 G2... - Page 19 Configurable temperature range is 15- 25°C. Additional information is included with the device. 12 - Buzzer alarm Potential-free relay output, closed in the event of an alarm. Protective low voltage, max 48V~/ 24V=, 2A. Värmebaronen MP4 G2 / MP6 G2...
-
Page 20: Warning, Limitation And Alarms
Boiler temperature lower than 3°C. The boiler is blocked. Boiler temperature below 3°C - Freezing protection F .03 Low supply voltage to electronic components, all output disconnected, the circulation pump is switched off. F .06 Värmebaronen MP4 G2 / MP6 G2... -
Page 21: Boiler Temperature Sensor
Manual operation is activated in “Advanced service level”, row 23. The function is deactivated automatically after 4 minutes. Outdoor temperature sensor °C kΩ °C kΩ 88.7 64.2 47.0 34.7 25.9 19.5 14.8 11.4 Värmebaronen MP4 G2 / MP6 G2... -
Page 22: Technical Data
Cable connection 0.5 - 4 mm² Temperature range - 40…+90 °C Temperature regulator Class II - Contribution to average seasonal efficiency 2% *Distance between the bottom edge of the boiler and the floor level. Värmebaronen MP4 G2 / MP6 G2... -
Page 23: Components
Overheating protection Circulation pump 370092 Reset plug 246004 Wilo Para 15/6-43/SC 245078 Vent 150155 Adapter cabling for Wilopump 245117 H-bypass, overflow valve alternatively 245524 Safety valve 246003 Grundfos UPM3 AUTO L 15-50 130 1 Värmebaronen MP4 G2 / MP6 G2... - Page 24 Värmebaronen AB Arkelstorpsvägen 88 SE-291 94 Kristianstad Tel. + 46 44 22 63 20 www.varmebaronen.se www.varmebaronen.com info@varmebaronen.se...
