Summary of Contents for Varmebaronen Vedolux 30

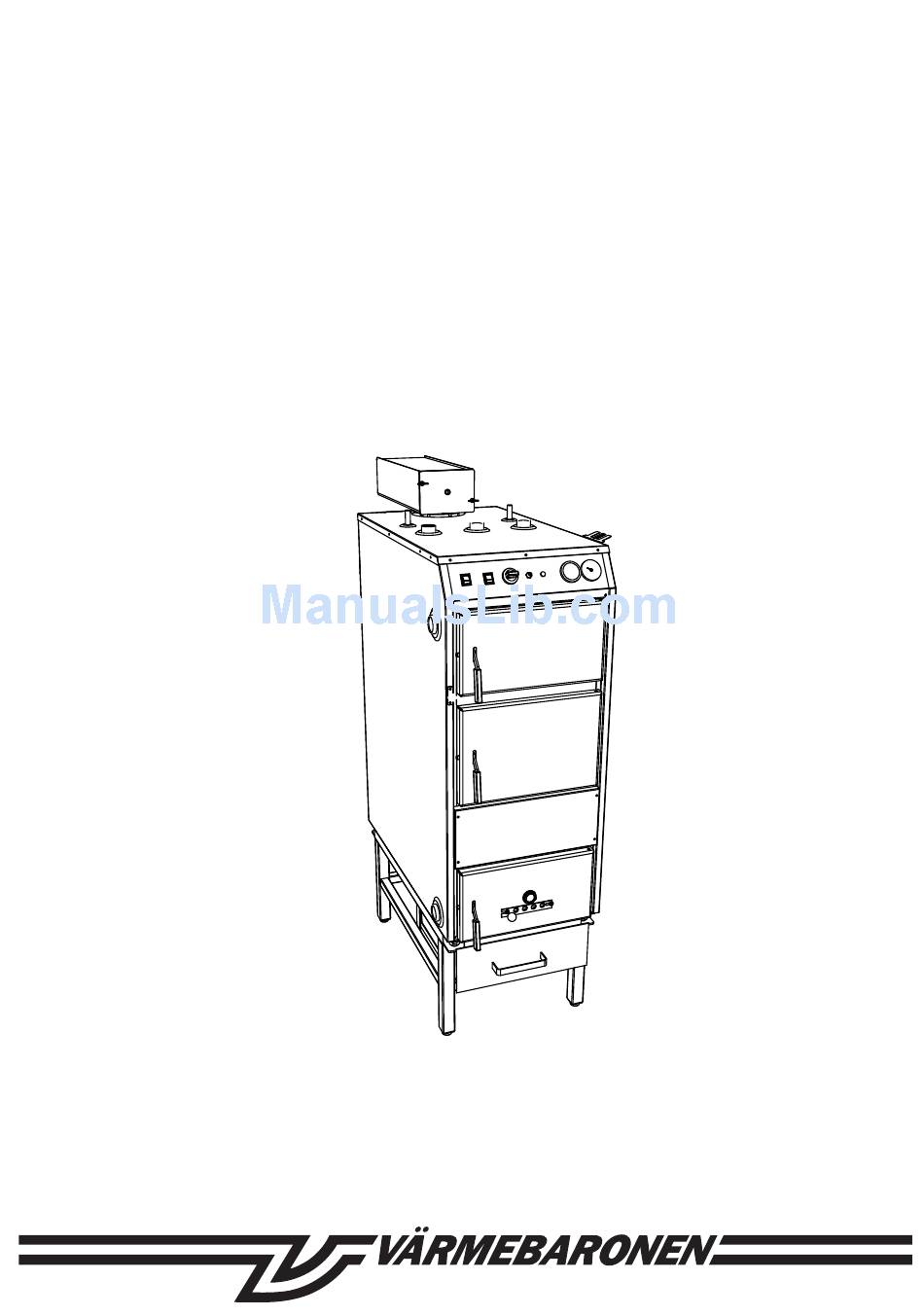

- Page 1 1 3 1 2 1 6 V 3 0 e n _ m c s r e v 1 Installation, operation and maintenance Firewood boiler Vedolux 30...
-
Page 2: Table Of Contents
For service issues, contact your installer. Värmebaronen AB retains the right to change the specification without prior notice, as part of its policy of continuous improvement and development. VÄRMEBARONEN VEDOLUX 30... -
Page 3: Notes
Notes To be completed when the Vedolux 30 is installed! Serial number: ............................Installation date: ............................Installer: ............................Tel: ............................Other: ...................................................................................................................................................................... VÄRMEBARONEN VEDOLUX 30... -
Page 4: Function
Vedolux 30 Chimney • is a firewood boiler with a suction fan, designed for heating houses The Vedolux 30 has a suction fan minimising the chimney requirements of the boiler. and smaller properties. • is environmentally-approved for firewood burning with an accumulator tank. -
Page 5: Technical Data
Flue pipe, standard. 12 Base bolts, adjustable. 13. Connections for cooling coil, 15 mm Cu. Minimum distance of 200 mm between rear of boiler 14. Expansion connection, R25. and wall! 18. Flue pipe up, accessory. 19. Base frame, accessory. VÄRMEBARONEN VEDOLUX 30... -
Page 6: Installation
Chimney The schematic diagram below shows the Vedolux 30 with the The Vedolux 30 has a suction fan minimizing the chimney require- Aqualux and Aqualux UB accumulator tanks plus Accumulator ments. Control 3. For more details, refer to the documentation supplied with the relevant product. -
Page 7: Cooling Coil - Temperature Limiter
The expansion vessel is best connected using 15 mm Cu pipe, as shown in the diagram on the previous page. The Vedolux 30 is primarily designed to be fired by firewood, but can also be modified for pellets using a pellet burner. -
Page 8: Electrical Connection
An thermostat limits the boiler’s working temperature. starts. When the time set for the time relay, 30 minutes, is reached, the contact changes, which means that the fan and the charging pump for the accumulator system are controlled by the thermostat, 21. VÄRMEBARONEN VEDOLUX 30... -
Page 9: Checks
Firewood as a fuel Heat content Vedolux 30 has a ceramic grate and an afterburning chamber made The heat content is the amount of heat that can be extracted by the of high-temperature resistant stainless steel. The boiler works on boiler and transferred to the boiler water. -
Page 10: Firewood As A Fuel
Even out the layer of embers. Add more Opening for firewood. The amount of firewood depends gas lighter on the temperature in the accumulator – do not allow the temperature to get too high. VÄRMEBARONEN VEDOLUX 30... -
Page 11: Cleaning
• Clean the fan blades carefully so they keep their shape. You are Clean the chamber around the combustion tunnel. recommended to use a paintbrush. Close all hatches and dampers. • Replace the fan and connect the cables. VÄRMEBARONEN VEDOLUX 30... -
Page 12: Operation And Care
– and therefore also the pressure – is higher in the summer than the winter. There is a risk of flames exiting through the hatch, so take the greatest possible care! VÄRMEBARONEN VEDOLUX 30... -
Page 13: Problems Burning Firewood
Expansion vessel too small. See the section about the “Expansion system” on page 5. system is warm. Initial pressure in the expansion Check the pressure in the vessel, see the section about the “Expansion vessel too high/low. system”. VÄRMEBARONEN VEDOLUX 30... -
Page 14: Component Specification
Fan gasket 71 04 53 Combustion tunnel 71 06 69 Bypass damper 71 05 21 Damper arm 71 02 60 Turbulator tool 71 05 62 Ash rake 71 04 82 Cleaning hatch 120006 Termostat EGO 1-POL, 30-93° VÄRMEBARONEN VEDOLUX 30... - Page 16 Varmebaronen UK 11 Back O'Hill, Stirling. FK8 1SH T 01786 849 099 F 01786 849 098 www.varmebaronen.org info@varmebaronen.org...
