1 3 0 9 11 T H L n o . : x x x x r e v 0
Installation and maintenance
Vedolux 55

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vedolux 55 and is the answer not in the manual?

Questions and answers

Summary of Contents for Varmebaronen Vedolux 55

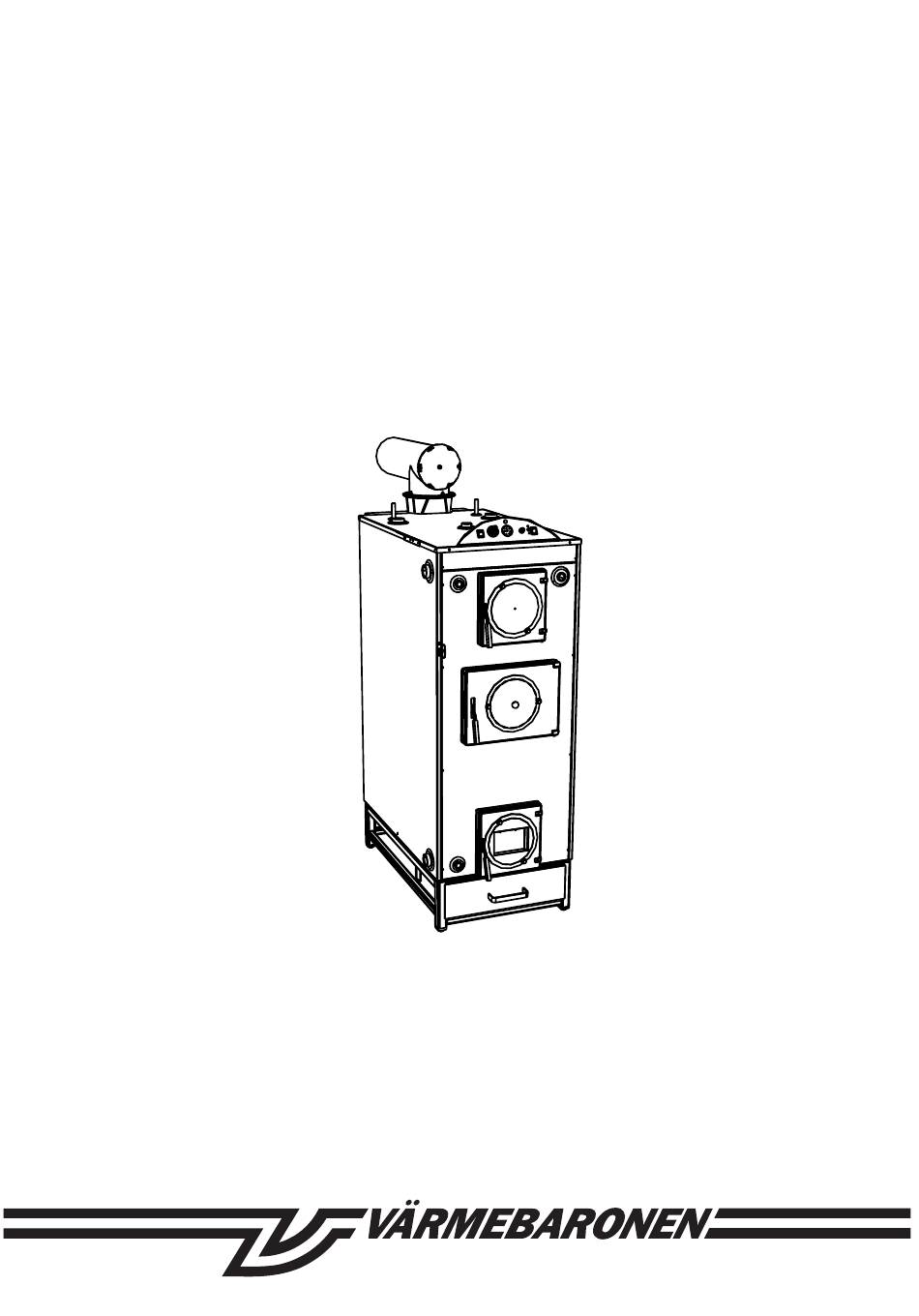

  • Page 1 1 3 0 9 11 T H L n o . : x x x x r e v 0 Installation and maintenance Vedolux 55...
  • Page 2 Värmebaronen Vedolux 55...
  • Page 3: Table Of Contents

    Contents FOR THE USER To be completed when the Vedolux 55 is installed.............. 4 Starting the boiler ..........16 Checklist - installation engineer ......5 Starting Congratulations on making a good choice! ..6 First firing Safety and handling ..........7 Firing - starting Dimensions ............
  • Page 4: To Be Completed When The Vedolux 55 Is Installed

    To be completed when the Vedolux 55 is installed Serial number: ............................Installation date: ............................Plumber: ............................Phone: ............................Electrician: ............................Phone: ............................Other: ................................................................................................................................................................................................................................................................................Värmebaronen Vedolux 55...
  • Page 5: Checklist - Installation Engineer

    Checklist To be completed by installation engineer:  Boiler installed according to these instructions.  Chimney tested for leaks and approved for wood firing, and meets the requirements of the boiler.  Installed so that the fan and boiler can be easily cleaned. ...
  • Page 6: Congratulations On Making A Good Choice

    Wood boiler with inverted combustion and suction fan for large properties Vedolux 55 Chimney • is a wood-fired boiler with a suction fan, designed for Vedolux 55 has a suction fan which means that the heating properties. boiler has minimal requirements for the chimney conditions.
  • Page 7: Safety And Handling

    • Never place any combustible material on the boiler or flue pipe. • Be careful if you need to open the boiler's hatches during operation. If the hatch is opened too fast, flames may shoot out. Värmebaronen Vedolux 55...
  • Page 8: Dimensions

    A plate needs to be 8. Cooling coil Cu Ø 0.6 in. changed on the hatch to reverse the hanging. 9. Bypass damper control Minimum 11 in. between rear of boiler and wall! Värmebaronen Vedolux 55...
  • Page 9: Technical Data

    0.46 A Power consumption operation, max. 50 W (without any additional appliances connected) standby IP class IPx1 Ambient temperature during operation 0 - 86 °F Noise level during operation 50 dB Manufactured to PED 97/23/EC article 3.3 Värmebaronen Vedolux 55...
  • Page 10 Värmebaronen Vedolux 55...
  • Page 11: Installation - General

    It is important for all connection points and flues not to leak dust and gas. If the boiler is connected higher up the chimney than a previous boiler was connected, the lower, inactive part must be filled. Värmebaronen Vedolux 55...
  • Page 12: Installation

    Chimney long way to travel through a narrow pipe and the natural draught will not be enough to compensate for the long Vedolux 55 has a suction fan and the chimney require- distance. ments are therefore low. For the boiler to deliver the promised output, the chim-...
  • Page 13: Installation

    Follow the valve manufacturer's Pellet burner installation instructions. Vedolux 55 is primarily designed for wood firing, but can be adapted for use with a pellet burner. The burner is Filling, heating system installed in the wood filling hatch.
  • Page 14: Installation

    When the set time of the time relay, 30 minutes, has boiler temperature has fallen below 200°F. An operating elapsed, its contact switches and the charging pump thermostat limits the boiler's maximum working for the accumulator system will be controlled by the temperature. thermostat. Värmebaronen Vedolux 55...
  • Page 15 After this, the moisture content is down to approximately and must be maintained. 20%. Wood firing Vedolux 55 has a ceramic grate and secondary combustion chamber. The boiler works according to the principle of inverted combustion. Used correctly, the boiler produces very good combustion of wood and gases and therefore has high efficiency and a low environmental impact.
  • Page 16: For The User Starting The Boiler

    212°F, the fan and the charging pump for the accumulator stop. RISK OF BURN INJURIES! Do not open the boiler's hatches if the fan is idle and you suspect there may be fire in the boiler. Värmebaronen Vedolux 55...
  • Page 17: Starting The Boiler, Cont

    Ensure that the inner ash hatch is correctly posi- tioned. Push up Angle in Push down. The pin on the bottom of the hatch must enter the hole in the scraper plate. Värmebaronen Vedolux 55...
  • Page 18: Sweeping

    • Open the ash hatch and remove the inner ash hatch. Rake the ash out of the ceramic tunnel. Leave a layer of a few centimetres. Clean the chamber around the flame bowl. Close all hatches and dampers. Värmebaronen Vedolux 55...
  • Page 19: Tubular Pipes And Ceramics

    - Let a layer of ash of a few centimetres form a protective layer on the grate. - Fire only with real wood, not plastic, processed timber, refuse or similar. - The wood must be inserted in the boiler, not thrown. Värmebaronen Vedolux 55...
  • Page 20: Firing Problems, Troubleshooting

    Sweep the boiler. Bypass damper open. Close the damper. The bypass damper must only be open when wood is being added. Flue gas thermometer The thermometer may have been damaged during broken. sweeping or by long-term supercombustion. Värmebaronen Vedolux 55...
  • Page 21: Boiling Sound In The Boiler

    Reset the overheating protection. triggered. Safety valve opens when Expansion tank too small. See the 'Expansion system' section. the temperature of the Prepressurisation in the Check the pressure in the tank. See 'Expansion system'. system increases. expansion tank too high/low. Värmebaronen Vedolux 55...
  • Page 22 310212 Left ceramic duct 310213 Right ceramic duct 320007 Wood filling hatch 320017 Soot hatch 320020 Draught hatch 370060 Handle knob, bakelite 370064 T-handle, bypass damper 380010 Thermometer 240°F / 120°C 380011 Pressure gauge 60 psi / 4 bar Värmebaronen Vedolux 55...
  • Page 24 Värmebaronen AB Arkelstorpsvägen 88 SE-291 94 Kristianstad Tel. +46 44 22 63 20 Fax +46 44 22 63 58 www.varmebaronen.se www.varmebaronen.com info@varmebaronen.se...
