MODEL #M80ECM
HELPFUL HINTS
Read the directions before assembly.
Always wear protective clothing, eye wear, and dust mask to prevent contact with chemicals and other materials
being applied with this machine.
Remove any material in the hopper before lifting or detaching this machine from the vehicle.
Care must be taken when lifting this machine so as not to cause personal injury or equipment damage. Never
attempt to install this machine to the vehicle alone. Recruit the help of someone to assist when attaching and
detaching this machine from the vehicle.
Refer to the material packaging for precautionary measures required when handling material to be applied.
Before attaching this machine, consideration must be given to the load capacity of the vehicle. Refer to the
owner's manual of the vehicle for rated load capacity. Be sure to take into account the weight of this machine is
30lbs. and the weight of the material to be places into the hopper when calculating the total load.
M80_REV_JUL_2022

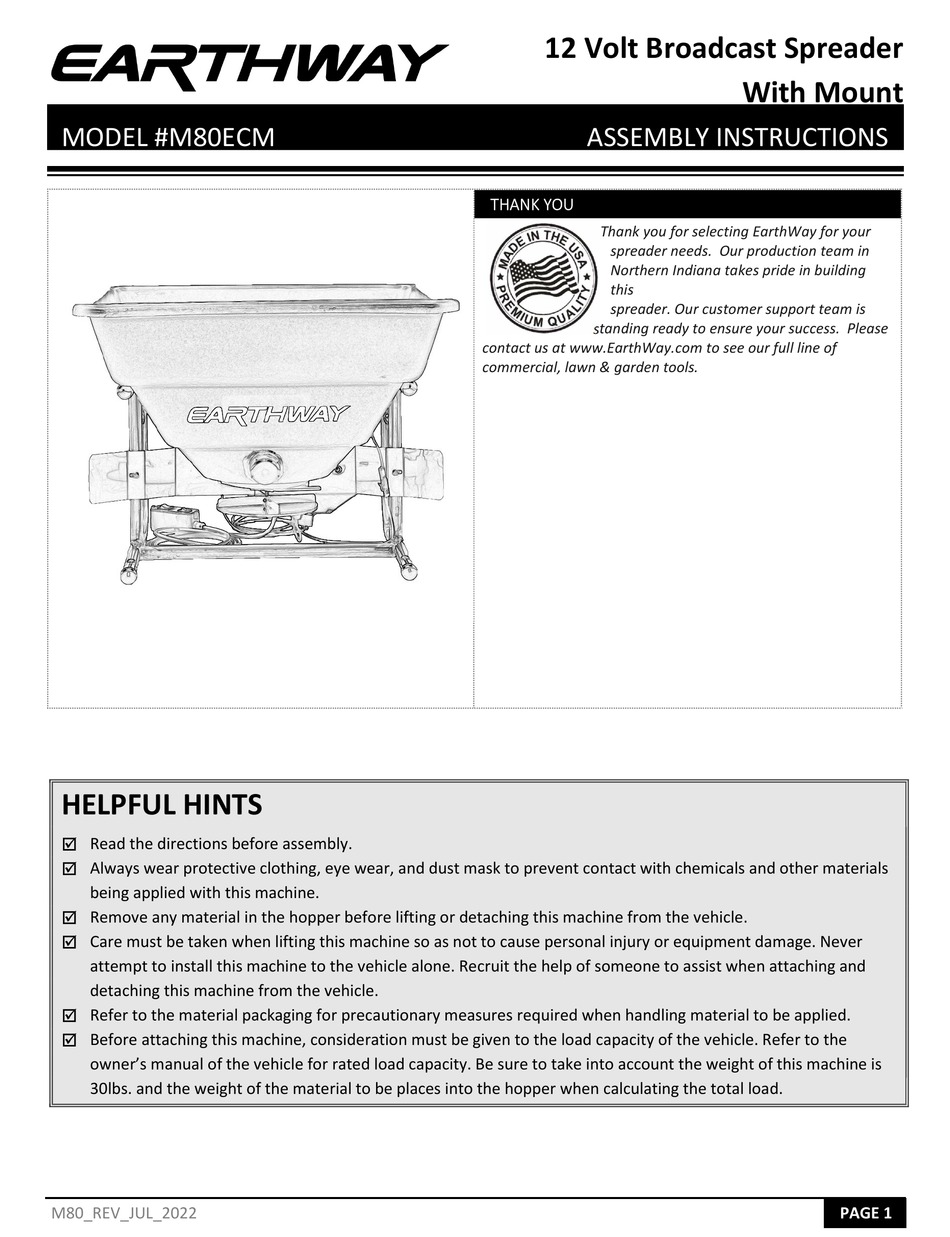

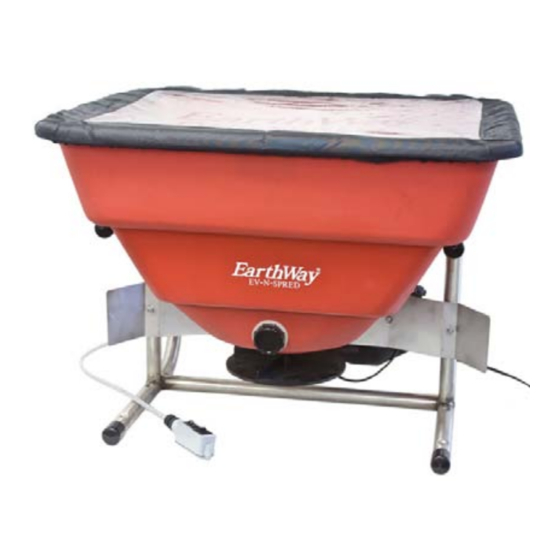

12 Volt Broadcast Spreader
ASSEMBLY INSTRUCTIONS
THANK YOU
Thank you for selecting EarthWay for your
spreader needs. Our production team in
Northern Indiana takes pride in building
this
spreader. Our customer support team is
standing ready to ensure your success. Please
contact us at www.EarthWay.com to see our full line of
commercial, lawn & garden tools.
With Mount
PAGE 1
Advertisement
Table of Contents
Related Manuals for EarthWay M80ECM
Summary of Contents for EarthWay M80ECM
- Page 1 Northern Indiana takes pride in building this spreader. Our customer support team is standing ready to ensure your success. Please contact us at www.EarthWay.com to see our full line of commercial, lawn & garden tools. HELPFUL HINTS Read the directions before assembly.
- Page 2 Assembly and Operation Instructions WARNING KEEP HANDS AWAY FROM ANY SPINNING OBJECT, SHUT-OFF PLATE, SHUT-OFF MECHANISM LINKAGE, AND THE INSIDE OF THE HOPPER, EXTREME INJURY CAN OCCUR. HOW TO OPERATE SAFELY: Read, understand, and follow all product label information provided on the material being applied.
- Page 3 Assembly and Operation Instructions CALIBRATION INSTRUCTIONS: Loosen set-screw on Calibration Bracket Set adjustment dial to “0” Closed Activate switch to extend to the “STOP” Slide Calibration Bracket to ensure shut- off is closed Calibration is now complete ...
- Page 4 Assembly and Operation Instructions To Calculate RATE SETTINGS: With the unit mounted on the vehicle and the hopper Step 4: at least half full of the material to be spread, position the vehicle Determine how much material is to be Step 1: far enough before the beginning of the 50-foot test area so that applied per 1,000 sq./ft.
- Page 5 ONE YEAR WARRANTY EarthWay Products, Inc. warrants this product free of defects in original workmanship and materials for a period of one year to the end user with the original purchase receipt. If a manufacturing non-conformance is found, EarthWay Products, Inc. at its discretion will repair or replace the part(s)/product at no charge provided the failure is not the result of incorrect installation, mishandling, misuse, tampering, or normal wear and tear as determined by EarthWay.
- Page 6 Assembly and Operation Instructions HOW TO ORDER SPARE PARTS – CALL or EMAIL: TURF DEPOT 800-305-9255 or earthway@turfdepot.com M80_REV_JUL_2022 PAGE 6...
- Page 7 ¼ - 20 HEX NUT STAINLESS STEEL 12109 IMPELLER (9” DIA) 36400 5/8” OD. X 9/32” ID WASHER S.S. 12209 HOPPER BUSHING (C24/C25) 41260 ACTUATOR MODULE MOUNTING BRACKET (M80ECM) 12278 SHUT OFF PLATE ASSEMBLY 41277 CONTROL ROD (M40ECM) 12364 MODIFIED MOTOR CAP 42293...
