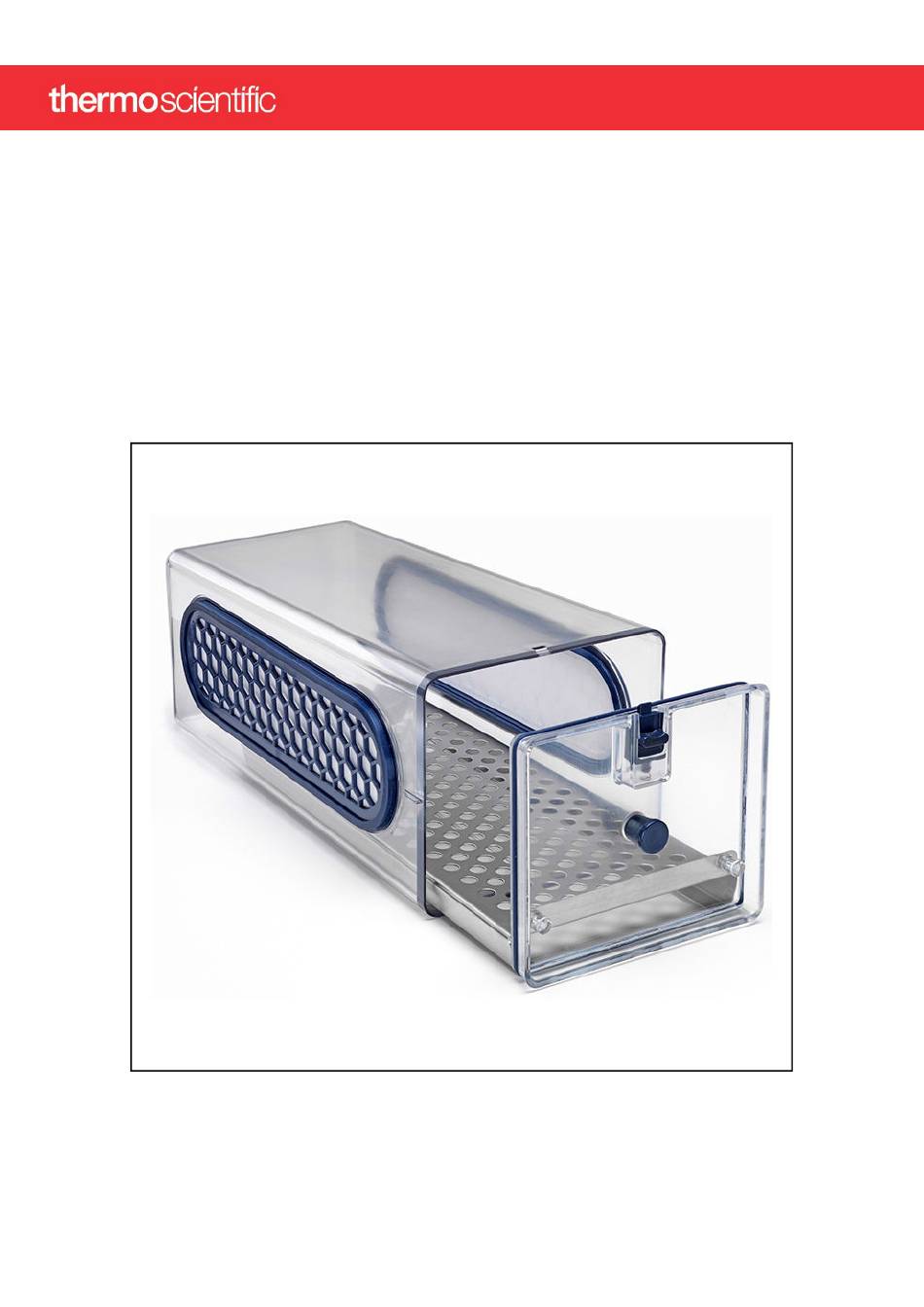

- Page 1 Operating Instructions Cell Locker 50155007 Revision C May 2021 Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific...
- Page 2 Trademarks ELL LOCKER ® is a registered trademark of Thermo Scientific. Thermo Scientific is a brand owned by Thermo Fisher Scientific, Inc. All other trademarks mentioned in the operating instructions are the exclusive property of the respective manufacturers. Thermo Electron LED GmbH Robert-Bosch-Straße 1...
-
Page 3: Table Of Contents
........... 17 Cell Locker 50155007_C 27.05.21... -
Page 4: Chapter 1 General Notes
Displayed on the equipment, this icon denotes that special attention must be paid to the information given in the instruction manual or accompanying documents. Is used for application hints and useful information Harmful liquids! Fire hazard! Toxic substances! Wear safety gloves! Wear safety goggles! Wear breathing protection! Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific... -
Page 5: Safety Notes
• inspections and maintenance are performed at the specified intervals, • an operation verification test is performed after each repair activity. The warranty is valid from the date of delivery of the C ELL LOCKER to the customer. Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific... -
Page 6: Intended Purpose
• are pyrotechnical substances. Do not pour any liquids on the bottom of the interior surface or into a collecting basin inside the unit. The C ELL LOCKER is not for use in Medical Devices. Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific... -
Page 7: Chapter 2 Delivery Of The Device
• completeness, • possible damage. If components are missing or damage is found on the device or the packaging, please contact the carrier, as well as the customer service, immediately. Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific... -

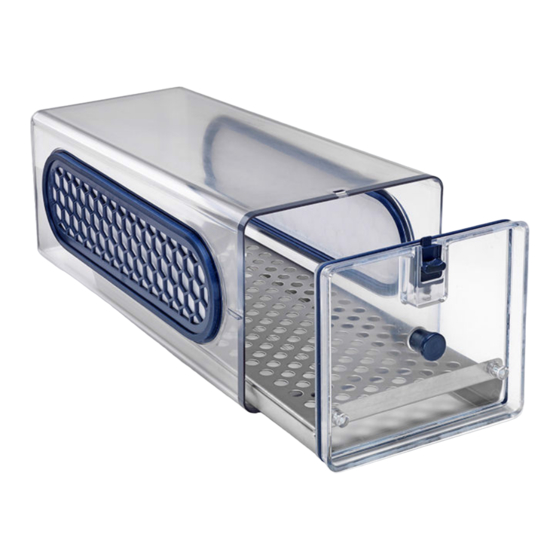

Page 8: Chapter 3 Description Of The Device
ELL LOCKER Fig. 1. Position Name work plate membrane frame with filter gasket latch cover handle knob Production Production Polycarbonate Makrolon 2528 year month Fig. 2. Bottom marks Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific... -
Page 9: First Use
4 x round plug 2 x screw M4 2 x rectangular plug 1 x Allen key Fig. 3. Consumables kit Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific... - Page 10 Use of cover in the chamber may require two hand samples access inside the chamber with opening. transport cover ELL LOCKER options Fig. 4. Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific...
-
Page 11: Chapter 4 Cleaning And Disinfection
Remove dirt residues and deposit thoroughly using a solution of lukewarm water and mild detergent. Wipe the surfaces and work plate with a clean cloth and clear water. Then, wipe the surfaces dry using a clean cloth. Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific... -
Page 12: Wipe/Spray Disinfection
5. Re-rinse the cleansed surfaces 3 to 5 times with autoclaved water to completely remove any cleaning agent residues. 6. After this, wipe the cleansed surfaces, air baffle and internals dry with a soft, sterile cloth. Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific... -
Page 13: Autoclaving
15 minutes at 121°C with fast exhaust. Autoclaving at higher temperature is not recommended since the material cannot withstand higher temperature and its composition would be negatively affected. Note Remove the membrane frame with filter before autoclaving the C ELL LOCKER Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific... -
Page 14: Chapter 5 Service
1. Pull out the work tray and take it out. 2. Press and remove the membrane frame from the inside. 3. Put the membranes into a plastic bag, autoclave them and dispose as hazardous waste. Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific... - Page 15 7. Insert the second membrane according to 5. and 6. Warning Contamination hazard! Damaged or improperly mounted membranes can contaminate the user or the environment! 8. Insert the work tray over the tilting stop and push into the interior. Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific...
-
Page 16: Cover Gasket Replacement
3. Insert a new gasket in the notch and take care that the gasket lip is outside. Warning Contamination hazard! Damaged or improperly mounted membranes can contaminate the user or the environment! 4. Insert the work tray and push into the interior. Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific... -
Page 17: Chapter 6 Spare And Wear Parts
Consumables kit 50161834 ELL LOCKER 50156434 Cover Only original spare parts and accessories that have been approved by Thermo Fisher Scientific used, third-party spares without Thermo Fisher Scientific approval void the limited warranty. Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific... -
Page 18: Chapter 7 Disposal
Overview of the materials used Component Material ELL LOCKER housing and cover Polycarbonat, Makrolon 2858 Work tray stainless steel 1.4301+2B / Steel 10088-2 Work tray copper Copper Membrane frame PES Supor-200R Membrane 0,2 m PALL Membrane filter Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific... -
Page 19: Chapter 8 Technical Data
5.4 Weight Loading capacity per work tray Operating temperature °C / °F 4 - 55 / 39 - 131 Autoclave cycles max. 12 Autoclave temperature °C / °F max. 121 / 250 Cell Locker 50155007_C 27.05.21 Thermo Fisher Scientific...
