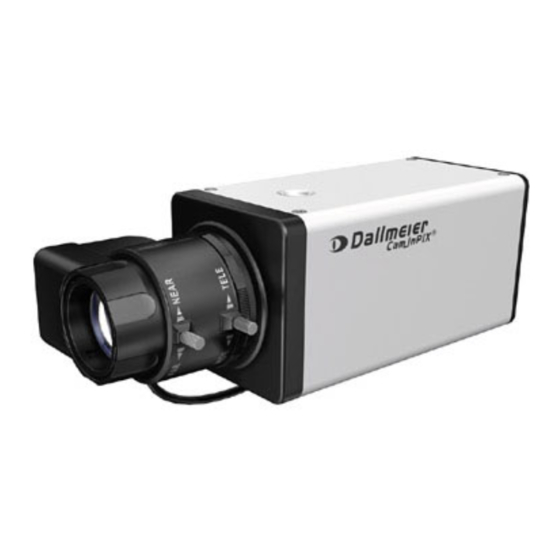

- Page 1 Installation and Configuration English Colour box camera (Day/Night) DF3000A(-DN) DF3000A(-DN) CasinoCam ® DF3000AS(-DN) DF3000AS(-DN) CasinoCam ® Rev. 2.0.1 / 080711...
- Page 2 Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of third- party trademarks and indication of the respective holder of rights. In case that protected rights are not indicated separately, this circumstance is no reason to assume that the respective trademark is unprotected.
-
Page 3: Table Of Contents
Lens Select ....................24 8.3.5 Color ......................25 8.3.6 Day / Night Setup..................25 Image Functions ..................26 8.4.1 Progressive Scan ..................26 8.4.2 Backlight ..................... 26 8.4.3 Digital Zoom ....................27 8.4.4 White Balance .................... 27 Exit Menu ....................28 Dallmeier electronic... - Page 4 DF3000A(-DN) / DF3000AS(-DN) Appendix ....................29 Menu structure .................... 29 Technical data ..................... 30 Technical drawings ..................32 ® 9.3.1 DF3000A(-DN) / DF3000A(-DN) CasinoCam ................® 9.3.2 DF3000AS(-DN) / DF3000AS(-DN) CasinoCam ..............Pin assignment interfaces ................34 Dallmeier electronic...
-
Page 5: This Document
CAUTION The warning word CAUTION denotes a possible danger that may cause minor injury if it is not averted. IMPORTANT The word IMPORTANT denotes information for preventing damage, incorrect configurations or incorrect actions. Dallmeier electronic... - Page 6 A NOTE offers information on principles, special features and efficient procedure as well as general recommendations. Expression Expressions in bold and italics generally indicate a control element on the device (switches or labels) or on its user interface (buttons, menu entries). Dallmeier electronic...
-
Page 7: Safety Instructions
Do not make any modifications to the unit (neither to the software nor the hardware) without consulting Dallmeier electronic. Improper modifications can cause malfunctions or damages. Dallmeier electronic accepts no liability for damages resulting from unauthorized or improper modifications to the unit. - Page 8 (pull out the power plug). Please contact the sales partner responsible for your area. Disposal Disconnect the unit from the power supply. Remove all connected units and system components. Return the unit to your respective sales partner. Dallmeier electronic...
-
Page 9: General Notes
Transportation and packaging Store the original packaging for transportation at a later date. Dallmeier electronic is not responsible for damage resulting from unprofessional/improper transportation. The goods should only be shipped in their original packaging. -
Page 10: Warranty
NOTE For detailled information please see the chapter Technical data. Warranty The terms and conditions valid at the signing of the contract apply. Certifications The following certifications were in effect at the time this document was produced: UVV-Kassen Dallmeier electronic... -
Page 11: Notes On Operating The Camera
The quality of the video picture depends on the lighting and the monitor used to display the video picture. Automatic white balance depends on the lighting used and can cause color distortions in artificial light. Poor lighting can lead to faulty white balance. Dallmeier electronic... -
Page 12: Views And Connection Assignment
DC auto iris lens (not included in the standard scope of delivery) Locking screw for back focus adjustment ring (2 mm Allen screw) ¼’’ tripod socket (on top and bottom side) CS lens mount and back focus adjustment ring Dallmeier electronic... -
Page 13: Connection Assignment
(internal inverse-polarity protection) RS232 interface (for service purposes only) Video output (CVBS, BNC) H Power LED DC auto iris interface for iris control J Selector, with integrated Enter button (depending on model) K Separate Enter button (depending on model) Dallmeier electronic... -
Page 14: Installation And Commissioning
Possible damage to the sensor. The length of the lens thread plus any protruding parts must not exceed 5 mm (L). If using a C-mount lens, you have to screw a C-/CS-mount adapter ring (5 mm) between the lens and the camera. Dallmeier electronic... -
Page 15: Adjusting The Back Focus
Possible damage to the sensor caused by improper cleaning. Only use approved methods and products for sensor cleaning. For more information please contact the Dallmeier support. Remove the rear lens cap and the camera body cap. Screw the lens carefully into the CS lens mount (D). -
Page 16: Installation And Commissioning
Mount the camera on a wall/ceiling bracket or on a pan/tilt head etc. using the ¼’’ tripod socket (C) and an appropriate tripod screw. WARNING Danger of death from lightning strike! Do not connect/disconnect the video cable during a thunderstorm. Dallmeier electronic... - Page 17 The camera is provided with internal inverse-polarity protection. Connect the camera via power input terminal (E) to an appropriate power supply unit. Connect the power supply unit to the mains socket. The power LED (H) illuminates and the camera is ready for operation. Dallmeier electronic...
-
Page 18: Preparing To Configure
UTC Remote Box (or recorder or PView). NOTE Refer to the separate operator’s manuals for the devices or software used. UTC Remote Box Direct Fig. 7-1 Camera UTC Remote Box CVBS monitor Via recorder Fig. 7-2 Camera Recorder Monitor Remote Box Dallmeier electronic... -
Page 19: Dms Recorder
FG-11 frame grabber card. PView Fig. 7-4 Camera Recorder PView station Monitor NOTE This method requires a recorder with software version 5.3.1 or higher and a built-in FG-11 frame grabber card, using PView version 5.6.0 or higher. Dallmeier electronic... -
Page 20: Configuration
If you use a lens with manual iris control, the factory preset must be changed before any further configuration occurs. Choose Basic Functions in the main menu and set Lens Select to Manual. Now you can make further settings or leave the configuration. Dallmeier electronic... -
Page 21: Presets
Detail resolution in bright areas is optimized. Typical flickering with neon lights is compensated. Low Light Preset for low light scenes with slowly moving objects. The closing and exposure time (shutter) can be adjusted manually between 2x and 8x. Dallmeier electronic... - Page 22 Gain Limit allows you to set the max. gain with which the amplitude of the video signal is raised in poor light conditions. Sharpness Select Sharpness to adjust the image sharpness. Saturation Select Saturation to adjust the color saturation. Dallmeier electronic...
-
Page 23: Basic Functions
Previous Page V-Level > Sync: < Internal 1 > V-Phase Synchronization Choose between Internal 1, Internal 2, AC-Linelock ---------------- NTSC ----------------- and Flickerfree Linelock for Sync. Previous Page V-Level > Sync: < Internal 1 > V-Phase Dallmeier electronic... -
Page 24: Horizontal Flip
> Lens Select.. < DC > Color Day / Night Setup.. NOTE Lens Select = DC is set by default. Only change this setting if the camera is used with a subsequently mounted lens with manual iris control. Dallmeier electronic... -
Page 25: Color
Night Mode = B/W (black and white) ist set by default for the DF3000. Night: max. Gain Night: max. Gain allows you to fix the limit for the maximum amplitude of the video signal in night mode. Dallmeier electronic... -
Page 26: Image Functions
The “interlace effect” is thus prevented, whereas rapid movements are displayed in a more jerky manner. NOTE To record camera images with maximum resolution the Dallmeier recorder should be operated in full picture mode and the camera should be set to Progressive Scan = On. 8.4.2 Backlight... -
Page 27: Digital Zoom
White Balance allows you to influence the white balance of -------- Image Functions --------- the camera. Previous Page. Progressive Scan Backlight Digital Zoom On.. With AWB.. automatic white balance is carried out for the > White Balance < ATW.. > situation current at the time of measurement. Dallmeier electronic... -
Page 28: Exit Menu
Load Factory Settings To return the configuration to its default settings, select the ------------- Exit Menu -------------- Yes option next to Load Factory Settings and press the Previous Page. Enter button. Last Changes Reject. > Load Factory Settings 3000 Version Dallmeier electronic... -
Page 29: Appendix
Lens Select.. Color Day / Night Setup.. -------- Image Functions --------- Previous Page. > Progressive Scan Backlight Digital Zoom On.. White Balance ATW.. ------------- Exit Menu -------------- Previous Page. > Last Changes Reject. Load Factory Settings 3000 Version Dallmeier electronic... -
Page 30: Technical Data
DF3000AS(-DN) / DF3000AS(-DN) CasinoCam Max. 2.1 W ® Dimensions (without lens) DF3000A(-DN) / DF3000A(-DN) CasinoCam Approx. W 45 x H 45 x L 108 mm ® DF3000AS(-DN) / DF3000AS(-DN) CasinoCam Approx. W 45 x H 45 x L 73 mm Dallmeier electronic... - Page 31 DF3000A(-DN) / DF3000AS(-DN) ® Weight (without lens) DF3000A(-DN) / DF3000A(-DN) CasinoCam Approx. 220 g ® DF3000AS(-DN) / DF3000AS(-DN) CasinoCam Approx. 160 g Temperature -10°C to 50°C, 0° to 35°C recommended Approvals/Certifications CE, FCC, UL, ACA, UVV-Kassen, CB Dallmeier electronic...
-
Page 32: Technical Drawings
DF3000A(-DN) / DF3000AS(-DN) Technical drawings ® 9.3.1 DF3000A(-DN) / DF3000A(-DN) CasinoCam Fig. 9-1 Fig. 9-2 Fig. 9-3 Unit: mm Dallmeier electronic... -
Page 33: Df3000As(-Dn) / Df3000As(-Dn) Casinocam
DF3000A(-DN) / DF3000AS(-DN) ® 9.3.2 DF3000AS(-DN) / DF3000AS(-DN) CasinoCam Fig. 9-4 Fig. 9-5 Fig. 9-6 Unit: mm Dallmeier electronic... -
Page 34: Pin Assignment Interfaces
DF3000A(-DN) / DF3000AS(-DN) Pin assignment interfaces DC auto iris interface for iris control Fig. 9-7 DC auto iris interface for iris control Signal Control Control Drive Drive Dallmeier electronic... - Page 35 Approximation of the Laws of the Member States relating to Electromagnetic Compatibility 89/336/ EEC and the Council Directive relating to Low Voltage 73/23/EEC and 2006/95/EEC. The following company is responsible for this declaration: Dallmeier electronic GmbH & Co.KG Cranachweg 1 D 93051 Regensburg The measurements were carried out in accredited laboratories.
- Page 36 Approximation of the Laws of the Member States relating to Electromagnetic Compatibility 89/336/ EEC and the Council Directive relating to Low Voltage 73/23/EEC and 2006/95/EEC. The following company is responsible for this declaration: Dallmeier electronic GmbH & Co.KG Cranachweg 1 D 93051 Regensburg The measurements were carried out in accredited laboratories.
