bouncepad CADDY Assembly Instructions page 2

Eddy Only
T20 Pin Torx
Allen Key

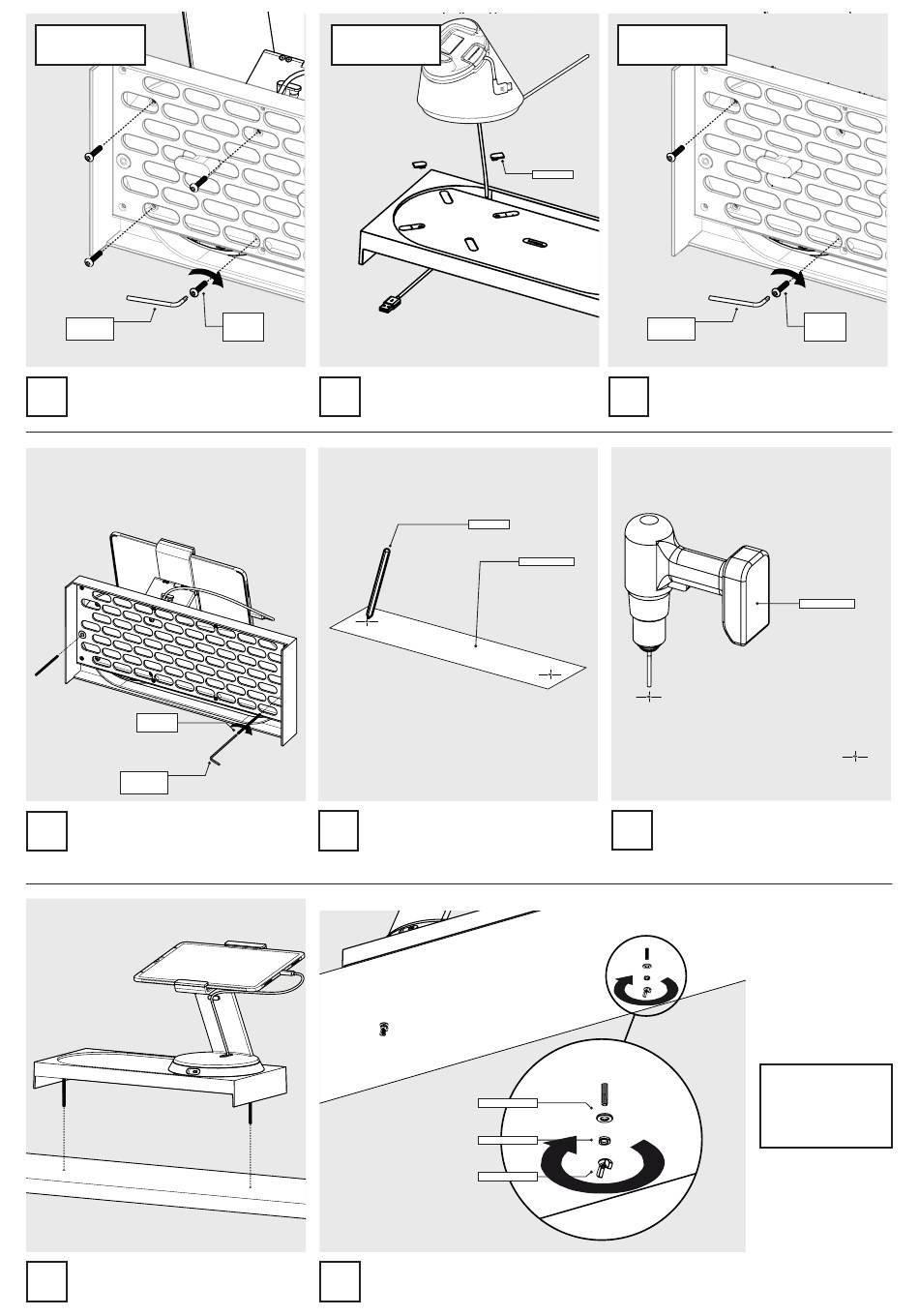

Attach 4x M4 buttonhead screws
9
through the tray and into the stand.
80mm
Grubscrew
T20 Pin Torx
Allen Key
Screw M4 80mm grubscrews into
11
Caddy until finger tight.
Insert the assembled product through
14
the pilot holes.
Click Only
M4
Buttonhead
Screw
Lift up the Click Stand and remove
9
the INNER half-bungs from Caddy.
Place the drilling template over the
12
surface and mark the holes with a
pencil.
Attach illustrated washers and tighten wingnuts by hand.
15
Caddy is now securely attached to your surface.
Click Only
half-bung
T20 Pin Torx
10
pencil
drilling template
13
M4 flat washer
M4 split washer
M4 wing nut
M4
Buttonhead
Screw
Allen Key
Attach 2x M4 buttonhead screws
through the tray and into the stand.
power drill
Use a hand drill with 5mm bit to
make holes through your surface.
Assembly
Complete
