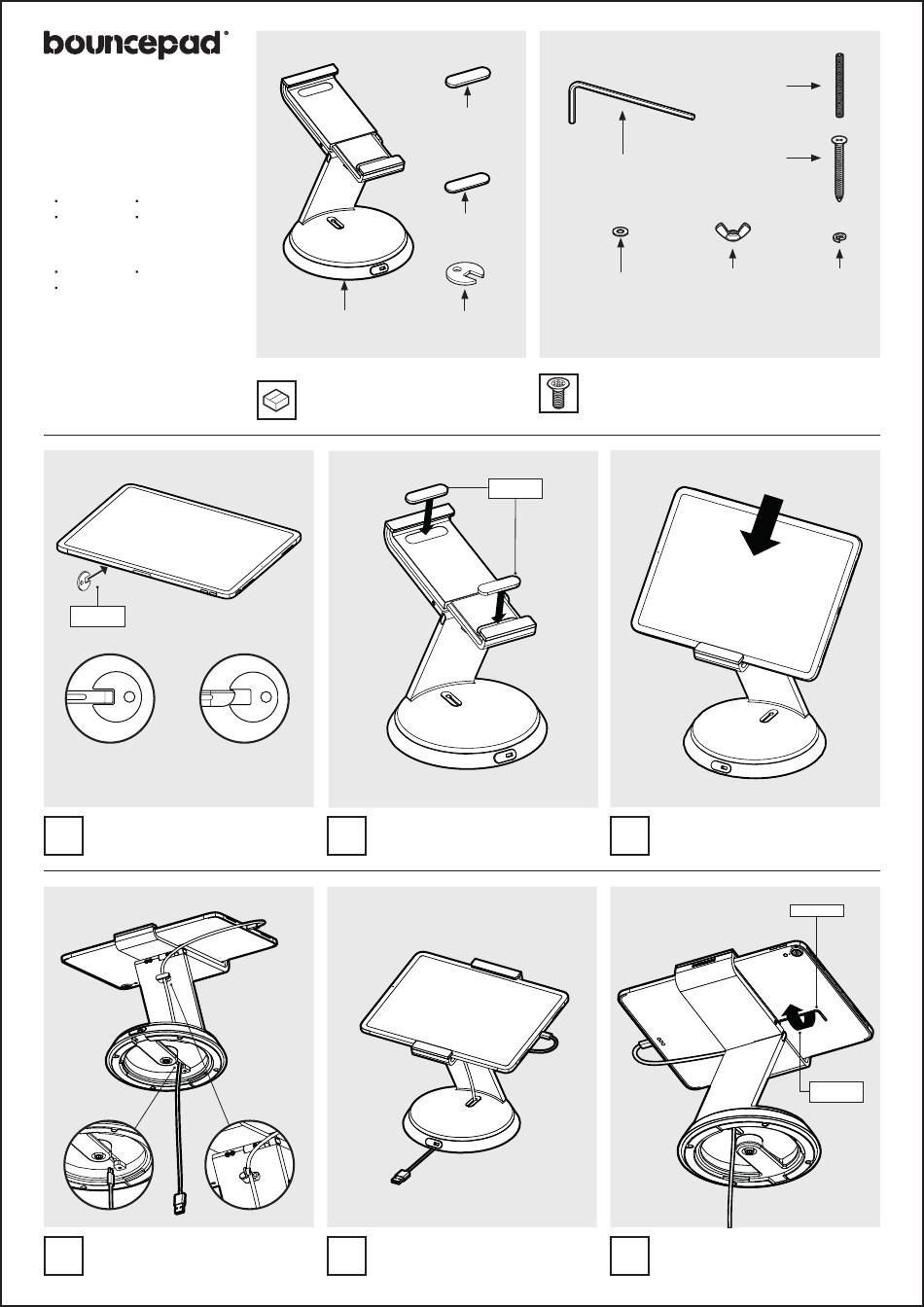

bouncepad EDDY Assembly Instructions

EDDY
Assembly Instructions
No Tools Required for Basic Setup
Tools Required to Fix From Above:
Drill 4mm Drill Bit
Pencil PZ2 Screwdriver
Tools Required to Fix From Below:
Drill 5mm Drill Bit
Pencil
Sheet Code: BP-IM-060_REV1
Release Date: 22/06/2020
Copyright 2020 Spotspot Ltd. (T/A
Bouncepad) all rights reserved.
Confidential, no part of this publication
may be reproduced or transmitted in any
form without the written permission of the
copyright holder.
Tablet support
guide
* If your tablet fits in the guide, * If your tablet doesn't fit in the
use thick tablet supports guide, use thin tablet supports
Use the tablet support guide to select
1
the correct tablet supports.
* Bouncepad charge cable sold
Feed your charge cable through the
4
base and plug it into your tablet. Use
the rubber hooks to keep it tidy.
2x thick tablet supports
2x thin tablet supports
1x Eddy stand 1x tablet support guide
In the Box
Remove adhesive backing and apply
2
tablet supports to Eddy.
separately
Basic setup is now complete.
5
Continue with Steps 6 and onwards
to add security features.
1x 2mm hex key
4x M4 flat
washer
Fixings List
Tablet supports
(thick or thin)
3
Fit your tablet.
Use the 2mm hex key to secure your
6
tablet to Eddy.
4xM4 x 50mm
Grub Screw
4xNo.8 x 25mm
countersunk self-
tapping screw
4x M4 split
4x M4 wing nut
washer
2mm Hex key
Turn clockwise
until finger tight
