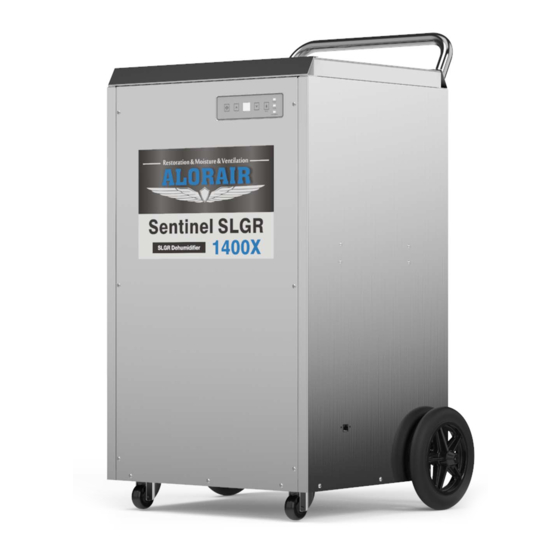

- Page 1 Sentinel SLGR 1400X Installation&OperationsManual Patent pending Add: 4240 Latham Street, Suite D, Riverside, CA 92501 Tel: 888-990-7469 Web: www.alorair.com E-mail: Sales@alorair.com Specifications subject to change without notice.
-
Page 2: Table Of Contents
TableofContents ..........Important Notes ........Warranty Registration ..........Specifications ..........Works ............Installation ..........Functions ..........Indicator Lights ..........Remote Control ........Operating Instructions ..........Unit Diagram ........... Maintenance ........Dehumidifier Storage ..........Troubleshooting ............ Spare Parts ........Warranty Information... -
Page 3: Important Notes
This information is necessary for seeking assistance in the future and can be found on the data label on the side of the unit. Model Number: Sentinel SLGR 1400X SerialNumber:______________DateofPurchase:_____________ For additional questions concerning your dehumidifier, contact your local installer or call Alorair at 888-990-7469. -
Page 4: Specifications
ETL Listed: Yes How It Works Alorair dehumidifiers use an integrated humidistat to monitor theconditioned space. When the relative humidity goes above the selected setpoint, the dehumidifier will energize. Air is then drawn across an evaporator coil, which is cooler than the dew point of air. This means moisture will condense out of the air. -
Page 5: Key Functions
Key Functions 1.PowerKey · Use this button to turn the dehumidifier on and off. · Press once to turn machine on. You will hear two beeps and light will illuminate green (solid or flashing depending on mode). ·Press the power button a second time and you will hear one beep as the machine shuts down. -
Page 6: Indicator Lights
Indicator Lights 1. Humidity Display Screen ·The display screen has two functions: 1. When the unit is powered on, it shows the humidity of the space 2. When setting the desired humidity level, the screen will show the set point. After a brief delay, it will revert to current humidity of the space. -
Page 7: Remote Control
Remote Control Instructions Alorair Dehumidifiers can be controlled using an optional remote accessory. The remote connects to your dehumidifier via a 25’ CAT 5 cable, with the integrated sensor giving you multiple options for monitoring surrounding conditions. Example #1- Install the dehumidifier in the laundry room and duct it into the living room. -
Page 8: Operating Instructions
Operating Instructions 1. Start the machine • Press the power key to turn the dehumidfier on. 2. Adjust the settings • Use the up and down arrow keys to adjust your desired setpoint (typically 50-55%) 3. Stop the machine • Press the power button again and the dehumidifier will stop. Note that the fan will continue to operate for 1 minute after the unit has shut off. -
Page 9: Unit Diagram
Unit Diagram Pre-filter Side Panel Control Panel Remote Control FrontView Drain Hose Connection Power Cord BackView... -
Page 10: Maintenance
Pump Maintenance Your Sentinel SLGR 1400X is equipped with an integral condensate pump designed to pump water from the dehumidifier out to the desired drain. The pump requires routine maintenance that is not covered by the warranty. - Page 11 Removing the Pump 1. Remove the 7 screws on the side panel and set panel aside. 2. Remove the screw holding the pump in place. 3. Undo the 3 pump electrical quick connects and 1 drain quick connect. 4. Insert a flat head screwdriver into the notch on the side of the pump.
-
Page 12: Dehumidifier Storage
Dehumidifier Storage If the unit will be stored for an extended period of time, complete the following steps: 1. Turn off the unit and allow it to dry. 2. Complete steps 1-3 in Advanced Pump Cleaning to clean out the pump reservoir. -
Page 13: Troubleshooting
Troubleshooting Symptom Cause Solution Verifythatboth ends of the power cord are Poor Connection plugged in Diaplay is Blank Power Outage Reset power FilterisDirty Cleanthefilter NoAirFlow AirInletorOutletisBlocked. Cleartheblockage Check to ensure that the sensor wire is Humidity Sensor or connected at both ends, if no issues are TroubleCode: Communication Error visible, the sensor may be faulty. -
Page 14: Spare Parts
Spare Parts Remote Control Fan Components Remote Control Assembly Alorair Fan Motor N-802 (includes W-101 and W-100 Alorair Complete Fan W-102) N-804 Assembly W-101 Alorair Remote Control Fan Capacitor N-117 Alorair Remote Control W-102 Cable Filters + External Components Display/Control... -
Page 15: Warranty Information
Alorair warehouse (at the expense of the customers) if customers are not available. 3. After the unit has been received by Alorair (whether at a repair center or the warehouse), Alorair will have an initial inspection If it is determined to be invalid warranty claim (see exclusions below), customers have to pay for all associated repair costs and shipping costs for units repair. - Page 16 Any dishonesty or fraud in connection with Alorair warranty thoroughly voids all warranty policies. Alorair expressly reserves the right to pursue legal action in the event of dishonesty, fraud, or attempted fraud.
