- Page 1 Sentinel HS35 Installation & Operations Manual AlorAir Solutions INC. Add: 14752 Yorba Ct Chino Ca91710 US Tel: 1-888-990-7469 E-mail: sales@alorair.com...
- Page 2 SAFETY WARNING ● Please read this user manual carefully before use. ● This machine uses an environmentally friendly refrigerant R32, with a filling capacity of 6.35 oz. The refrigerant is colorless, odorless and flammable, with combustion A2 level. ● Do not place the dehumidifier near flammable objects (for example: open flames, stoves, electric heaters).
- Page 3 WARRANTY REGISTRATION Congratulations on purchasing a new Sentinel Dehumidifier. Your new dehumidifier comes with an extensive warranty plan. To register, simply fill out and return the warranty form provided in the dehumidifier box. Be sure to note your dehumidifier serial number as you will need it for registration. SAFETY NOTES ●...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Identification Electrical Supply Principle of Operation Installation Key Functions Indicator Lights Diagram Maintenance Dehumidifier Storage Troubleshooting Spare Parts Warranty Information... -
Page 5: Identification
For future reference, write down the model, serial number, and date of purchase for your dehumidifier. This is extremely helpful if you need to seek assistance in the future. The data label on the side of the device has the key characteristics of a particular machine. Model: Sentinel HS35 Serial Number: Date of Purchase:... -
Page 6: Installation
INSTALLATION The area to be controlled should be sealed with a vapor barrier. If unit is installed in a crawlspace, all vents should be sealed. WARNING: Do not install your dehumidifier in a corrosive environment. Some liquid vapor barriers dry via “solvent evaporation”. Always make sure that barrier is completely dry and area is throughly ventilated before installing dehumidifier. -
Page 7: Indicator Lights
● 30 Gear The humidity is set to 30%RH. When the humidity is below 30%RH the machine will automatically shut down. ● 50 Gear The humidity is set to 50%RH. When the humidity is below 50%RH the machine will automatically shut down. ●... -
Page 8: Diagram

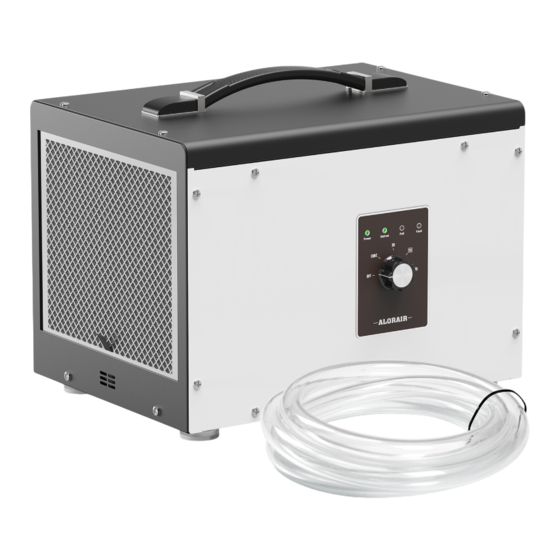

SENTINEL HS35 DIAGRAM Front View Unit Housing Handle Control Panel Filter Rear View Handle Unit Housing Power Cord Air Outlet Gravity Drainage - 4 -... -
Page 9: Maintenance
MAINTENANCE WARNING: Always unplug the unit before doing any maintenance. Cleaning the machine body Use a soft damp cloth to clean exterior of unit. Do not use any soap or solvents. Coil Maintenance • Once per year, clean the coils with an approved coil cleaner. •... -
Page 10: Troubleshooting
TROUBLESHOOTING Room Temperature Over 105 °F or Below 33 °F (The set humidity must be lower than the ambient humidity.) Low Airflow Trouble Code: E1 The fault indicator blinks twice 1. Check whether the reservoir is full. If it is full, drain it. Trouble Code: E4 The reservoir is full 2. -
Page 11: Spare Parts
2. The drainage height is exceeded, the water pipe should not be higher than the dehumidifier, and should be discharged downward. 3. Water level sensor malfunction. × × Water Level Sensor SENTINEL HS35 SPARE PARTS Sentinel HS35 - Parts S-601 S-602 S-603 S-604 S-605... -
Page 12: Warranty Information
LIMITED WARRANTY This limited warranty starts from the date of purchase, AlorAir Solutions Inc. warrants to the original purchaser that this AlorAir product is free from manufacturing defects in material or workmanship for the limited warranty period of: Six (6) Month parts and labor. This includes the shipment charges for replacement parts or unit. - Page 13 CIRCUIT DIAGRAM (BK) (BU) CONTROL PANEL – - 9 -...
