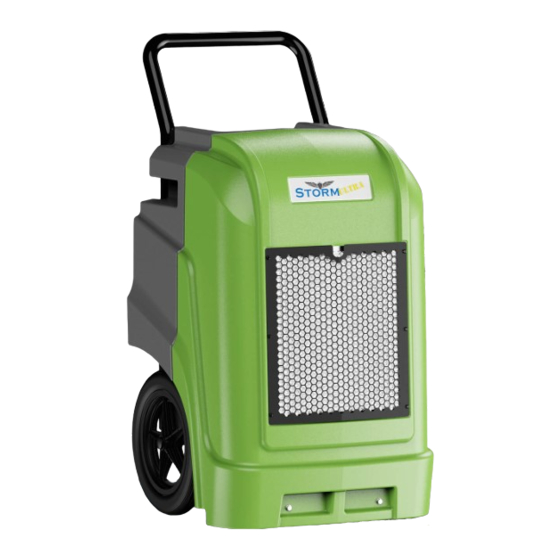

- Page 1 STORM PRO DEHUMIDIFIER INSTALLATION AND OPERATIONS MANUAL - READ AND SAVE THESE INSTRUCTIONS - Patent Pending Specifications subject to change without notice. AlorairSolutionsINC. Add: 4240 Latham Street, Suite D, Riverside, CA 92501 Tel: 1-888-990-7469 E-mail:sales@alorair.com...
- Page 2 Safety Notes The Storm Pro dehumidifier must always be connected using a grounded electrical connection as required for all electrical appliances. The warranty is voided and all respon- sibility for the operation transfers to the owner if non-grounded wiring is utilized.
-
Page 3: Table Of Contents
Table of Contents Introduction..................Unit Overview .................. LCD Display Introduction ............... Preparing the Unit for Use ............................Maintenance & Repair ..............Storing Your Dehumidifier Troubleshooting ................Warranty ..................Readiness Checklist ................. Service Checlist ................ -
Page 4: Introduction
Introduction Identification Congratulations on purchasing a Storm Pro dehumidifier! The Storm Pro comes with an extensive warranty plan. To ensure you are eligible, be sure to note the serial number and date of purchase. The serial number can be found on the data on the back of the unit. - Page 5 How Your Storm Dehumidifier Works The Storm Pro dehumidifier utilizes its integral humidistat to monitor the conditioned space. Once conditions are outside the desired setpoint, the compressor energizes and air is drawn across an evaporator coil. The evaporator coil is cooler than the dew point of the air so water vapor will turns into liquid condensation.
-
Page 6: Unit Overview
Unit Overview Front View Front Cover Handle Air Filter Access Latch Wheel Air Inlet Rear View LCD Display Air Outlet Tubing & Cord Rack Drain Tube Power Cord Connection... - Page 7 LCD Display Instructions PURGE PURGE PURGE PURGE PURGE PURGE 1. When the machine is powered on but not working: ( after power on, the buzzer makes a sound ) Boot display: The LOGO interface The machine displays when it is not will disappear after 2 seconds.
- Page 8 000 LIFE HRS: Refers to the total working time, i.e. the total working time (hours), which is in hours.(press the mode key + select the confirmation key, and the total working time will be cleaned after 3 seconds. IN/OUT 00℉ 00% 00 gr / lb: Indicates the temperature, humidity and moisture content of the air inlet and outlet {GPP - grain per pound (gr/lb)}.
- Page 9 Wifi hotspot: factory setting is "0FF", press > to enable wifi hotspot and switch ON/OFF.The device can transmit data and receive APP commands.The icon flickers when connected on the main interface. After successful connection, the icon displays normally. 3.5.1 3.5.2 The power down time is adjusted according to">"...
- Page 10 "Humidistat Setpoint 00%":Used for setting dehumidification mode humidity.Press ">" to set the humidity. The adjustment range of humidity setting is between 25 and 80%. Each key rises or falls 5%, which can be recycled. When the setting is completed,do not operate for 5 seconds and begin to take effect.(Otherwise, the compressor will be shut down immediately after it is below ambient humidity at the time of setting.) Humidity below 25 percents "CO"...
- Page 11 6. Water Pump working interface display Compressor protection time not shown: “Pump working countdown”: indicates: No matter in which working state and interface, as long as the pump works, this interface appears and counts down to 28 seconds.However, the interface only displays the previous working status and interface after 3 seconds.For example, after 3 seconds, there is a drainage icon on the main interface and it will flash until the drainage is finished.
-
Page 12: Preparing The Unit For Use
When the compressor is started, if the coil temperature value detected is greater than or equal to (ambient temperature -3 degrees) for 30 minutes continuously, it is judged to be fluorine deficient (except defrosting), E5 is displayed, and the machine cannot be stopped for operation (it needs to be powered up again after troubleshooting). - Page 13 3. Firmly insert the power cord into the socket on back of the unit under the air outlet. 4. Turn on the dehumidifer and use the control panel to set up the dehumidifier as desired. Optional Duct Installation Ducting of the unit allows you to condition an adjacent room or focus the discharge to a specific area.
-
Page 14: Maintenance & Repair
Maintenance and Repair Exterior Cleaning Use a soft, slightly damp cloth to wipe the plastic body. Never spray the exterior directly with water or cleaner. Filter Cleaning The Pro comes standard with a prefilter and MERV-8 filter, which are washable. NOTE: The carbon filter and HEPA filter (optional accessories) are NOT washable. - Page 15 Accessing Internal Components WARNING Always unplug unit prior to performing any maintenance. 1. Remove the screws from the side latches (one per side). Remove the screw and open the latch (one per side) 2. Undo the two latches on the base of the unit by pressing in the safety then opening the latch.
- Page 16 Access screws for electrical compartment Cover Pump Integral Pump Maintenance NOTE: This pump requires routine maintenance that is not covered by your 1 year parts warranty. Only a defective pump will be repaired or replaced under the warranty. As with all pumps, preventative maintenance is necessary to prevent issues from dirt and slime that may accumulate in the drain system.
- Page 17 Advanced Pump Cleaning: 1. a. Use the manual pump button (P), to drain any water from reservoir. b. Unplug the unit, and remove pump from reservoir (see page 13) c. Use a wet dry vac or paper towels to remove any remaining water from the pump reservoir.
-
Page 18: Storing Your Dehumidifier
Storing Your Dehumidifier If you plan on storing your dehumidfier for an extended period of time: 1. Turn unit off and allow to dry. 4. Clean the filter. 2. Manually drain pump reservoir. 5. Store in clean,dry environment. 3. Wrap and secure the power cord. Troubleshooting Symptom Cause... - Page 19 If an E4 code appears on the display: 1. Reset the unit by disconnecting the power cord and then reconnecting it. NOTE: The unit will not function until the code has been cleared. 2. Manually check to see if pump is operational by pressing the drain button. Verify that the pump energizes and de-energizes properly.
-
Page 20: Warranty
Return Authorization (RA number). Once an RA has been issued, customers should bring the unit to a certified repair center. AlorAir will arrange the shipping to bring the unit back to the Alorair warehouse (at the expense of the customers) if customers are not available. - Page 21 THE SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OR ALLEGED BREACH OF WAR- RANTY BY SELLER ANY DISHONESTY OR FRAUD IN CONNECTION WITH ALORAIR SOLUTIONS WARRANTY THOROUGHLY VOIDS ALL WARRANTY POLICIES.ALORAIR SOLUTIONS EXPRESSLY RESERVES THE RIGHT TO PURSUE LEGAL ACTION IN THE EVENT OF DISHONESTY, FRAUD, OR...
