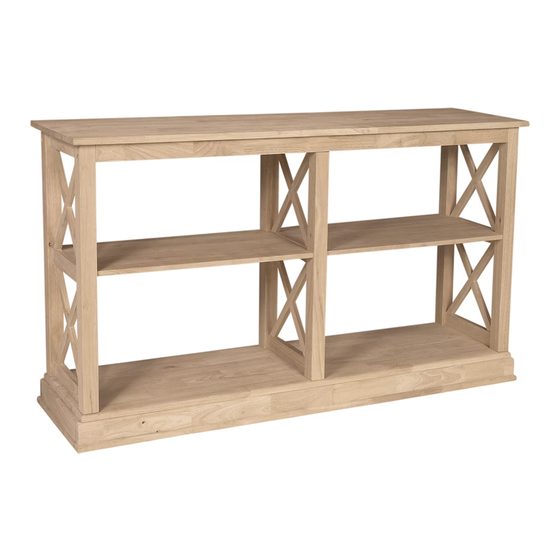

- Page 1 ASSEMBLY INSTRUCTIONS Description : HAMPTON SOFA TABLE WITH SHELVES Item No. : OT-70SL ITEM NO.: OT-70SL Printed in Vietnam REVISED MAR 02, 2020 - 1 -...
-
Page 2: Before Assembly
Protect the surface of the table with cloth if you are using any product with rubber feet or base. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: OT-70SL Printed in Vietnam REVISED MAR 02, 2020 - 2 -... -
Page 3: Part List
Flat Washer (M6 x 35mm) (6.5 x 19mm) Lock Washer Shelf support (6.5 x 11mm) bracket Allen Key Screw (M4 x 30mm x 110mm) (M3.5 x 15mm) Leveler ITEM NO.: OT-70SL Printed in Vietnam REVISED MAR 02, 2020 - 3 -... - Page 4 Attach bottom panel (E) to the unit with bolts (1), and washers (2) and (3) as shown below. Tighten with Allen key (5). Attach levelers (7) by screwing them into bottom panel (E), as shown below. ITEM NO.: OT-70SL Printed in Vietnam REVISED MAR 02, 2020...
- Page 5 Insert brackets (4) into the unit as shown below. Place shelves (C) on the brackets and attach with screws (6). Tighten with a screwdriver. Adjust the levelers to the appropriate height to level the table. ITEM NO.: OT-70SL Printed in Vietnam REVISED MAR 02, 2020...
