To properly perform assembly and torquing of
connectors (cont.)
Overview
Torquing multi- 1. If starting from a fully disassembled state, order the
ple inline
connections so that they are assembled from the outside
connectors
moveable portions toward the inward (stationary)
portions. Disassemble from the inside outward.
2. If starting from a partially disassembled state, such as
with a protective coupler, leave subassemblies intact.
3. Maximize protection and minimize disturbance for the
connection that is intended to be preserved by the
protective coupler.
Joining two 1. Position the cable and order the connections to
stationary
minimize the side and end loading on the last
connectors with
connection.
a semi-rigid
2. If available, use a protective connector to prevent or
coaxial cable
reduce damage to a connector.
Final 1. Use a torque wrench to make the final connection. See
connection
Table 5 on page 42 for torque wrench information.
2. Rotate only the connector nut that you are tightening. If
necessary, use an open-end wrench to keep the body of
the device from turning.

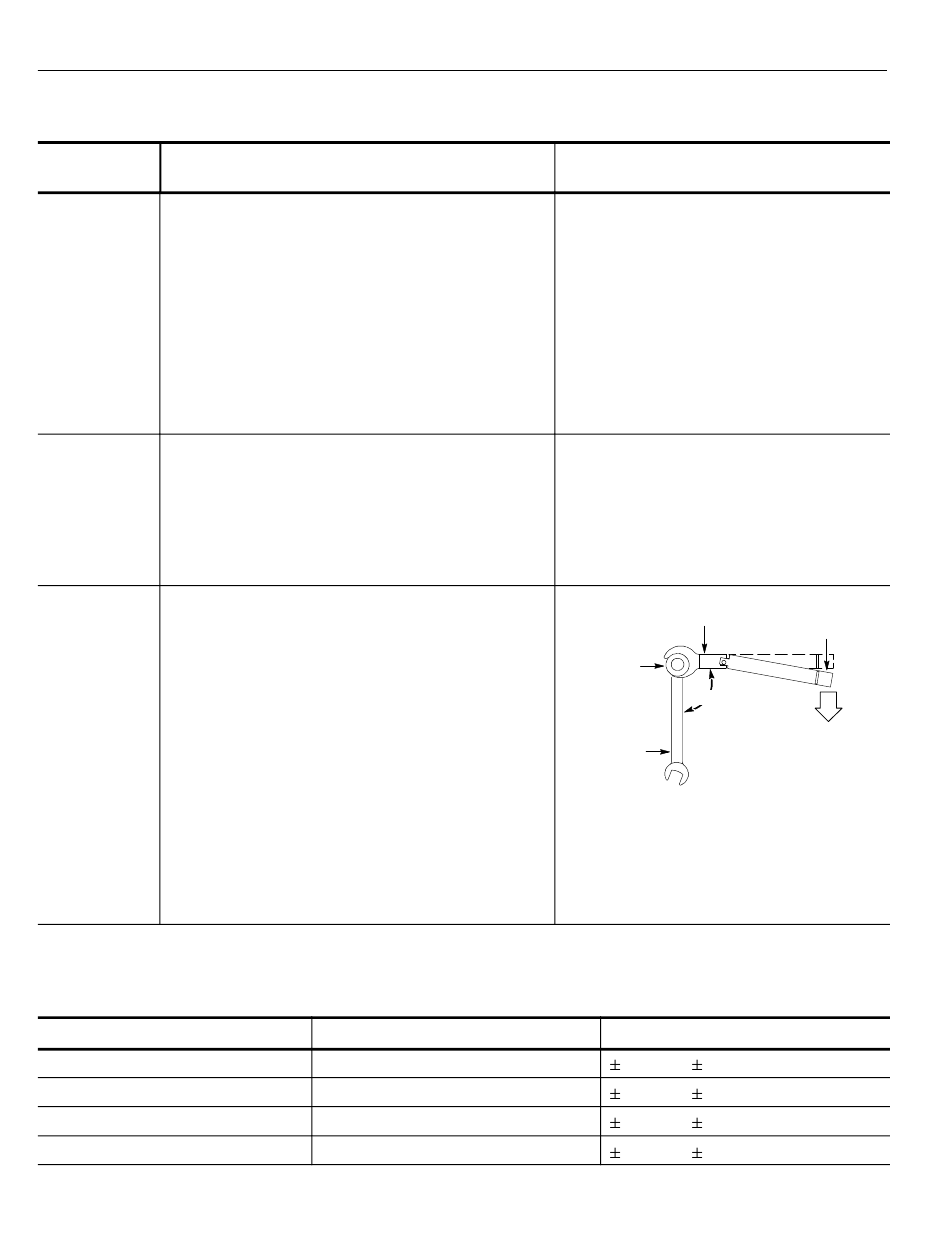

3. Position both wrenches within 90 degrees of each other
before applying force. Refer to the illustration at right.
4. Hold the torque wrench lightly at the end of the handle.
5. Apply downward force perpendicular to wrench handle;
this applies torque to connection through the wrench.
6. Tighten the connection just to the point that the wrench
breaks over. Do not overtighten the connection.

Table 5: Torque Wrench Information

Connector Type
SMA
2.4 mm
2.92 mm
3.5 mm
42
Torque Setting
56 N-cm (5 in-lb)
90 N-cm (8 in-lb)
90 N-cm (8 in-lb)
90 N-cm (8 in-lb)
Control elements & resources
Torgue wrench
Connector
Keep
wrench
stationary
Torque Tolerance
5.6 N-cm ( 0.5 in-lb)
9.0 N-cm ( 0.8 in-lb)
9.0 N-cm ( 0.8 in-lb)
9.0 N-cm ( 0.8 in-lb)
