Getting Started

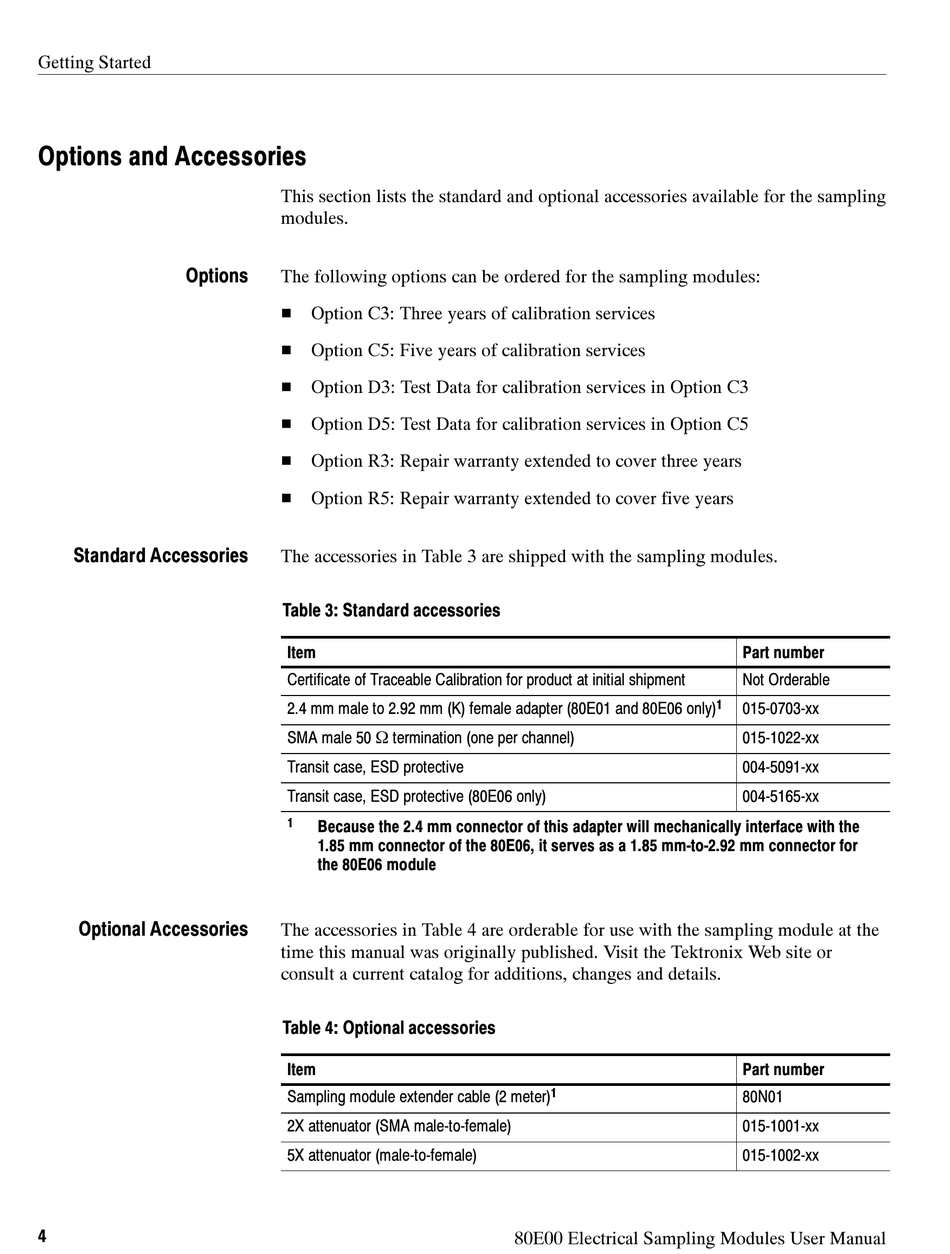

Options and Accessories

Options

Standard Accessories

Optional Accessories

4
This section lists the standard and optional accessories available for the sampling
modules.
The following options can be ordered for the sampling modules:
H Option C3: Three years of calibration services
H Option C5: Five years of calibration services
H Option D3: Test Data for calibration services in Option C3
H Option D5: Test Data for calibration services in Option C5
H Option R3: Repair warranty extended to cover three years
H Option R5: Repair warranty extended to cover five years
The accessories in Table 3 are shipped with the sampling modules.

Table 3: Standard accessories

Item
Certificate of Traceable Calibration for product at initial shipment
2.4 mm male to 2.92 mm (K) female adapter (80E01 and 80E06 only)
SMA male 50 termination (one per channel)
Transit case, ESD protective
Transit case, ESD protective (80E06 only)
1
Because the 2.4 mm connector of this adapter will mechanically interface with the
1.85 mm connector of the 80E06, it serves as a 1.85 mm-to-2.92 mm connector for
the 80E06 module
The accessories in Table 4 are orderable for use with the sampling module at the
time this manual was originally published. Visit the Tektronix Web site or
consult a current catalog for additions, changes and details.

Table 4: Optional accessories

Item
Sampling module extender cable (2 meter)
2X attenuator (SMA male-to-female)
5X attenuator (male-to-female)
1
80E00 Electrical Sampling Modules User Manual
Part number
Not Orderable
1
015-0703-xx
015-1022-xx
004-5091-xx
004-5165-xx
Part number
80N01
015-1001-xx
015-1002-xx
