HySecurity

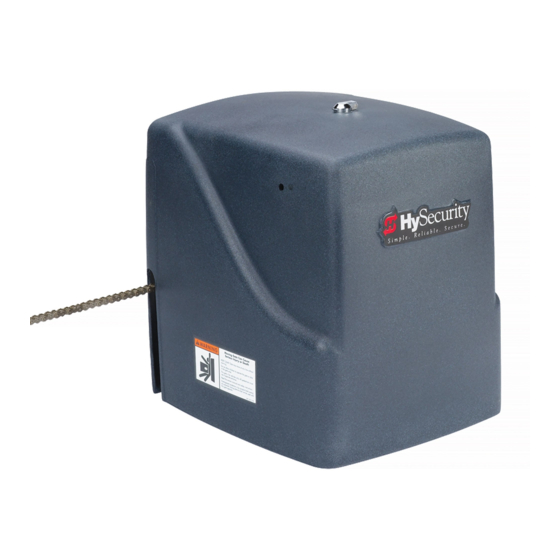

SlideSmart DC 15 Gate Operator

SlideSmart DCS 15 Gate Operator

SlideSmart DC 10F Gate Operator

SlideSmart DCS 10F Gate Operator

Installation and Maintenance Manual

D0337 - Revision C

(15 March 2011)

HySecurity

Corporate Headquarters

6623 S 228th Street

Kent, WA 98032

Need help?

Do you have a question about the SlideSmart DC 15 and is the answer not in the manual?

Questions and answers

Summary of Contents for HySecurity SlideSmart DC 15

Page 1 All manuals and user guides at all-guides.com HySecurity SlideSmart DC 15 Gate Operator SlideSmart DCS 15 Gate Operator SlideSmart DC 10F Gate Operator SlideSmart DCS 10F Gate Operator Installation and Maintenance Manual D0337 - Revision C (15 March 2011) HySecurity...
Page 2 All manuals and user guides at all-guides.com SlideSmart Components Cover, Latch Cover WARNING Label Control Box Board, Smart DC Controller Pulley, Motor Protection plate & Cover Buzzer Switch, Reset Emergency Stop button Pulley, Gearbox Belt Drive, 2ft/s Motor Pulley, Gearbox DC Switch, Belt drive, 1ft/s On/Off...
Page 3 HySecurity provides product installation, maintenance and troubleshooting training. View opportunities online at the HySecurity website: www.hysecurity.com/support. For Technical Support, call 800-321-9947. HySecurity does not share this warranty registration information with third parties unless the requested services, transactions, or legal requirements necessitate it. © 2010...
Page 4 All manuals and user guides at all-guides.com...
Page 5 All manuals and user guides at all-guides.com SlideSmart Components Introducing SlideSmart DC Chapter 1: Safety Requirements Chapter 2: Installation Revision C Contents - 1...
Page 6 All manuals and user guides at all-guides.com Contents Chapter 3: Power Chapter 4: Display and Menu Options Chapter 5: Smart DC Controller Contents - 2 SlideSmart Installation and Reference Manual Revision C...
Page 7 All manuals and user guides at all-guides.com Contents Chapter 6: Bi-parting Gate Systems Chapter 7: Reference Appendix A: Installation Configurations Revision C Contents Contents - 3...
Page 8 All manuals and user guides at all-guides.com Contents Parts & Limited Warranty Contents - 4 SlideSmart Installation and Reference Manual Revision C...
Page 9 All manuals and user guides at all-guides.com Intelligent Features: Smart DC ControllerTM Robust Power Finesse UPS backup and Solar ready Menus and User relays Independent adjustment for open and close gate speeds Intelligent Inherent Entrapment Sensor (IES) Improved Liquid Crystal Display (LCD) USB communications port START software and diagnostics Intro-2...
Page 10 All manuals and user guides at all-guides.com Technical Support SlideSmart Components Revision C Introducing SlideSmart DC Intro-3...
Page 11 All manuals and user guides at all-guides.com Installer's Check List Smart Touch Analyze and Retrieve Tool Reference Smart Touch Analyze and Retrieve Tool Intro-4 SlideSmart Installation and Reference Manual Revision C...
Page 12 All manuals and user guides at all-guides.com...
Page 13 All manuals and user guides at all-guides.com Important Safety Instructions Identifying Gate Operator Category and Usage Class → Revision C Safety Requirements...
Page 14 All manuals and user guides at all-guides.com Important Safety Instructions → Secondary Entrapment Protection Sensors → → → SlideSmart Installation and Reference Manual Revision C...
Page 15 All manuals and user guides at all-guides.com Important Safety Instructions Revision C Safety Requirements...
Page 16 All manuals and user guides at all-guides.com Important Safety Instructions Hazardous Waste Regulations SlideSmart Installation and Reference Manual Revision C...
Page 17 All manuals and user guides at all-guides.com Secondary Entrapment Protection Sensors PHOTOELECTRIC EYES: EDGE SENSORS: SENSOR SECURITY: SENSOR FUNCTION and COMMUNICATION: UL 325 LISTING: Important Safety Instructions Revision C Safety Requirements...
Page 18 All manuals and user guides at all-guides.com Secondary Entrapment Protection Sensors SlideSmart Installation and Reference Manual Revision C...
Page 19 All manuals and user guides at all-guides.com Secondary Entrapment Protection Sensors Revision C Safety Requirements...
Page 20 All manuals and user guides at all-guides.com Emergency Stop Button Emergency Stop You DO NOT need to turn AC power off to manually push the gate. 1. Make sure the gate is not moving. 2. Flip the DC power switch on. 3.
Page 21 All manuals and user guides at all-guides.com Safety Notices AFETY OTICES The following four levels of safety notices are used where applicable within this manual; each notice contains information specific to the situation. DANGER Indicates death or serious injury will occur if the hazardous situation is not avoided. WARNING Indicates death or serious injury could occur if the hazardous situation is not avoided.
Page 22 All manuals and user guides at all-guides.com Common Industrial Symbols S-10 SlideSmart Installation and Reference Manual Revision C...
Page 23 230 volts, 1.5 amps, 50/60 Hertz 230 volts, 1.5 amps, 50/60 Hertz ½ ½ Motor: Motor: Gate speed: 1ft/s Gate speed: 2ft/s Gate weight: Maximum 1500lbs (675kg) Gate weight: Maximum 1000lbs (450kg) Note:For SlideSmart DC Solar operators, refer to www.hysecurity.com Revision C Installation...
Page 24 All manuals and user guides at all-guides.com Site Overview & Planning Chain 6.4" #40 Roller (16.3cm) Gate Area cut out 5" (26.7cm) conduit 21" (53.3cm) 6.9 x 12" (17.5 x 30.5cm) 1.6" (4.1cm) Slotted holes (4x) for Concrete 10.38" concrete anchors: (26.4cm) ½...
Page 25 All manuals and user guides at all-guides.com Site Overview & Planning Gate Chain to Gate 3¾" (9.5cm) Ideal distance = Minimum distance = 2½" (5cm) Cut out if rear Chain install height ¾" (19.7cm) Grade level Concrete pad Side View Concrete Pad Mount Conduit cut outs Revision C...
Page 26 All manuals and user guides at all-guides.com Site Overview & Planning Public Side Physical stop (2x) Chain Secure Side Chain bracket (2x) Note: Several different ways to mount the SlideSmart operator exist. A few are shown here. For more detailed drawings, refer to the Installation Configurations in the Appendix.
Page 27 All manuals and user guides at all-guides.com Site Overview & Planning Sprocket Chain Target magnet position between idler wheel and sprocket when gate is fully closed. See Figure 1-20. Idler wheel Target magnet View shows how to feed chain over sprocket and idler wheel for a rear installation.
Page 28 All manuals and user guides at all-guides.com Unpacking the Operator Lock Cover Base plate SlideSmart Installation and Reference Manual Revision C...
Page 29 All manuals and user guides at all-guides.com Concrete Pad Mount Left hand gate Chain to Gate (shown in full CLOSE 3¾" (9.5cm) Ideal distance = position) Minimum distance = 2½" (5cm) Gate Chain resides Gate support Chain inside gate 6.4" posts #40 Roller support posts...
Page 30 All manuals and user guides at all-guides.com Gate Bracket and Chain Installation Public Side Secure Side 7¾" (19.7cm) SlideSmart Installation and Reference Manual Revision C...
Page 31 All manuals and user guides at all-guides.com Gate Bracket and Chain Installation Sprocket Idler wheel Keep chain horizontal to the ground. Target sensor (RH gate) Target sensor (LH gate) SIDE VIEW CORRECT INSTALLATION Chain to gate Ideal distance = 3¾" TOP VIEW (9.5cm) Too close to gate...
Page 32 All manuals and user guides at all-guides.com Gate Bracket and Chain Installation Connect red battery wire Turn DC power ON Note:Programming the Setup Menu is usually a one-time occurrence unless factory defaults are reinstated through the Installer Menu. The RESET and MENU buttons do not function during the initial configuration of the Setup Menu.
Page 33 STOP RESET SELECT PREV NEXT SH 0 GATE HANDING OPEN CLOSE STOP MENU RESET PREV NEXT SELECT SlideSmart DC 15 WT 0 GATE WEIGHT (LB) SlideSmart DC 10F OPEN CLOSE STOP MENU RESET PREV NEXT SELECT Revision C Installation 1-11...
Page 34 NEXT SELECT Installing the Target Magnet Note: NO AC POWER flashes after the gate status display if the AC power has not been connected or the lower power switch is turned off. HYSECURITY GATE CLOSED OPEN CLOSE STOP MENU RESET...
Page 35 All manuals and user guides at all-guides.com Gate Bracket and Chain Installation Installing the Target Magnet NOTE: Only one magnet is required. Two target sensors are provided for LH & RH gate applications, but only one sensor is used. Mark the chain Figure 1-17.
Page 36 All manuals and user guides at all-guides.com Gate Bracket and Chain Installation Establishing the OPEN & CLOSE Limits Roller chain sprocket Position of the target magnet when the gate is Trailing edge of gate fully closed. (Gate shown in full CLOSE position) Idler wheel Target...
Page 37 All manuals and user guides at all-guides.com Gate Bracket and Chain Installation OPEN Position of the Chain motion target magnet when the gate is fully closed. OPEN Revision C Installation 1-15...
Page 38 All manuals and user guides at all-guides.com Gate Bracket and Chain Installation 1-16 SlideSmart Installation and Reference Manual Revision C...
Page 39 All manuals and user guides at all-guides.com Installing the Earth Ground Chapter 2 Standard for the Installation of Lightning Protection Systems Revision C Power...
Page 40 All manuals and user guides at all-guides.com Installing the Earth Ground Lug nut New site Existing site 3 ft Consult local codes for proper Wiring 115VAC Power Wiring 230VAC Power depth. Ground wire and lug nut SlideSmart Installation and Reference Manual Revision C...
Page 41 All manuals and user guides at all-guides.com Wiring AC Power Place the power switches in the OFF position. WARNING DO NOT connect the 115VAC service outlet to 230VAC power supply wires! To use the 115VAC service outlet on a 230VAC installation, the electrician needs to run an extra neutral wire to the operator from the power source and wire the service outlet per code.
Page 42 All manuals and user guides at all-guides.com Wiring AC Power AC Power 14 gauge wire 12 gauge wire 10 gauge wire Note: SlideSmart Installation and Reference Manual Revision C...
Page 43 All manuals and user guides at all-guides.com Wiring AC Power Wiring 115VAC Power AC Power 14 gauge wire 12 gauge wire 10 gauge wire Note: Voltage selector switch set to 230V. Revision C Power...
Page 44 All manuals and user guides at all-guides.com Using A Solar Powered Operator Installing Photoelectric Sensors For Secondary Entrapment Protection Only SlideSmart Installation and Reference Manual Revision C...
Page 45 All manuals and user guides at all-guides.com Using A Solar Powered Operator Important Considerations for DC-powered Operators Minimum Minimum 10W Panel 10W Panel Minimum 20W Panel Two 12V panels in series connect to gate operator One 24V panel connects to gate operator Revision C Power...
Page 46 All manuals and user guides at all-guides.com Using A Solar Powered Operator Installing the Extended Battery Backup Kit Programming the Initial Setup Menu Control Box DC Battery & Motor switch (OFF) Red spade connector DC Solar Panel switch (OFF) Input & ground wires SlideSmart Installation and Reference Manual Revision C...
Page 47 All manuals and user guides at all-guides.com Using A Solar Powered Operator Example of Peripheral Amp Draw COM MON HY-5A TERMINALS FREE EXIT HY-5A INSIDE LOOP STOP OPEN CLOSE OPEN P ARTIAL HY-5A OPEN OUTSIDE LOOP CLOSE EXIT LOOP BLOCK EXIT IN OBS LOOP...
Page 48 The number of amps that the peripherals draw coupled with the gate travel during the day, determines the solar panel size needed. NOTE: HySecurity provides a 50Ah battery option for sites where high gate travel and inclement weather are an issue. For sites of this nature, consider a 40W system. A 40W system doubles the feet of gate trave/day that is shown in the chart above.
Page 49 All manuals and user guides at all-guides.com Important Considerations for DC-powered Operators Hazardous Materials and Proper Disposal Revision C Power 2-11...
Page 50 All manuals and user guides at all-guides.com Important Considerations for DC-powered Operators Post-mounted operator with base extension 50Ah batteries Posts not included in kit Accessory tray Access window 8Ah battery Screws (4x) Wire ties Control box 8Ah battery Hazardous Materials and Proper Disposal 2-12 SlideSmart Installation and Reference Manual Revision C...
Page 51 All manuals and user guides at all-guides.com Important Considerations for DC-powered Operators Black Blue Post-mounted operator with 50Ah batteries base extension Accessory tray HYSECURITY GATE CLOSED OPEN CLOSE STOP MENU RESET PREV NEXT SELECT CT 0 (OFF) CLOSE TIMER OPEN...
Page 52 All manuals and user guides at all-guides.com Important Considerations for DC-powered Operators 2-14 SlideSmart Installation and Reference Manual Revision C...
Page 53 All manuals and user guides at all-guides.com Initial Setup Chapter 3 Revision C Display and Menu Options...
Page 54 All manuals and user guides at all-guides.com Initial Setup Programming the Initial Setup Menu Establishing the OPEN & CLOSE Limits Installing the Target Magnet Power DC Power Switch AC Power Switch Note:If the target magnet is not detected by the operator, “ALERT 15 - NO TARGET”...
Page 55 All manuals and user guides at all-guides.com Initial Setup enter navigate Using the Smart DC Controller Buttons in RUN Mode Smart DC Controller Troubleshooting CT 0 (OFF) CLOSE TIMER CLOSE MENU OPEN STOP RESET PREV NEXT SELECT Revision C Display and Menu Options...
Page 56 All manuals and user guides at all-guides.com Run Mode HYSECURITY HYSECURITY HYSECURITY GATE CLOSED GATE OPEN GATE STOPPED OPEN CLOSE STOP MENU RESET OPEN CLOSE STOP MENU RESET OPEN CLOSE STOP MENU RESET PREV NEXT SELECT NEXT SELECT PREV NEXT...
Page 57 All manuals and user guides at all-guides.com Run Mode above Using the Smart DC Controller Buttons In Menu Mode Smart DC Controller Troubleshooting HYSECURITY GATE CLOSED OPEN CLOSE STOP MENU RESET PREV NEXT SELECT Note Revision C Display and Menu Options...
Page 58 All manuals and user guides at all-guides.com Run Mode SOFTWARE VERSION H5.## DUAL GATE <MASTER> OT <15>D SLIDESMART DC20 <LEFT> HAND UC <2> Note Identifying Gate Operator USAGE CLASS Category and Usage Class BT <0> STANDARD BATTERY D <32>.0 VDC BATTERY VOLTAGE CC<002600>...
Page 59 All manuals and user guides at all-guides.com User Menu Using the Smart DC Controller Buttons In Menu Mode CT 0 (OFF) CLOSE TIMER Note:To bypass the operator status displays and access the User Menu, you can press the MENU button OPEN CLOSE STOP...
Page 60 All manuals and user guides at all-guides.com User Menu CT 0 (OFF) CLOSE TIMER Note:Keep the close time at zero if gate personnel operate OPEN CLOSE STOP MENU RESET the gate or the owner plans to use a remote control. PREV NEXT SELECT...
Page 61 All manuals and user guides at all-guides.com User Menu Smart DC Controller Troubleshooting HYSECURITY GATE CLOSED OPEN CLOSE STOP MENU RESET PREV NEXT SELECT CT 0 (OFF) CLOSE TIMER Note:A date or time field must be blinking before OPEN CLOSE...
Page 62 All manuals and user guides at all-guides.com User Menu AP 0 AC LOSS UPS FAIL OPEN AP 1 AC LOSS UPS FAIL CLOSE AP 2 AC LOSS AUTO OPEN AP 3 AC LOSS NO CLOSE TIMER User Menu AP 0 (AC LOSS) UPS FAIL OPEN Using the OPEN...
Page 63 All manuals and user guides at all-guides.com User Menu LD 5 LCD CONTRAST OPEN CLOSE STOP MENU RESET PREV NEXT SELECT Revision C Display and Menu Options 3-11...
Page 64 All manuals and user guides at all-guides.com User Menu 3-12 SlideSmart Installation and Reference Manual Revision C...
Page 65 All manuals and user guides at all-guides.com User Menu Revision C Display and Menu Options 3-13...
Page 66 All manuals and user guides at all-guides.com User Menu 3-14 SlideSmart Installation and Reference Manual Revision C...
Page 67 All manuals and user guides at all-guides.com Installer Menu Using the Smart DC Controller Buttons In Menu Mode. HYSECURITY GATE CLOSED Note:The menu items, Usage Class, Gate Handing, and Gate Weight must be configured before the OPEN CLOSE STOP MENU RESET operator will function.
Page 68 All manuals and user guides at all-guides.com Installer Menu HYSECURITY GATE CLOSED OPEN CLOSE STOP MENU RESET PREV NEXT SELECT CT 0 (OFF) CLOSE TIMER OPEN CLOSE STOP MENU RESET NEXT SELECT PREV LL 0 (OFF) LEARN LIMIT OPEN CLOSE...
Page 69 Installer Menu HYSECURITY GATE CLOSED OPEN CLOSE STOP MENU RESET NEXT SELECT PREV CT 0 (OFF) SlideSmart DC 15 CLOSE TIMER OPEN CLOSE STOP MENU RESET SlideSmart DC 10F SELECT PREV NEXT Note:Certain speeds are allowed only when the LL 0 (OFF) operator’s Usage Class is set appropriately.
Page 70 All manuals and user guides at all-guides.com Installer Menu SE 2 IES SENSITIVITY OPEN CLOSE STOP MENU RESET NEXT SELECT PREV Typical Opera on Installer Menu: IES Se ng = 2 Ini al IES threshold (First gate cycle only) Motor current threshold (at IES Se ng 2) Motor current (under typical opera ng...
Page 71 All manuals and user guides at all-guides.com Installer Menu HYSECURITY GATE CLOSED Gate design OPEN CLOSE STOP MENU RESET PREV NEXT SELECT Gate condition CT 0 (OFF) CLOSE TIMER OPEN CLOSE STOP MENU RESET NEXT SELECT PREV Gate maintenance LL 0 (OFF)
Page 72 All manuals and user guides at all-guides.com Installer Menu HYSECURITY GATE CLOSED OPEN CLOSE STOP MENU RESET PREV NEXT SELECT CT 0 (OFF) CLOSE TIMER OPEN CLOSE STOP MENU RESET PREV NEXT SELECT Note:When you press SELECT to accept FD 1, the...
Page 73 All manuals and user guides at all-guides.com Installer Menu HYSECURITY GATE CLOSED OPEN CLOSE STOP MENU RESET PREV NEXT SELECT CT 0 (OFF) CLOSE TIMER OPEN CLOSE STOP MENU RESET PREV NEXT SELECT LL 0 (OFF) LEARN LIMIT STOP OPEN...
Page 74 All manuals and user guides at all-guides.com Installer Menu 3-22 SlideSmart Installation and Reference Manual Revision C...
Page 75 All manuals and user guides at all-guides.com Installer Menu Revision C Display and Menu Options 3-23...
Page 76 All manuals and user guides at all-guides.com Installer Menu 3-24 SlideSmart Installation and Reference Manual Revision C...
Page 77 All manuals and user guides at all-guides.com Installer Menu Revision C Display and Menu Options 3-25...
Page 78 All manuals and user guides at all-guides.com Installer Menu 3-26 SlideSmart Installation and Reference Manual Revision C...
Page 79 All manuals and user guides at all-guides.com Installer Menu Revision C Display and Menu Options 3-27...
Page 80 All manuals and user guides at all-guides.com Installer Menu 3-28 SlideSmart Installation and Reference Manual Revision C...
Page 81 All manuals and user guides at all-guides.com Installer Menu Revision C Display and Menu Options 3-29...
Page 82 All manuals and user guides at all-guides.com Installer Menu 3-30 SlideSmart Installation and Reference Manual Revision C...
Page 83 All manuals and user guides at all-guides.com Chapter 4 Revision C Smart DC Controller...
Page 84 All manuals and user guides at all-guides.com Overview of the Smart DC Controller Smart DC Controller Troubleshooting NOTE: Amp Draw & Accessories connected to 24VDC COM MON HY-5A TERMINALS FREE EXIT HY-5A INSIDE LOOP STOP OPEN CLOSE OPEN P ARTIAL HY-5A OPEN OUTSIDE LOOP...
Page 85 All manuals and user guides at all-guides.com Overview of the Smart DC Controller Terminal Input Name Revision C Smart DC Controller...
Page 86 All manuals and user guides at all-guides.com Overview of the Smart DC Controller Installing Standard 11-Pin Box Type Vehicle Detectors Sensitivity dial adjustment Status LED Standoff Supports Loop wire (Inset into the connections holes in the Control Box.) Front View Rear View SlideSmart Installation and Reference Manual Revision C...
Page 87 All manuals and user guides at all-guides.com Overview of the Smart DC Controller Installing Vehicle Detectors and Loops Be careful to align the six detector pins into the socket correctly Revision C Smart DC Controller...
Page 88 All manuals and user guides at all-guides.com Overview of the Smart DC Controller Installer Menu Setting Options (Bold - Default) Display Meaning 1 = Enable reverse to open 1 = Enable reverse to open 1 = Standard ( Vehicle Detector Configuration and Quick Close Mode Selection SlideSmart Installation and Reference Manual Revision C...
Page 89 All manuals and user guides at all-guides.com Overview of the Smart DC Controller Installing Photoelectric Sensors For Secondary Entrapment Protection Only five times more power Installing Vehicle Detectors and Loops Revision C Smart DC Controller...
Page 90 All manuals and user guides at all-guides.com Overview of the Smart DC Controller PIN 2 PIN 1 24VAC or 24VDC Connect detector to match its voltage rating Inside Outside Free Exit Obstruc on Obstruc on Center Loop Detector Loop Detector Loop Detector Loop Detector The center loop serves no...
Page 91 All manuals and user guides at all-guides.com Connecting Accessory Devices COMMON HY-5A TERMINALS FREE EXIT Mul -colored LED Access controls indicates power and gate HY-5A status. (Ex. Card reader, keypad) HY-5A RS232 INSIDE LOOP STOP RS485 OPEN ethernet CLOSE OPEN P ARTIAL Photo eye N.O.
Page 92 All manuals and user guides at all-guides.com Connecting Accessory Devices OPEN STOP OPEN CLOSE CLOSE OPEN P ARTIAL OPEN CLOSE STOP EXIT LOOP BLOCK EXIT IN OBS LOOP OUT OBS Push Bu on Sta on LOOP CENTER LOOP EDGE + 24 V EMERG OPEN SHOW...
Page 93 All manuals and user guides at all-guides.com Connecting Accessory Devices Name Description Note: Revision C Smart DC Controller 4-11...
Page 94 All manuals and user guides at all-guides.com Connecting Accessory Devices Name Description Note: 4-12 SlideSmart Installation and Reference Manual Revision C...
Page 95 All manuals and user guides at all-guides.com Power Requirements Chapter 5 + 24 V EMERG OPEN SHOW LEDs USB Port Connection for Master/Slave pair AC Power - Dual Operators 14 gauge wire 12 gauge wire 10 gauge wire Revision C Bi-parting Gate Systems...
Page 96 All manuals and user guides at all-guides.com Master and Slave Wiring Connections Master Slave EXIT EXIT LOOP LOOP BLOCK BLOCK EXIT EXIT IN OBS IN OBS LOOP LOOP OUT OBS OUT OBS LOOP LOOP CENTER CENTER LOOP LOOP EDGE EDGE + 24 V + 24 V EMERG...
Page 97 All manuals and user guides at all-guides.com Master and Slave Menu Setup HYSECURITY GATE CLOSED OPEN CLOSE STOP MENU RESET PREV NEXT SELECT CT 0 (OFF) CLOSE TIMER OPEN CLOSE STOP MENU RESET PREV NEXT SELECT Note:For proper operation, you must set the other gate operator as SLAVE.
Page 98 All manuals and user guides at all-guides.com Master and Slave Menu Setup SlideSmart Installation and Reference Manual Revision C...
Page 99 All manuals and user guides at all-guides.com Connecting a Radio Receiver for Remote Open Chapter 6 EDGE + 24 V EMERG OPEN SHOW LEDs Shows connec ons for Remote Open and Gate Edge (dashed line). Power Two Channel Radio Receiver Note:This terminal is the same as the input terminal labeled RADIO OPEN along the left edge of the Smart DC Controller.
Page 100 All manuals and user guides at all-guides.com Installing a MagLock or Solenoid Lock Overview of the Smart DC Controller SlideSmart Installation and Reference Manual Revision C...
Page 101 All manuals and user guides at all-guides.com Installing a MagLock or Solenoid Lock A ach the power wire from the lock to the appropriate power spade. STOP OPEN CLOSE OPEN P ARTIAL OPEN CLOSE Note:Connect to NO on USER 1 EXIT LOOP RELAY if installing a Solenoid lock.
Page 102 All manuals and user guides at all-guides.com Installing a MagLock or Solenoid Lock A ach the power lead from the lock to the 24VAC power spade. STOP OPEN CLOSE OPEN P ARTIAL OPEN CLOSE EXIT Note:Connect to NO on USER 1 LOOP BLOCK RELAY if installing a Solenoid lock.
Page 103 All manuals and user guides at all-guides.com Installing a MagLock or Solenoid Lock HYSECURITY GATE CLOSED OPEN CLOSE STOP MENU RESET PREV NEXT SELECT CT 0 (OFF) CLOSE TIMER OPEN CLOSE STOP MENU RESET NEXT SELECT PREV LL 0 (OFF)
Page 104 All manuals and user guides at all-guides.com Installing Vehicle Detectors and Loops Loop Configurations: Rules to Follow for Security Gate Applications: Twist Like This Twist lead-in at least 10 turns per foot Not Like This Like This SlideSmart Installation and Reference Manual Revision C...
Page 105 All manuals and user guides at all-guides.com Installing Vehicle Detectors and Loops Detector Logic Loop Diagnostics Revision C Reference...
Page 106 All manuals and user guides at all-guides.com Installing Vehicle Detectors and Loops PUBLIC SIDE This layout illustrates a bi-direc onal traﬃc system with ACCESS CONTROL DEVICE ENTER EXIT controlled access entry (card (Card reader, etc.) reader, radio control, etc.) and a free exit gate.
Page 107 All manuals and user guides at all-guides.com Installing Photoelectric Sensors For Secondary Entrapment Protection Only Public Side Photo eye Secure Side Photo eyes Photo eye Revision C Reference...
Page 108 All manuals and user guides at all-guides.com Installing Photoelectric Sensors For Secondary Entrapment Protection Only Photo Eye Open OPEN Direction Photo Eye Close CLOSE Direction EXIT LOOP BLOCK EXIT IN OBS LOOP OUT OBS LOOP CENTER LOOP EDGE Photo Eye COM terminal Photo Eye +24 VDC + 24 V...
Page 109 All manuals and user guides at all-guides.com Installing Photoelectric Sensors For Secondary Entrapment Protection Only Alignment: Table 3-1 "Smart DC Controller - User Menu Functions" on page 3-12 Notes about retro-reflective systems: Revision C Reference 6-11...
Page 110 All manuals and user guides at all-guides.com Using Photoelectric Sensors Instead of Vehicle Loops Installing Photoelectric Sensors For Secondary Entrapment Protection Only OPEN CLOSE EXIT Photo Eye connections for LOOP Free Exit detectors BLOCK EXIT Photo Eye connections for IN OBS Inside Obstruction detectors LOOP OUT OBS...
Page 111 All manuals and user guides at all-guides.com Using Photoelectric Sensors Instead of Vehicle Loops PUBLIC SIDE This layout illustrates a bi-direc onal traﬃc system with ACCESS CONTROL DEVICE ENTER EXIT controlled access entry (card (Card reader, etc.) reader, radio control, etc.) and photo eyes used as vehicle Placement of detectors.
Page 112 All manuals and user guides at all-guides.com Installing Gate Edge Sensors Photo Wall or fence edge Upright post edge Gate edge Photo eye 6-14 SlideSmart Installation and Reference Manual Revision C...
Page 113 All manuals and user guides at all-guides.com Installing Gate Edge Sensors Edge Sensor STOP OPEN CLOSE OPEN P ARTIAL OPEN CLOSE EXIT LOOP BLOCK EXIT IN OBS LOOP OUT OBS LOOP CENTER LOOP Edge Sensor EDGE + 24 V EMERG OPEN SHOW LEDs...
Page 114 All manuals and user guides at all-guides.com Smart DC Controller Troubleshooting Smart Touch Analyze and Retrieve Tool 6-16 SlideSmart Installation and Reference Manual Revision C...
Page 115 All manuals and user guides at all-guides.com Smart DC Controller Troubleshooting Revision C Reference 6-17...
Page 116 All manuals and user guides at all-guides.com Smart DC Controller Troubleshooting 6-18 SlideSmart Installation and Reference Manual Revision C...
Page 117 All manuals and user guides at all-guides.com Smart DC Controller Troubleshooting Revision C Reference 6-19...
Page 118 All manuals and user guides at all-guides.com Smart DC Controller Troubleshooting 6-20 SlideSmart Installation and Reference Manual Revision C...
Page 119 All manuals and user guides at all-guides.com Smart DC Controller Troubleshooting Revision C Reference 6-21...
Page 120 All manuals and user guides at all-guides.com Smart DC Controller Troubleshooting 6-22 SlideSmart Installation and Reference Manual Revision C...
Page 121 All manuals and user guides at all-guides.com Smart DC Controller Troubleshooting Alert or Error LCD Description Advisory Resolution Revision C Reference 6-23...
Page 122 All manuals and user guides at all-guides.com Smart DC Controller Troubleshooting Installer Setting Options Menu LCD Description Bold = Factory Settings 0 = Run mode 0 = Run mode 0 = Run mode 0 = Run mode 6-24 SlideSmart Installation and Reference Manual Revision C...
Page 123 All manuals and user guides at all-guides.com Smart DC Controller Troubleshooting Revision C Reference 6-25...
Page 124 All manuals and user guides at all-guides.com Smart DC Controller Troubleshooting 6-26 SlideSmart Installation and Reference Manual Revision C...
Page 125 All manuals and user guides at all-guides.com General Maintenance RS-232 Connect to RS-232 with a HySecurity adapter. If using a USB cable, connect it to the USB port. USB PORT RS-485 COMMUNICATION Technical Support S.T.A.R.T. software for Smart Touch and Smart DC...
Page 126 All manuals and user guides at all-guides.com General Maintenance Installing START Software, continued Setting User Account Controls In Windows 7: In Vista: Table 6-1 "Smart DC Controller - Troubleshooting" on page 6-17 6-28 SlideSmart Installation and Reference Manual Revision C...
Page 127 The software on the SDC board is constantly being enhanced with new features that create an easier install and improve the on board diagnostic tools. Be sure to check the HySecurity website for the latest version of software before heading out for field maintenance.
Page 128 All manuals and user guides at all-guides.com General Maintenance Slide the motor bracket. 1/16" to 1/8" To adjust the tension or replace the belt, loosen 4 nuts and slide the motor bracket. Retighten the fasteners when the adjustments are complete. 6-30 SlideSmart Installation and Reference Manual Revision C...
Page 129 All manuals and user guides at all-guides.com General Maintenance Setting AC Power Loss Gate Function Disconnect wires Cut away view of chassis Access window Revision C Reference 6-31...
Page 130 All manuals and user guides at all-guides.com General Maintenance Slide cover Four Phillips-head off the screws secure the wire ties control box control box to the to access chassis. the screws. battery Battery access window Control box 6-32 SlideSmart Installation and Reference Manual Revision C...
Page 131 All manuals and user guides at all-guides.com General Maintenance Lithium ba ery Revision C Reference 6-33...
Page 132 All manuals and user guides at all-guides.com General Maintenance This page intentionally blank. 6-34 SlideSmart Installation and Reference Manual Revision C...
Page 133 All manuals and user guides at all-guides.com Appendix A Revision C...
Page 134 All manuals and user guides at all-guides.com 3.25 2.50 Chain to Gate Gate 5.50 2.66 Chain, #40 Roller 10.50 21.0 Conduit Min. pad size Area 7 x 12 1.63 Provisions for qty 4 ½ - 13 X 3 ½ Concrete Anchors (½-inch slot in either direction) ( 4.31 ) 10.38...
Page 135 All manuals and user guides at all-guides.com Gate 3.25 2.50 Chain Chain to Gate 20.0 Route 6 AWG ground wire through conduit & attach to ground lug provided. 17.7 20.7 Earth Ground High Voltage Master/Slave Wires (Optional) Vehicle Loop Consult local Control Wires codes for proper depth...
Page 136 All manuals and user guides at all-guides.com SLIDESMART DC: BASE RISER MOUNTED 3.25 2.50 Chain Gate Chain to Gate 5.50 2.66 10.50 12.00 17.50 Conduit Area 7 x 7 Conduit Area If no batteries in Base Riser - Conduit Area is 7 x 12 inches.
Page 137 Gate Chain Chain to Gate 3.35 2.66 8.35 10.50 U-bolts provided for 4” OD pipe (slot allows for 3.5" - 4.5" OD pipe). For best results, HySecurity recommends welding plate to posts. 5.00 4.00 .656 5.50 3.81 10.38 18.0 3.25 2.50...
Page 138 Chain Chain to Gate 3.35 2.66 8.35 10.50 U-bolts provided for 4” OD pipe (slot allows for 3.5" - 4.5" OD pipe). For best results, HySecurity recommends welding plate to posts. 5.00 4.00 .656 3.25 5.50 2.50 Chain to Gate 3.81...
Page 139 All manuals and user guides at all-guides.com SLIDESMART DC: REAR MOUNTED INSTALLATION DETAIL B 4.75 7.75 3.25 NOTE: DRAWING IS NOT TO SCALE. DIMENSIONS SHOWN IN INCHES UNLESS STATED OTHERWISE. DRAWN DATE DOCUMENT TITLE DOCUMENT NUMBER: 11/10/09 D0335 SLIDESMART INSTALLATION CHECKED DATE SPECIFICATION...
Page 140 All manuals and user guides at all-guides.com SlideSmart Installation and Reference Manual Revision C...
Page 141 All manuals and user guides at all-guides.com Board, Smart DC Controller Control Box Buzzer Reset Switch, Internal Switch, On/Off Detector, Vehicle Circuit Breaker Switch, On/Off Board, Power Supply Cover, 2-Piece Belt, Drive Pulley, Motor Pulley, Gearbox Gearbox Motor, Electric Transformer Brush Kit Solar Control Box Sprocket...
Page 142 MX002094 Battery Kit, 50AH, Replacement MX002013 Battery Kit, 8AH, Replacement MX002008 Belt, Drive, SlideSmart DC 10F MX002107 SlideSmart 10F Belt, Drive, SlideSmart DC 15 MX002106 SlideSmart 15 Board, Power Supply, 115/230VAC MX001766 AC only Board, Smart DC Controller MX001457 Brush Kit, 24VDC Motor...
Page 143 All manuals and user guides at all-guides.com Warranty. Exclusion of Other Warranties. 1a. Five Year / Seven Year Warranty Items (Registered Gate Operators Purchased from Authorized Distributors) Buyer's Exclusive Remedies for Any Nonconformity. 1b. One Year Warranty Items (Operators Not Purchased from an Authorized Distributor or Registered within 60 Days) Exclusion of Consequential and Incidental Damages.
Page 144 Additionally, HySecurity Gate Inc. makes no representations or warranty with respect to this manual. We also reserve the right to make changes in the products described without notice and without any obligation to notify any persons of any such revision or change.
