GENERAL
Installation of the unit must be accomplished by qualified
installation personnel working to all applicable local and
national codes. Improper installation of product could cause
injury or damage.
This unit is built to comply with applicable standards for
manufacturers. Included among those approval agencies
are: UL, NSF, ASME/Ntl.Bd., CSA, ETL, CE, and others.
Many local codes exist, and it is the responsibility of the
owner/installer to comply with these codes.
RECEIVING INSPECTION
Before uncrating, visually inspect the unit for evidence of
damage during shipping.
If damage is noticed, do not unpack the unit, follow
shipping damage instructions.
SHIPPING DAMAGE
INSTRUCTIONS
If shipping damage to the unit is discovered or suspected,
observe the following guidelines in preparing a shipping
damage claim.
1. Write down a description of the damage or the reason
for suspecting damage as soon as it is discovered. This
will help in filling out the claim forms later. If possible,
take a polaroid picture.
2. As soon as damage is discovered or suspected, notify the
carrier that delivered the shipment.
3. Arrange for the carrier's representative to examine the
damage.
4. Fill out all carrier claims forms and have the examining
carrier sign and date each form.
APPROXIMATE WEIGHTS
Model # Unit
shipping box
MKDT12T 168 lbs.
MKDT20T 186 lbs.
UNCRATING
Caution:
Straps under tension and will snap when cut.
Carton may contain staples and Skid contains Nails.
Use proper safety equipment and precautions.
Unit is heavy use adequate help or lifting equipment as
needed.
1. Carefully cut any straps from container.
2. Lift off carton.
3. Inspect for hidden damage. If found refer to "SHIPPING
DAMAGE INSTRUCTIONS".

INSTALLATION

Unit with
186 lbs.
206 lbs.
4. Cut strap holding unit.
5. Remove manual from kettle pot. Write down the model #
and serial # of the unit onto the front of this manual.
6. Lift kettle off skid and move kettle to its installation
location.
7. Discard packaging material according to local and or
state requirements.
VENTILATION
Operation of these units can produce significant levels of steam and
condensate, it is recommended they be installed under a
ventilation hood in a room which has provisions for adequate
make up air. Further information can be obtained by
referring to the U.S.A. National Fire Protection Associations
NFPA96 regulations. These standards have also been
adopted by the National Building Code in Canada.
POSITIONING
The first installation step is to refer to the Specification
Sheets or Specification Drawings for detailed clearance
requirements and mounting hole locations of the kettle.
1. Position on a firm, level surface, and bolt the four flange
feet in place.
2. Install service requirements as required (see below).
3. Once the kettle is secure and service utilities installed,
screw tilt handle into the threaded hole provided at the right
side of kettle.

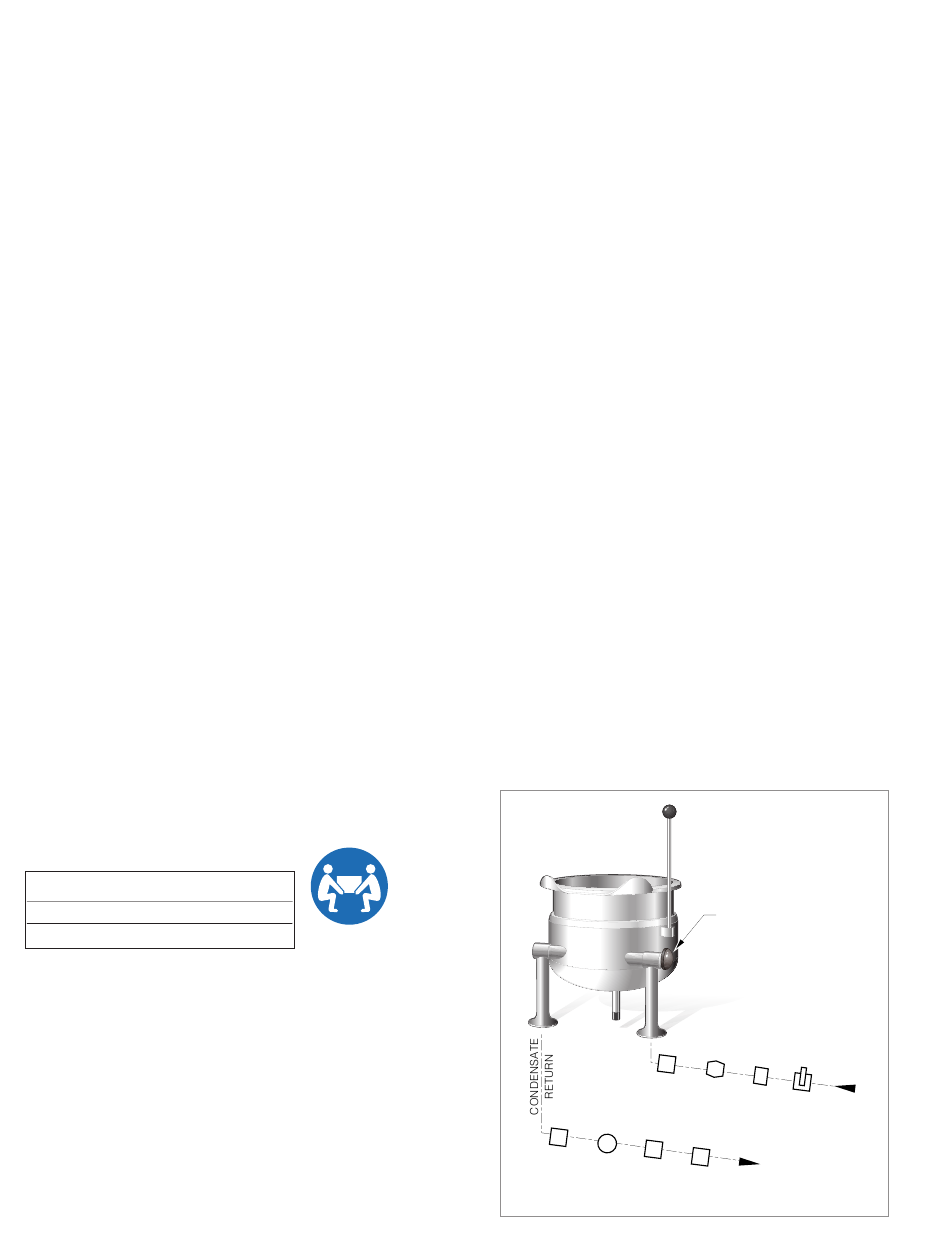

RECOMMENDED PIPING SCHEMATICS
(all service connections shown supplied by others)
STRAINER
STRAINER
STEAM
CHECK
TRAP
VALVE
4.
MANUAL
STEAM
VALVE
STEAM
IN
PRESSURE
UNION
REDUCING
BALL
VALVE
VALVE
TO DRAIN
OR BOILER
CONDENSATE
UNION
LINE
