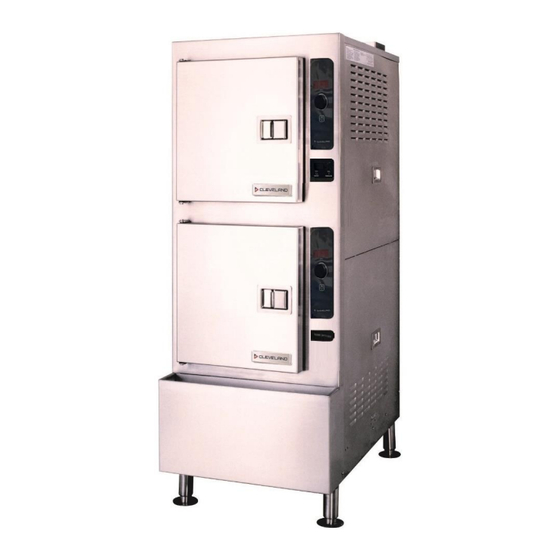

Cleveland 24CEA10 Operation Installation Maintenance Manual

Electric convection steamer with easy timer
Hide thumbs Also See for 24CEA10:

Advertisement

Quick Links

Download this manual
Visit www.clevelandrange.com to locate a
service or sales representative in your area.
SteamCraft
Electric Convection Steamer with Easy Timer
Operation, Installation & Maintenance Manual
This manual is updated as new information and models are released. Visit our website for the latest manual.
MODEL:
24CEA10.2
!
Read the manual thoroughly.
Improper installation, operation or
maintenance can cause property
damage, injury, or death.
Cleveland
For your future reference.
Model #
Serial #
Part # KE004032-2 Rev F
February 2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the 24CEA10 and is the answer not in the manual?

Questions and answers

Related Manuals for Cleveland 24CEA10

Summary of Contents for Cleveland 24CEA10

  • Page 1 Operation, Installation & Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. MODEL: For your future reference. 24CEA10.2 Model # Serial # Read the manual thoroughly. Improper installation, operation or...
  • Page 2 Cleveland Range, LLC has aux biens résultant de l'utilisation, de la fallecimiento, lesiones, daños al equipo o made every effort to provide accurate mauvaise utilisation ou du manquement daños a la propiedad resultantes de la...
  • Page 3 FOR YOUR SAFETY / POUR VOTRE SÉCURITÉ / PARA SU SEGURIDAD FOR YOUR SAFETY POUR VOTRE SÉCURITÉ PARA SU SEGURIDAD Do not store or use gasoline or any Ne pas entreposer ou utiliser No guarde ni use gasolina o other flammable liquids and vapours d'essence ou d'autres liquides ou cualesquiera otros líquidos o in the vicinity of this or any other...
  • Page 4 WARNING / AVERTISSEMENT / ADVERTENCIA Inspect unit daily for proper Heavy. / Lourd. / Pesado. operation. / Inspecter le bloc quotidiennement pour garantir le fonctionnement normal. / Team or mechanical lift. / Levage en équipe ou Inspeccione diariamente el mécanique. / Levantamiento en equipo o funcionamiento correcto de la mecánico.

  • Page 5: Table Of Contents

    OPERATION, INSTALLATION & MAINTENANCE MANUAL STEAMCRAFT MODEL 24CEA10.2 Table of Contents CHAPTER 1 GENERAL INFORMATION ........................5 Laws, Codes, and Regulations ........................5 Operational Safety ............................5 Inspection for Shipping Damage ........................5 CHAPTER 2 PRODUCT INFORMATION ......................... 6 Product Information ............................6 Model Numbers and Serial Numbers ......................

  • Page 6: Chapter 1 General Information

    This appliance must be level both front-to-back and side-to-side in all installations. NEVER operate this appliance out of level. If this appliance is suspected to be out of level, shut it down at once and call your qualified Cleveland Range authorized service agency immediately.

  • Page 7: Chapter 2 Product Information

    For further information, contact your Cleveland Range sales representative or Cleveland Range. B. Model Numbers and Serial Numbers 1. Cleveland Range, LLC assigns two product identification numbers to each appliance: a model number and a serial number. 2. Please provide the model number and serial number when you contact Cleveland Range or a qualified Cleveland Range authorized service representative.

  • Page 8: Product Views

    D. Product Views Figure 2-1 24CEA10.2 PRODUCT VIEWS Plan, Front, and Side Views Dimensions in Inches...
  • Page 9 Figure 2-2 24CEA10.2 Utility Locations...

  • Page 10: Chapter 3 Installation Procedure

    This appliance must be level both front-to-back and side-to-side in all installations. NEVER operate this appliance out of level. If this appliance is suspected to be out of level, shut it down at once and call your qualified Cleveland Range authorized service agency immediately.

  • Page 11: Slide Racks (Pan Racks)

    1. Water Supply Requirements Slide Rack Installation ⚠ CAUTION Using water not within the limits specified in this manual could void or reduce Cleveland Range’s warranty coverage of the steamer. a) Water Quality As with any steam generating equipment, poor water quality degrades the performance of the steamer.
  • Page 12 Figure 3-2 Cleveland Range Single Water Supply Arrangement Figure 3-3 Cleveland Range Separate Water Supply Arrangement * “Conditioned” indicates water that has been filtered or treated by a Cleveland Range approved method to meet or exceed the water quality standards in the Warranty.

  • Page 13: Electric Power Supply

    This unit is not suitable for connection to a GFCI (Ground fault Circuit Interrupter). • Cleveland Range recommends that the unit be connected to the electrical system, using a flexible conduit system compliant with the applicable codes. 3. A main disconnect switch and a separate fuse or breaker should be installed near the unit as shown in Figure 3-8.
  • Page 14 ⚠ DANGER DEATH, INJURY, EQUIPMENT and PROPERTY DAMAGE will result from improper installation of drain outlet lines. Install free air vented drain lines as described in this manual NOTICE: Furnishing and installing drain lines and drainpipe is the responsibility of the Installer/Owner. The following restrictions and requirements are critical to the safety of personnel and equipment, and must not be violated under any circumstances: 1.

  • Page 15: Installation Checklist

    G. Installation Checklist Installation Checklist TASK REFERENCE COMPLETED (Chapter) (Initial and Date) Preparation Check Operating Location Clearances Chapter 2 Section D Test Supply Water Quality Chapter 3 Section D Water Supply Requirements Met Chapter 3 Section D Electric Power Requirements Met Chapter 3 Section E Installation Check Level Front-to-Back and Side-to-Side...

  • Page 16: Chapter 4 Cooking With The Steamcraft

    If the steamer door is stuck shut: • Turn OFF the steamer. • Call a qualified Cleveland Range authorized service technician. • Wait for the steamer to cool before servicing. ⚠ CAUTION Some food drips juices. Use a solid catch pan under perforated pans when cooking food that drips juices.
  • Page 17 • The steamer compartment of the steamer is equipped with an automatic door interlock switch that turns off the heating elements and shuts off the convection fan and condenser when the door to the compartment is opened. ⚠ WARNING BURN and SCALD HAZARD Even though the heat shuts off as soon as the door is opened, it may take up to a minute for production of steam to end and residual steam in the system to clear from the cooking compartment.

  • Page 18: Chapter 5 Easy Timer Operating Instructions

    CHAPTER 5 EASY TIMER OPERATING INSTRUCTIONS DIGITAL DISPLAY CONTROL KNOB Enabled with TIMED mode TIMER START/STOP BUTTON in TIMED mode TIMED/MANUAL SWITCH BUTTON (Press for 5 sec) ON-OFF SWITCH ⚠ CAUTION Press switch and button with fingertips only. INJURY and EQUIPMENT DAMAGE can result from pressing switches and buttons with anything else.

  • Page 19: Main External Power Switch

    Main External Power Switch Usually, the Main External Power Switch is left ON. To turn ON the Main External Power Switch: • Turn the ON/OFF switch to the OFF position. • Turn ON the Main External Power Switch. See Figure 5-1. B.

  • Page 20: Preheat Steamer

    6. Manual Mode (Continuous Steaming) a) Press and hold “TIMER-START STOP” button for 5 seconds until switches to Manual mode. b) “MAN” will appear on the digital display when activated and control knob disabled. c) NOTE: steamer will go into “Standby” mode if compartment isn’t opened for 60 minutes. 7.
  • Page 21 2. A buzzer will sound continuously. 3. The heater will shut OFF. 4. The steamer must be reset before cooking can continue. To reset the high limit: 1. Turn OFF power to the steamer with the ON/OFF switch. 2. Wait 15 minutes for the steamer to cool. 3.

  • Page 22: Chapter 6 Shutdown And Cleaning Procedure

    CHAPTER 6 SHUTDOWN AND CLEANING PROCEDURE A. Steam Generator Blowdown 1. Power Off (Automatic Blowdown) Blowdown occurs automatically when each steamer compartment is turned OFF at its ON/OFF switch. During blowdown, the steam generator drain valve is rinsed with fresh water, and the boiler is drained. Blowdown at frequent intervals helps decrease mineral buildup in the steam generators and reduces the frequency of descaling and other maintenance.
  • Page 23 ⚠ DANGER HIGH HEAT HAZARD Wait for this appliance to cool before cleaning. Attempting to clean a hot appliance can cause DEATH, INJURY, BURNS, and SCALDS. Shutdown and Cleaning Procedure for the End of Each Shift: 1. Open the cooking compartment door and allow the appliance to cool. 2.

  • Page 24: Chapter 7 Operating Tests And Final Checkout Procedures

    CHAPTER 7 OPERATING TESTS AND FINAL CHECKOUT PROCEDURES A. Startup Procedure with the Appliance De-Energized 1. Start with or the Main External Power Switch OFF. 2. Check the fuses or circuit breakers for proper size. 3. Make sure the water supply line valves are open. 4.

  • Page 25: Operating Test Procedures

    7. Stop the blowdown cycle before it is complete by turning the ON/OFF switch ON. a) The operating controls energize. b) The digital display lights. c) Blowdown stops. d) The steam generator fills. 8. Start a 3-minute blowdown cycle by turning the ON/OFF switch OFF. 9.

  • Page 26: Function Test For The Steam Shut Off Switch

    3. Stand to the hinge side and back from the upper door and carefully open the upper door. 4. Steaming stops within a minute. 5. If steaming does not stop within a minute: Shut down the appliance and call your qualified Cleveland Range authorized service representative.

  • Page 27: Chapter 8 Preventative Maintenance

    • Increase the frequency of maintenance as needed depending on use and water quality. • Contact your qualified Cleveland Range authorized service agency or Cleveland Range for more information about maintenance scheduling, products, and services. B. Maintenance and Service Records 1.
  • Page 28 ⚠ DANGER The liquid solution in Cleveland Range Descaler Solution Part No. 106174 or 1061741 can be harmful if not handled properly. Follow these basic safety rules for handling and using this product. Instructions and warnings on container labels supersede all other warnings and instructions.
  • Page 29 NOTICES regarding the Manual Descaling Procedure • Cleveland Range recommends DISSOLVE® Descaler Solution, Part No. 106174. • Use no other system of steamer descaling. • Appropriate warnings and safe handling procedures must be provided to handlers and users. • Instructions and warnings on Dissolve® containers and Material Safety Data Sheets supersede and replace instructions and warnings in this manual.

  • Page 30: Yearly Maintenance

    16) After the timer counts down, turn ON/OFF switch to OFF to start Automatic Blowdown. 17) Descaling is complete, resume normal startup, cooking, and shutdown procedure. F. Yearly Maintenance 1. Clean the Water Line Strainer • See Figure 8-2. • Clean the water line strainers at least once a year.

  • Page 31: Chapter 9 Troubleshooting Gudie

    “Remedy / Reference” (right column) lists fixes for problems from easiest to hardest. • “Notes” in “Remedy / Reference column are at end of the Troubleshooting Guide. ATTEMPTING TO REPAIR OR CORRECT PROBLEMS REQUIRING A QUALIFIED CLEVELAND RANGE AUTHORIZED SERVICE REPRESENTATIVE VOIDS THE WARRANTY Trouble Shooting Guide...
  • Page 32 Reduced steam flow into Steam generator scale buildup. Descale steam generator with cooking compartment. Cleveland Range approved descaler. Inoperative or improperly adjusted See Note 1. controls. Water leaking from Broken or loose plumbing inside Turn OFF electricity at main external bottom of cabinet.
  • Page 33 Clean out condenser water supply and/or nozzle is clogged. strainer and/or nozzle. Steam generator scale buildup. Descale steam generator with Cleveland Range approved descaler. Inoperative or improperly adjusted See Note 1. controls. Food is being cooked in covered Remove covering.
  • Page 34 NOTES 1. If the problem is inside the appliance, call a qualified Cleveland Range authorized service representative or Cleveland Range. (Please have the model number and serial number ready when calling.) Cleveland Range will not pay for warranty repairs by unauthorized maintenance and repair centers.
  • Page 35 Cleveland Cleveland Range, LLC 760 Beta Drive, Unit D Mayfield Village, Ohio 44143 216.481.4900 800.338.2204 Every new piece of Welbilt Foodservice equipment comes with KitchenCare® and you choose the level of service that meets your operational needs from one restaurant to multiple locations StarCare –...
