OPERATOR'S MANUAL
MANUEL D'UTILISATION
MANUAL DEL OPERADOR

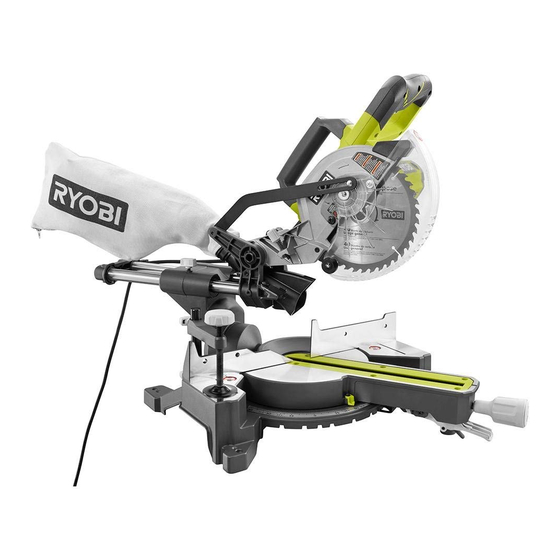

7-1/4 in. SLIDING COMPOUND
MITER SAW WITH LED
SCIE À ONGLETS COMBINÉS
COULISSANTE AVEC DEL
DE 184 mm (7-1/4 po)
SIERRA INGLETEADORA
COMPUESTA DESLIZANTE CON
DIODO DE 184 mm (7-1/4 pulg.)
TSS701

TABLE OF CONTENTS

****************
 General Safety Rules .......................2-3
 Specific Safety Rules ......................3-4
 Symbols ..............................................5
 Electrical .............................................6
 Glossary of Terms ............................... 7
 Features .........................................8-10
 Tools Needed ................................... 11
 Loose Parts List ................................ 11
 Assembly .....................................12-18
 Operation .....................................19-29
 Adjustments ..................................... 30
 Maintenance ..................................... 31
 Parts Ordering / Service ......Back page
To reduce the
risk of injury, the user must read and
understand the operator's manual
before using this product.
SAVE THIS MANUAL FOR
FUTURE REFERENCE
TABLE DES MATIÈRES
****************
 Symboles ............................................5
 Glossaire .............................................7
 Caractéristiques ............................8-10
 Outils nécessaires ........................... 11
 Pièces détachées ............................. 11
 Assemblage .................................12-18
 Utilisation .....................................19-29
 Réglages ...........................................30
 Entretien ...........................................31
 Commande de pièces/
réparation ..........................páge arrière
AVERTISSEMENT :
réduire les risques de blessures,
l'utilisateur doit lire et veiller à bien
comprendre le manuel d'utilisation avant
d'employer ce produit.
CONSERVER CE MANUEL
POUR FUTURE RÉFÉRENCE
ÍNDICE DE CONTENIDO
****************
 Símbolos ............................................5
 Aspectos eléctricos ............................ 6
 Glosario de términos .......................... 7
 Características ..............................8-10
 Herramientas necesarias .................. 11
 Lista de piezas sueltas ..................... 11
 Armado ........................................12-18
 Funcionamiento ...........................19-29
 Ajustes ..............................................30
 Mantenimiento .................................. 31
 Pedidos de piezas/
servicio .......................... pág. posterior
ADVERTENCIA:
Pour
el riesgo de lesiones, el usuario debe leer
y comprender el manual del operador
antes de usar este producto.
GUARDE ESTE MANUAL
PARA FUTURAS CONSULTAS
Para reducir

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSS701 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ryobi TSS701

  • Page 1: Table Of Contents

    MITER SAW WITH LED SCIE À ONGLETS COMBINÉS COULISSANTE AVEC DEL DE 184 mm (7-1/4 po) SIERRA INGLETEADORA COMPUESTA DESLIZANTE CON DIODO DE 184 mm (7-1/4 pulg.) TSS701 TABLE OF CONTENTS TABLE DES MATIÈRES ÍNDICE DE CONTENIDO **************** **************** **************** ...
  • Page 2: General Safety Rules

    GENERAL SAFETY RULES  SECURE WORK. Use clamps or a vise to hold work when WARNING: practical, it is safer than using your hand and frees both hands to operate the tool. Read all safety warnings and all instructions. Failure to  DO NOT OVERREACH.
  • Page 3: Specific Safety Rules

    GENERAL SAFETY RULES  INSPECT TOOL CORDS PERIODICALLY. If damaged,  BEFORE MAKING A CUT, BE SURE ALL ADJUSTMENTS have repaired by a qualified service technician at an ARE SECURE. authorized service facility. Repair or replace a damaged  BE SURE BLADE PATH IS FREE OF NAILS. Inspect for or worn cord immediately.
  • Page 4 SPECIFIC SAFETY RULES  NEVER reach to pick up a workpiece, a piece of scrap,  ALWAYS TURN OFF THE SAW before disconnecting it or anything else that is in or near the cutting path of the to avoid accidental starting when reconnecting to power blade.
  • Page 5: Symbols

    SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates a hazardous situation, which, if not avoided, will result in death or DANGER: serious injury. Indicates a hazardous situation, which, if not avoided, could result in death or WARNING: serious injury.
  • Page 6: Electrical

    ELECTRICAL DOUBLE INSULATION When working outdoors with a product, use an extension cord that is designed for outside use. This type of cord is Double insulation is a concept in safety in electric power tools, designated with “WA” or “W” on the cord’s jacket. which eliminates the need for the usual three-wire grounded power cord.
  • Page 7: Glossary Of Terms

    GLOSSARY OF TERMS Anti-Kickback Pawls (radial arm and table saws) Pilot Hole (drill presses and scroll saws) A device which, when properly installed and maintained, A small hole drilled in a workpiece that serves as a guide is designed to stop the workpiece from being kicked back for drilling large holes accurately or for insertion of a scroll toward the front of the saw during a ripping operation.
  • Page 8: Features

    FEATURES PRODUCT SPECIFICATIONS Cutting Capacity with Miter at 45°/Bevel 0°: Arbor Hole ............... 5/8 in. Maximum nominal lumber sizes ..... 2 in. x 6 in. Blade Diameter .............7-1/4 in. Cutting Capacity with Miter at 0°/Bevel 45°: No Load Speed ........5,350 r/min. (RPM) Maximum nominal lumber sizes ....
  • Page 9 FEATURES KNOW YOUR COMPOUND MITER SAW CARRYING See Figure 1. SWITCH HANDLE The safe use of this product requires an understanding of the information on the tool and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.
  • Page 10 FEATURES ELECTRIC BRAKE SWITCH TRIGGER See Figure 4. An electric brake has been provided to quickly stop blade To prevent unauthorized use of the compound miter saw, rotation after the switch is released. disconnect it from the power supply and lock the switch in the LED LIGHTING SYSTEM off position.
  • Page 11: Tools Needed

    TOOLS NEEDED The following tools (not included) are needed for making adjustments or installing the blade: COMBINATION SQUARE SQUARE Fig. 5 LOOSE PARTS LIST The following items are included with the tool:  Dust Bag  Work Clamp  Blade Wrench ...
  • Page 12: Assembly

    ASSEMBLY UNPACKING WARNING: This product requires assembly.  Carefully lift saw from the carton by the carrying handle If any parts are damaged or missing do not operate this and the saw base, and place it on a level work surface. product until the parts are replaced.
  • Page 13 ASSEMBLY MOUNTING HOLES To unlock and raise the saw arm: See Figure 7.  Firmly grasp the “D” handle and apply downward pressure while at the same time pulling the lock pin out and away from the saw housing. WARNING: ...
  • Page 14 ASSEMBLY DUST BAG DUST See Figure 10. A dust bag is provided for use on this miter saw. It fits over the exhaust port on the back of the saw. NOTE: The exhaust port also accepts 1-1/4 in. vacuum hose. EXHAUST BLADE WRENCH PORT...
  • Page 15 ASSEMBLY TO INSTALL / REPLACE THE BLADE SPINDLE See Figures 12 - 13. LOCK BUTTON The blade is shipped installed on this miter saw model. Instructions have been included for reference when changing or replacing blades. WARNING: A 7-1/4 in. blade is the maximum blade capacity of the saw.
  • Page 16 ASSEMBLY  Tighten blade bolt securely.  Replace the lower blade guard and blade bolt cover.  Securely tighten the blade bolt cover screw.  Raise and lower the saw head and ensure that the lower blade guard operates properly. WARNING: Make sure the spindle lock button is not engaged before reconnecting saw into power source.
  • Page 17 ASSEMBLY  Release the detent release lever, and ensure the control arm is seated in the positive notch. BLADE  Tighten the miter lock knob to secure the miter table.  Loosen bevel lock knob and set saw arm at 0° bevel (blade set 90°...
  • Page 18 ASSEMBLY  The edge of the square and the saw blade should be parallel as shown in figure 16.  If the front or back edge of the saw blade angles away from the square as shown in figures 17 - 18, adjustments BLADE are needed.
  • Page 19: Operation

    Any slip can result in contact with the blade operations, but for fine joinery cuts or cutting plastic, use causing serious personal injury. one of the accessory blades available from the Ryobi dealer. WARNING: WARNING: Before starting any cutting operation, clamp or bolt the Do not try to cut narrow pieces using the sliding feature.
  • Page 20 OPERATION CROSS CUT WORK CLAMP Fig. 24 Fig. 25 TO MAKE NON-SLIDING CUTS MITER CUT WARNING: Securely tighten the slide lock knob when making any non-sliding cuts. Failure to tighten the knob could result in the saw head moving during the cutting operation. TO MITER CUT / CROSS CUT See Figures 25 - 26.
  • Page 21 OPERATION  Place the workpiece flat on the miter table with one edge  Once the saw arm has been set at the desired angle, securely against the fence. If the board is warped, place securely tighten the bevel lock knob. the convex side against the fence.
  • Page 22 OPERATION TO COMPOUND MITER CUT COMPOUND MITER CUT See Figures 28 - 29. A compound miter cut is a cut made using a miter angle and a bevel angle at the same time. This type of cut is used to make picture frames, cut molding, make boxes with sloping sides, and for certain roof framing cuts.
  • Page 23 OPERATION  Grasp the stock firmly with one hand and secure it against the fence. Use the optional work clamp or a C-clamp to secure the workpiece when possible.  Before turning on the saw, perform a dry run of the cutting operation just to make sure that no problems will occur when the cut is made.
  • Page 24 OPERATION  When cutting long pieces of lumber or molding, support NOTE: Check for interference between the auxiliary fence the opposite end of the stock with a roller stand or with and the lower blade guard. Correct any interference a work surface level with the saw table. See Figure 30. before proceeding.
  • Page 25 OPERATION CUTTING COMPOUND MITERS To aid in making the correct settings, the compound angle setting chart below has been provided. Since compound cuts are the most difficult to accurately obtain, trial cuts should be made in scrap material, and much thought and planning made, prior to making the required cut.
  • Page 26 OPERATION CUTTING CROWN MOLDING When cutting crown molding by this method, the bevel angle ° should be set at 33.85 . The miter angle should be set at The compound miter saw does an excellent job of cutting crown ° 31.6 either right or left, depending on the desired cut for the molding.
  • Page 27 OPERATION NESTING CROWN MOLDING AGAINST THE MITER FENCE See Figure 35 - 37. SPRING NOTE: This method of cut is for crown molding up to 3-3/8 in. CLAMP tall, when using an auxiliary fence (as described on Page 24). Do not attempt to cut molding that is larger than 3-3/8 in. tall.  Assemble and attach auxiliary fence as shown in figure 33.
  • Page 28 OPERATION VERTICALLY CUTTING BASE MOLDING AGAINST THE MITER FENCE See Figure 38.  Set the bevel angle at 0° and the miter angle at 45° to either the left or the right. (For making 90° corners.)  Place and secure the base molding vertically against the fence using a spring clamp and hold the base molding securely.
  • Page 29 OPERATION CUTTING WARPED MATERIAL See Figures 39 - 40. When cutting warped material, always make sure it is positioned on the miter table with the convex side against the fence as shown in figure 39. If the warped material is positioned the wrong way as shown in figure 40, it will pinch the blade near the completion of the cut.
  • Page 30: Adjustments

    ADJUSTMENTS POSITIVE STOP ADJUSTMENTS WARNING: See Figure 42. NOTE: These adjustments were made at the factory and Before performing any adjustment, make sure the tool normally do not require readjustment. is unplugged from the power supply. Failure to heed this To adjust: warning could result in serious personal injury.
  • Page 31: Maintenance

    MAINTENANCE LUBRICATION WARNING: All of the bearings in this tool are lubricated with a sufficient amount of high grade lubricant for the life of the unit under When servicing, use only identical replacement parts. Use normal operating conditions. Therefore, no further lubrication of any other part can create a hazard or cause product is required.
