Pro-Form 960 User Manual page 11

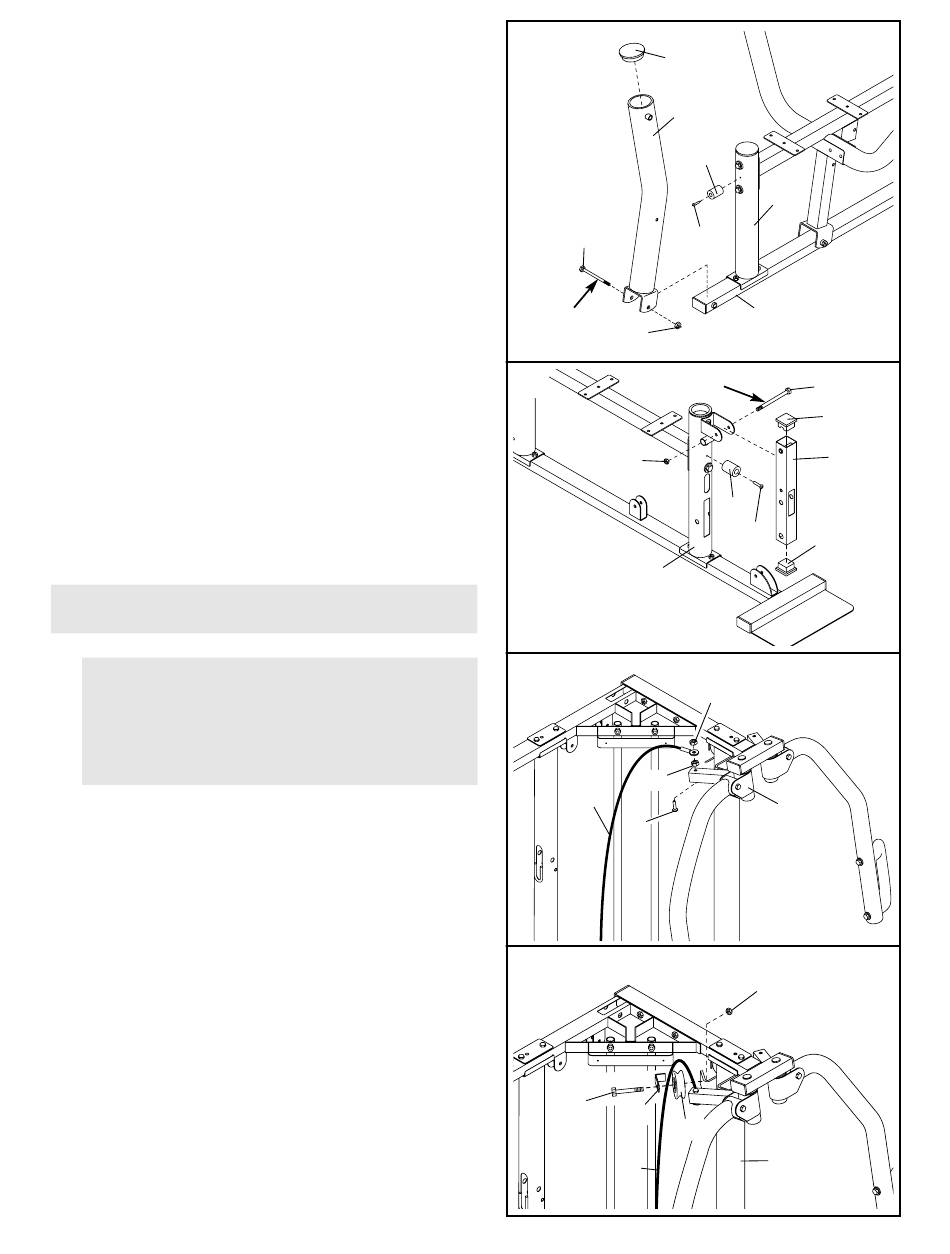

18. Attach a Bumper (40) to the Press Front Leg (20)
with a 1" Tap Screw (80).
Press a 3" Round Inner Cap (78) into the top of the
Press Leg Lever (90).
Lubricate a 1/2" x 4" Bolt (68). Attach the Press Leg
Lever (90) to the Press Base (6) with the Bolt and a
1/2" Nylon Jamnut (36). Note: Do not over tighten
the Nylon Jamnut; the Press Leg Lever must be
able to pivot easily.
19. Insert two 2" Square Inner Caps (28) into the Leg
Lever (41).
Attach a Bumper (40) to the Butterfly Front Leg (3)
with a 1" Tap Screw (80).
Lubricate a 3/8" x 3" Bolt (88). Attach the Leg Lever
(41) to the Butterfly Front Leg (3) with the Bolt and
a 3/8" Nylon Jamnut (63). Note: Do not over tight-
en the Nylon Jamnut; the Leg Lever must pivot
easily.
CABLE ASSEMBLY
20.
IMPORTANT: While assembling the cables, do
not over tighten the bolts and nuts attaching
the pulleys. The pulleys must be able to turn
freely. Refer to the Cable ID Chart on page 26
for help identifying the cables.
Locate and open the parts bags labeled "CABLE
ASSEMBLY" and "PULLEYS."
Secure a 3/8" x 2 1/4" Bolt (79) to the Right Pivot
Arm (85) with a 3/8" Nylon Jamnut (63).
Locate the Butterfly Cable (73), which is the
shorter cable of the two that have loops on both
ends. Attach the Butterfly Cable to the 3/8" x 2 1/4"
Bolt (79) with a 3/8" Nylon Jamnut (63). Note: Do
not fully tighten the Nylon Jamnut; the Butterfly
Cable must be able to pivot easily.
21. Wrap the Butterfly Cable (73) over a "V"-Pulley
(27). Attach the "V"-Pulley and a Large Cable Trap
(32) to the bracket on the Butterfly Upright (1) with
a 3/8" x 2 1/2" Bolt (87) and a 3/8" Nylon Locknut
(50).
18
68
Lubricate
36
19
63
20
73
79
21
87
32
73
11
78
90
40
20
80
6
Lubricate 88
40
80
28
3
63
63
85
50
27
1
28
41
