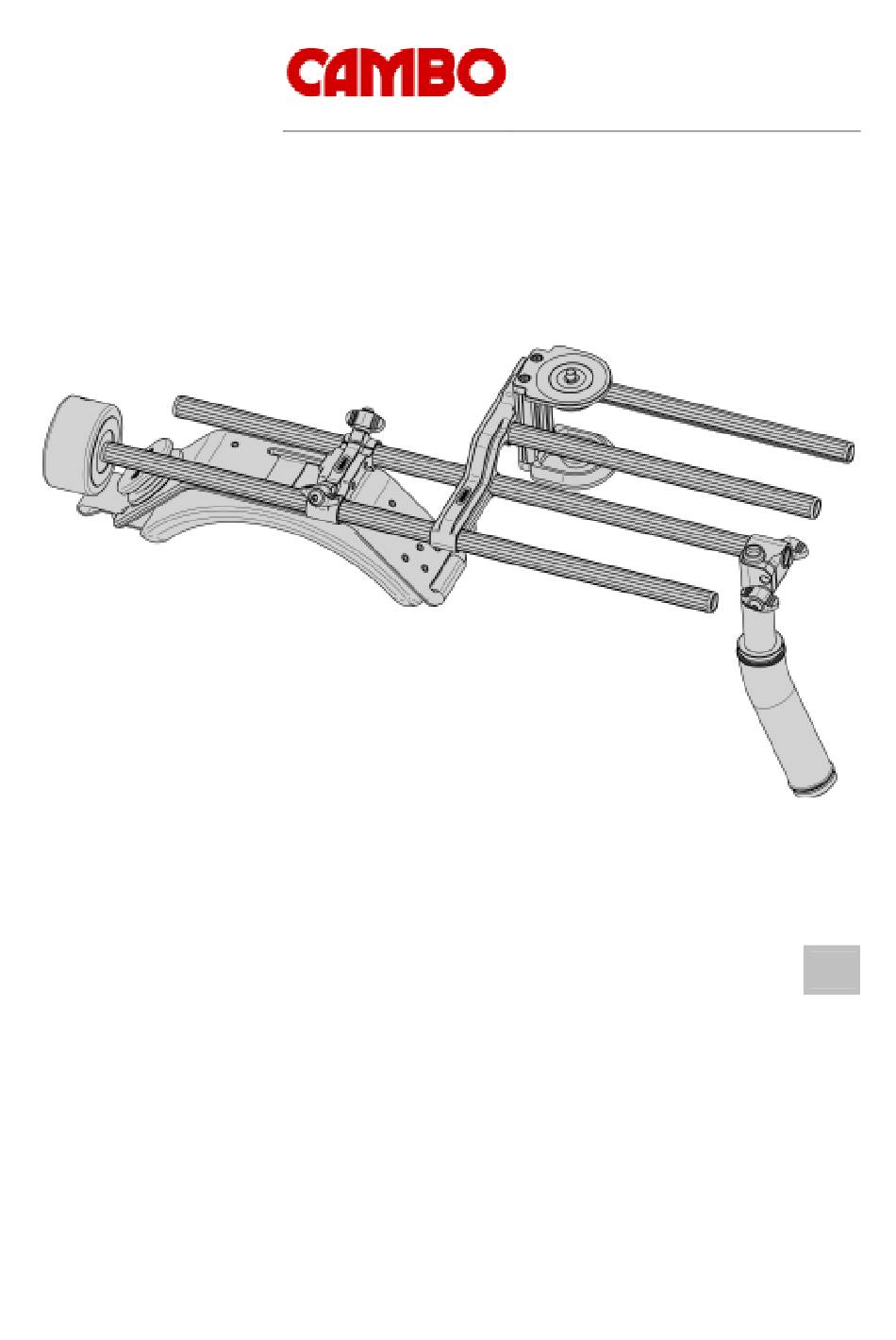

- Page 1 CS-ZODIAC HDSLR/DV SUPPORT SYSTEMS INSTRUCTION MANUAL Please read this manual carefully before using the Cambo CS rig! CAMBO | WHERE TRADITION MEETS VISION | MADE IN THE NETHERLANDS...
- Page 2 The 15mm light weight standard characteristics are: 15mm iris rods that are positioned 60mm apart and 85mm below the optical axis. Due to the modular character of the Cambo rig system, the user is fully in charge of customizing the rig to his or her personal preferences.
-
Page 3: Item Checklist
(includes the CS-151 clamp part) CS-1522 iris rods 250mm (2x), CS-M1 camera/tripod mount (1x), CS-150 offset clamp (1x) CS-1546 iris rods 460mm (2x), CS-P1 ergonomic pad (1x), CS-152 dual clamp (1x) CS-180 weight 0,8kg / 1,8lbs (1x) Instruction Manual CS-Zodiac... - Page 4 Overview CS-Zodiac rig CS-M1 Camera/tripod mount CS-151 Perpendicular 15mm rod clamp (Part of the CS-H1 assembly) CS-H1 Compact grip handle (As an assembled unit includes CS-151 part) CS-150 Offset bracket CS-152 Dual 15mm rod clamp CS-1546 Iris rod 460mm CS-1522...
- Page 5 CS-Zodiac rig adjustments Its advisable to use a tripod for the assembly of the CS-Zodiac rig. Its also advisable to use quick-release plates for the connection between the rig and camera and between rig and tripod. This ensures a quick decoupling of both rig and camera.

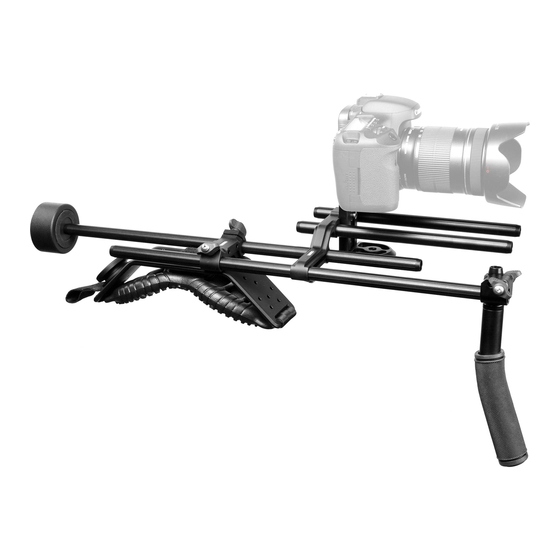

- Page 6 The image above shows the assembled CS-Zodiac rig. Using the counter weight (CS-180) ! ! ! ! WARNING: When you use the counterweight connected directly to the iris rod, always check that the weight is screwed on tight before using the rig.
- Page 7 Cambo CS system accessories The CS-15XX iris rods feature 3/8” sockets which can be used for mounting attachments. Name Function CS-155 iris rod connector To couple two CS-15XX iris rods CS-156 3/8” adapter To attach a 3/8” accessory CS-156 1/4” adapter To attach a 1/4”...
- Page 8 The CS-181 unit can be used to adjust the weight distribution of the CS-rig. The CS-M8 is a separate monitor/microphone/light stand which couples to the 15mm iris rod. The CS- H1 handle can be extended using a CS-155 connector and a CS-15XX iris rod. Instruction Manual CS-Zodiac...
- Page 9 CS-390 Spare Adhesive Frame for the CS-30 Loupe Cambo Photographic Industry B.V. / Cambo Video and Broadcast Products B.V. Cambo R&D 16-12-2010 This instruction manual is prepared with care, although no responsibility, financial or otherwise, is accepted for any consequences related the information stated in this instruction manual.
